Accessories for Thanos EVO room control unit
Product number: Z1500-102209
Manufacturer: Thermokon
Manufacturer product number: 660945
Weight: 0.1 kg
Min. order quantity: 1
Our benefits
- Purchase and advice from the LED expert
- Professional products from over 15 years of experience
- LED technology is our passion
- Free shipping for orders over €150 (DE)
Product information "Accessories for Thanos EVO room control unit"
Accessories for the Thanos EVO room operating unit
Here you can order optional accessories for the Thanos EVO room control unit.
The following accessories are available:

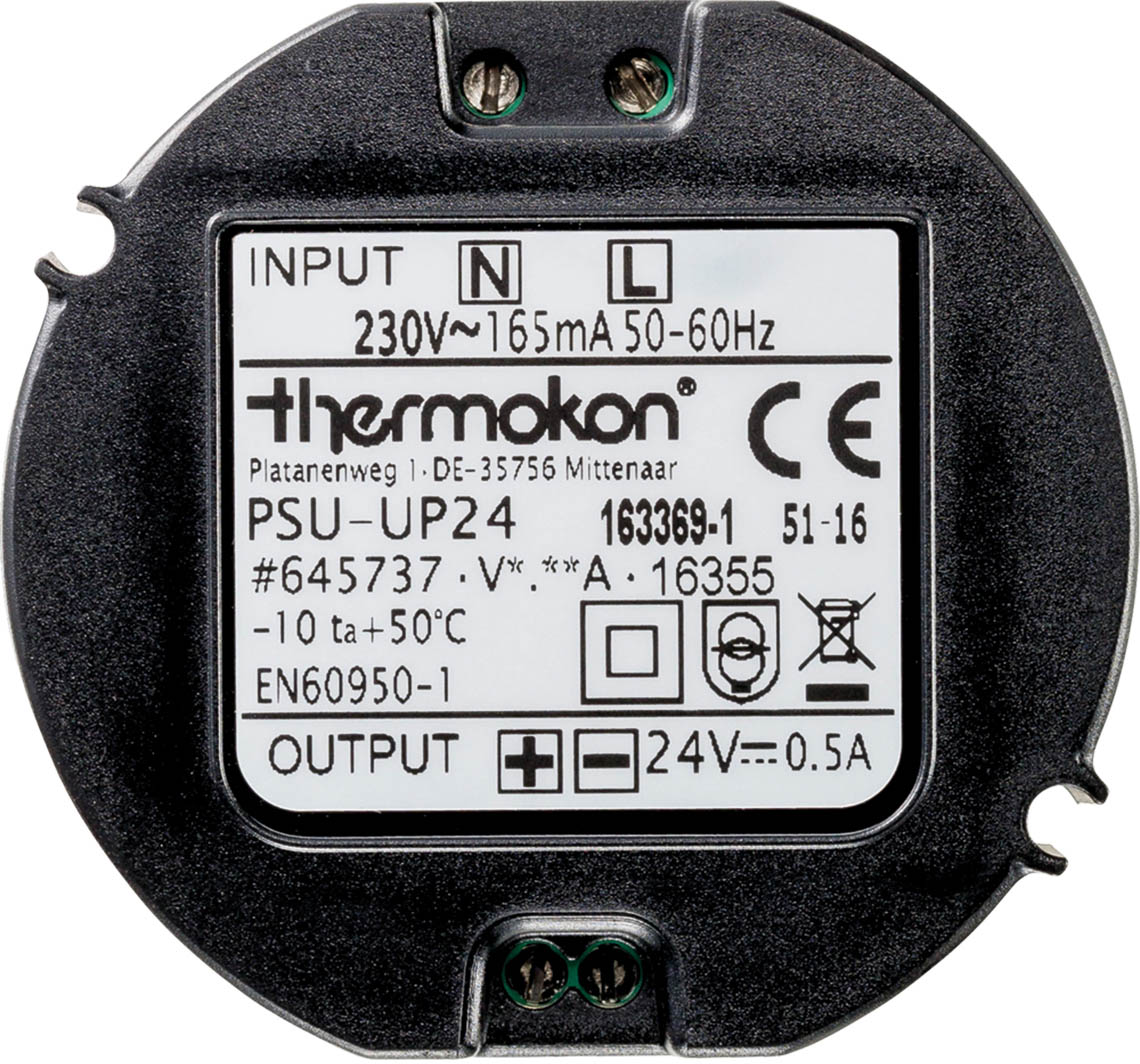

PSU-UP24 - flush-mounted power supply unit 24 V
| Typ | Accessories |
| Output Voltage | 24V = |
| Output Current | 0,5 A |
| temperature range (°C) | -10..+50 |
| Temperatur application range (°C) | -10..+50 |
| Operating range Humidity | max. 90% rH non-condensing |
| Power supply | 195..264 V ~ (49..61 Hz) |
| Colour | schwarz |
| Protection class | IP20, according to DIN EN 60529 |
| Mounting | Flush-mounted in standard flush-mounted box (Ø=60 mm, depth min. 45 mm) |
| Packaging Dimensions (mm) | 105 x 55 x40 |
| Packaging | Folding carton |
| Device Dimensions (mm) | 55 x 55 x 26 |

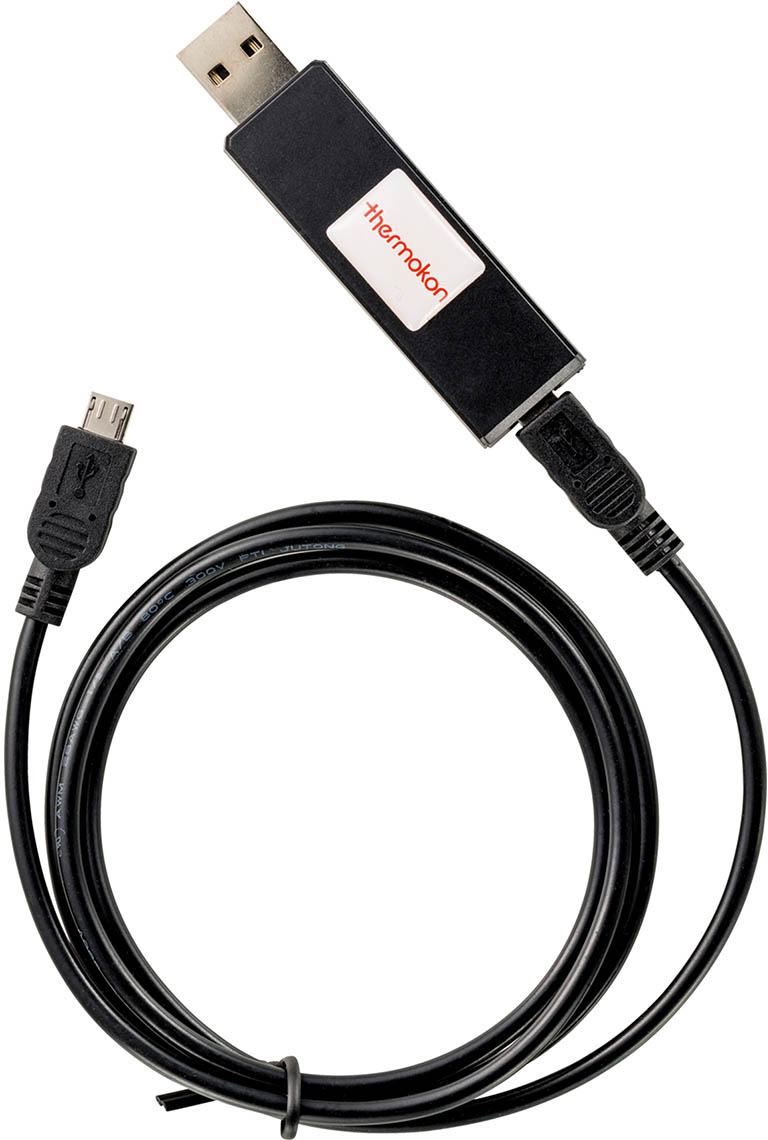

USB-Interface for Thanos EVO
| Type | Accessories |
| Application | Interface translation |
| Configuration | USEapp, uConfig |

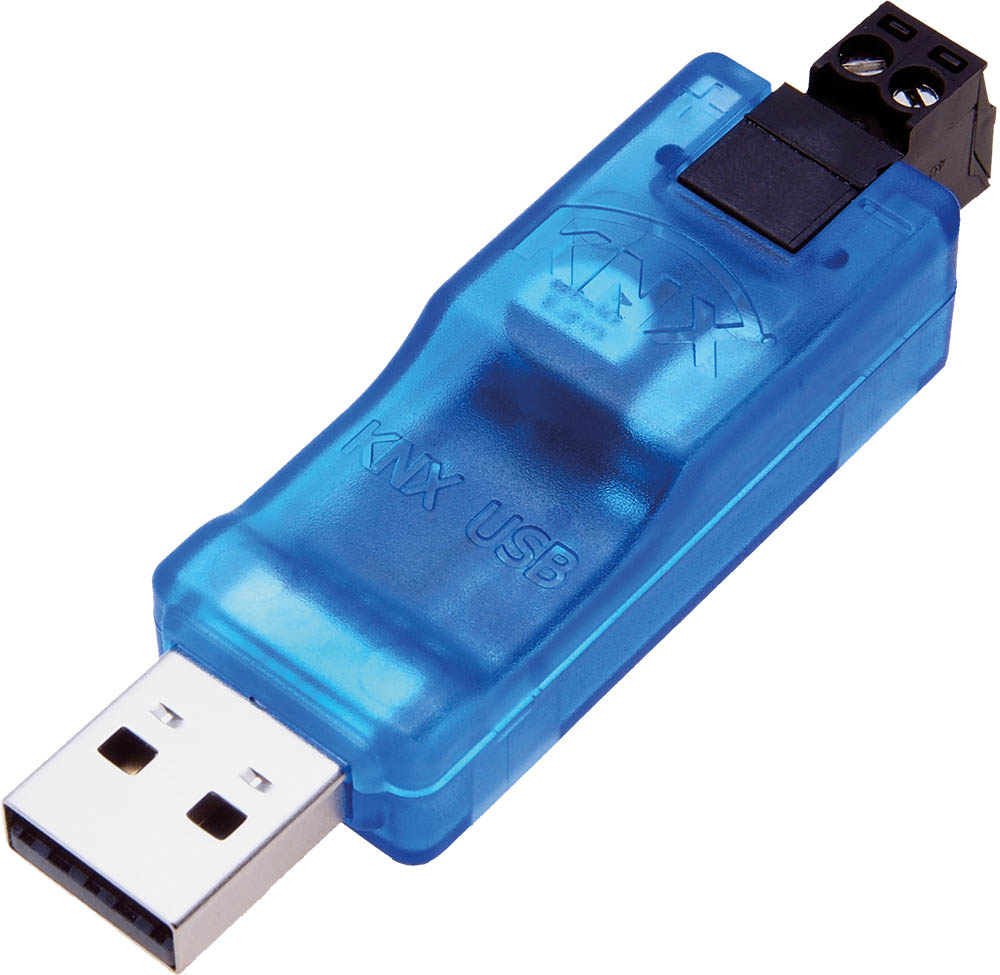

USB-Interface KNX
| Type | Accessories |
| Application | Interface Translation |
| Interface | KNX (TP) |
| Configuration | ETS (KNX) |
| Network technology | KNX (TP1) |
| Power supply | Supply via BUS, 29 V = SELV |
| Display | LED for status feedback, green, red |
| Housing | ABS |
| Colour | blau |
| Connection | BUS max. 1.5 mm², screw terminal, pluggable, USB A |

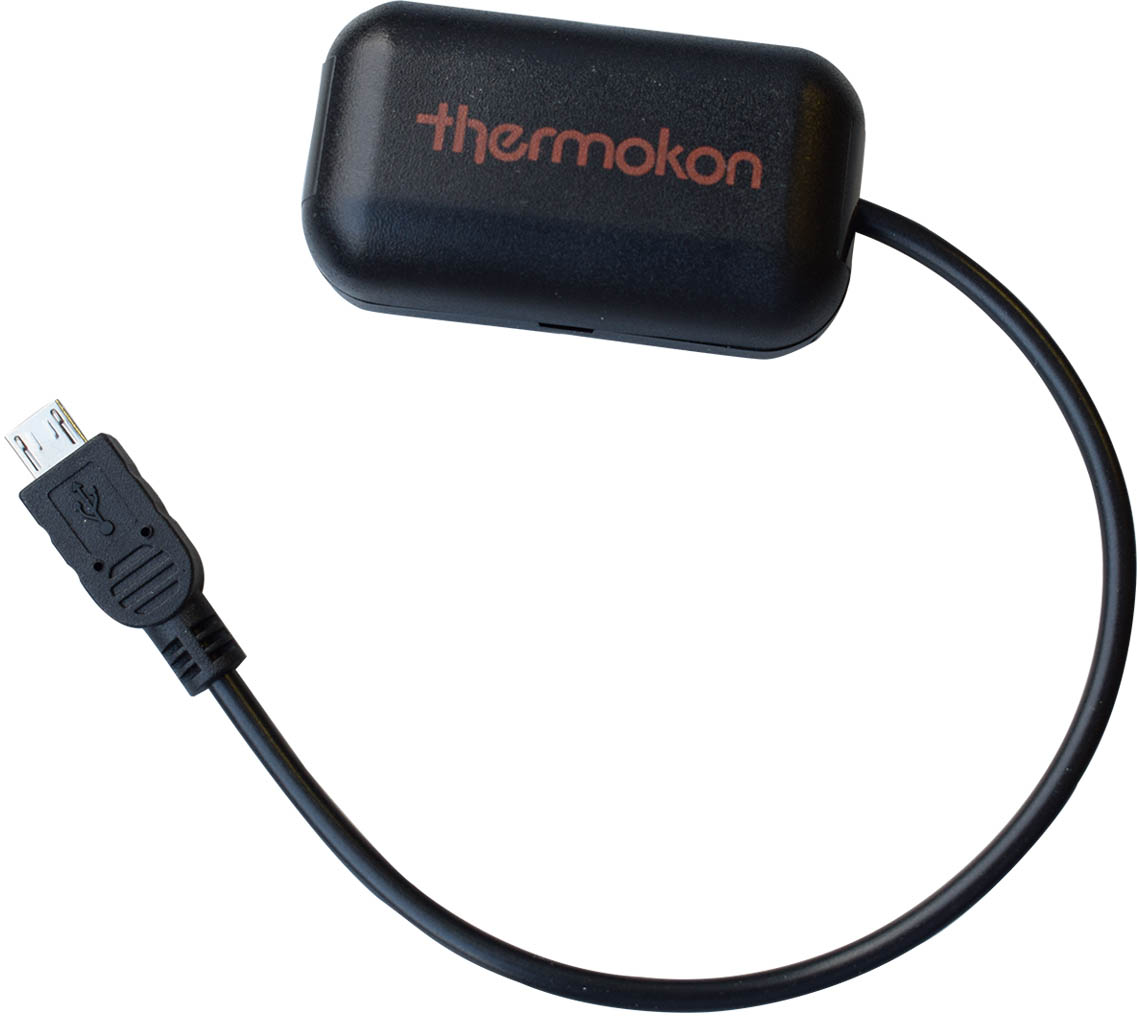

BLE-Dongle Micro-USB for Thanos EVO
| Type | Accessories |
| Application | Interface Translation |
| Interface | Bluetooth® Low Energy |
| Configuration | USEapp, uConfig |
For further information, please refer to the data sheets in the download tab.
