BILTON LED LLS-System Lineare Pure

Variants from 184.27€ *
Net price: 154.85€

Prices incl. VAT plus shipping costs

Please select a variant first



Beam angle:


  • 2506-1500 5PH-50W-90D
  • 29001401
  • 3.7 kg
  • 9009453011138
  • BILTON LEDON Technology GmbH
BILTON LLS Linear-Lighting-System Lineare Pure Plug-in System LEDON... more

BILTON LLS Linear-Lighting-System Lineare Pure Plug-in System

LEDON Kopernikus becomes BILTON Linear

An innovative and flexible plug-in System, specially developed for the Illumination of Industrial and Warehouse Halls.
Available in two different Lengths, various Performance Classes and with two Beam Angles.

Variations to LEDON LLS Kopernikus / BILTON Lineare Pure:

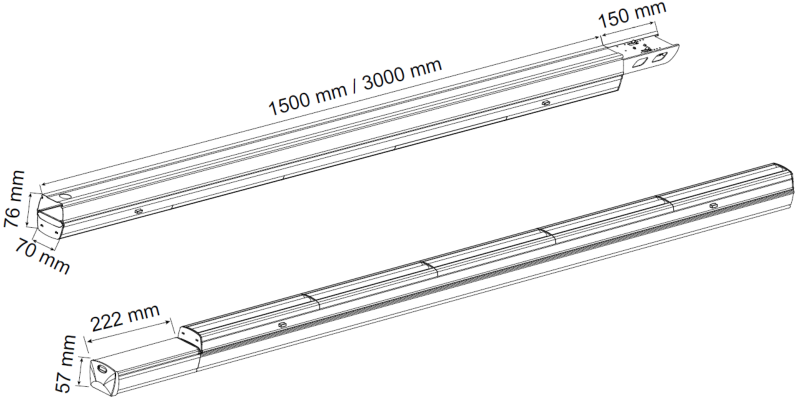

Article-Number Description Size    Power   Beam Angle Luminous Flux
29001400 LED LLS 1500 5PH 50W/60D/840 230 V 1500x70x76 mm 50 W 60° 7500 lm
29001401 LED LLS 1500 5PH 50W/90D/840 230 V 90°
29001402 LED LLS 1500 5PH 70W/60D/840 230 V 70 W 60° 10500 lm
29001403 LED LLS 1500 5PH 70W/90D/840 230 V 90°
29001404 LED LLS 1500 5PH 100W/60D/840 230 V  3000x70x76 mm 100 W 60° 15000 lm
29001405 LED LLS 1500 5PH 100W/90D/840 230 V 90°
29001406 LED LLS 1500 5PH 140W/60D/840 230 V 140 W 60° 21000 lm
29001407 LED LLS 1500 5PH 140W/90D/840 230 V 90°

Technical Features:

  • Efficiency >150lm/W
  • Lens for UGS <19by avaible (only for 60° Variations)
  • Excellent dimmabilty over integrated DALI Converter
  • Color Temperature 4000K
  • Color Rendering Index =80
  • Function 5-Phase


  • Components from reputable Manufacturers
  • Service life ca. 50.000 hours
  • CE certification and ERP-relevant long-term Tests reputable external Laboratories,also In-House Tests
  • Easy Maintenance
  • Elegant, slim Design


  • Versatile Application Options due to different Variations as well as blank Covers
  • Self-locking and simple plug Connectors
  • Easy Connection with screwless Clamps
  • Uniform end fitting over all luminare Types

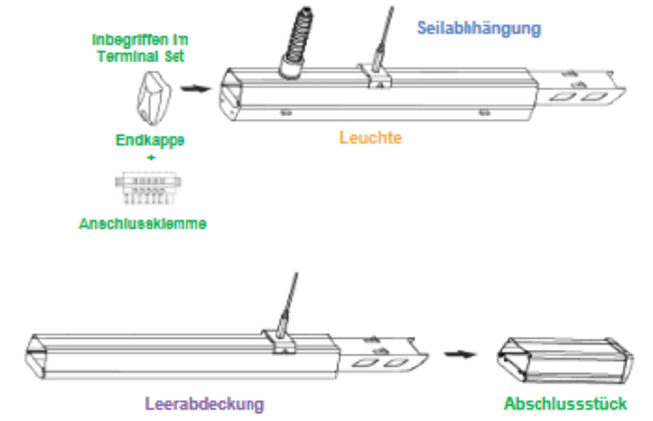

Order example linear lighting Kopernikus

Further Informations about BILTON LLS-System can be found in the PDF-Datasheet (Download Tab)

Related links to "BILTON LED LLS-System Lineare Pure"
Features/tags of this product family. Please refer about the details in the description or datasheet.
Verwendung/IP-Code: IP20 - IP44 (indoor)
Dimmbarkeit/Steuerung: DALI
Farbtemperatur/Lichtfarbe: 4000K
Installation LLS
Product-Flyer LLS
Installation Blind Cover

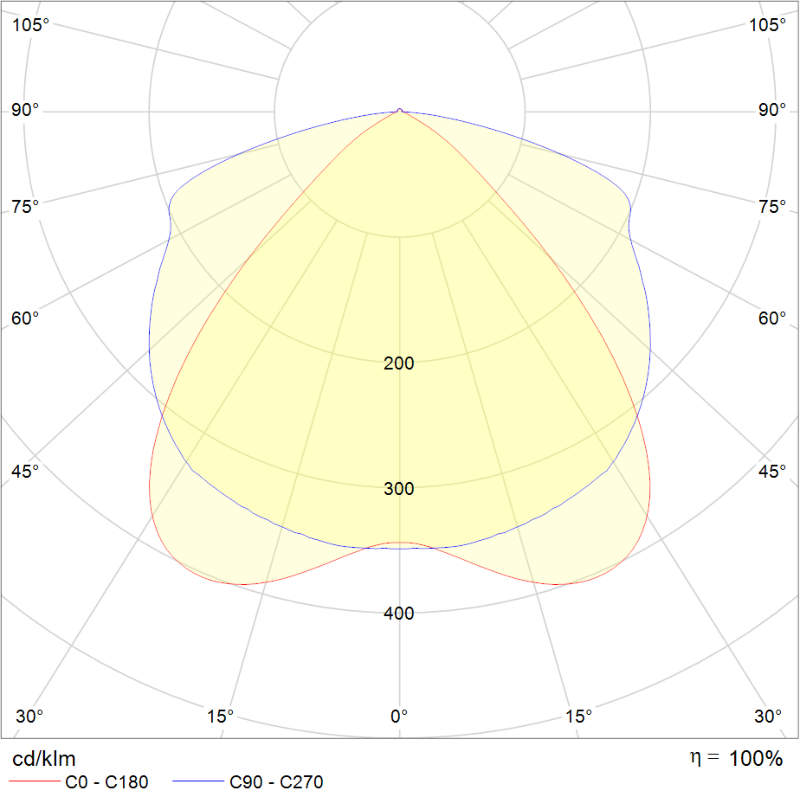

Light Data for 90° Versions (29001401, 29001403, 29001 405, 29001407)
60° Variations not avaible at Moment. Please Request Infos for Avaibility (29001400, 29001402, 29001404, 29001406)
Data-Sheet LLS
