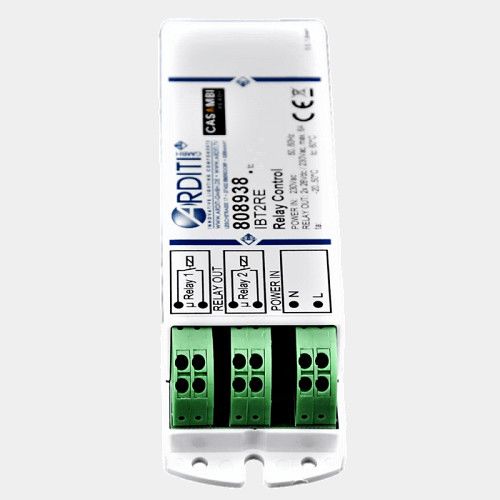

CASAMBI - radio Relay Control

Product information "CASAMBI - radio Relay Control "

CASAMBI - radio Relay Control of 2 loads



Product characteristics and features:

  • Controller to independently control 2 loads
  • Integrated antenna (drawing grey marking, do not cover with metal case)

Setup and operating instructions:

It is recommended to install the free CASAMBI app. It is available in both the "App Store" and the "Play Store". This offers you the following options:

  • Configuration of devices in networks
  • Creation of scenes and animations
  • Automatic detection of new devices
  • Intelligent timer and gallery functions
  • Protection settings of your network („just me“, „all“, „with password“,...)

Technical data:

Article number 808938
Type IBT2RE
Input voltage 230 Vac
Frequency 50..60 Hz
Signal input Bluetooth 4.0 lite @ smart device
Radio signal 2,4..2,483 GHz; 4 dBm
Max. switching capacity 2x 28Vdc / 250Vac, 6A
Ambient temperature (ta) -20..+50 °C
Rated max. temp. (tc) 60 °C
IP protection level 20

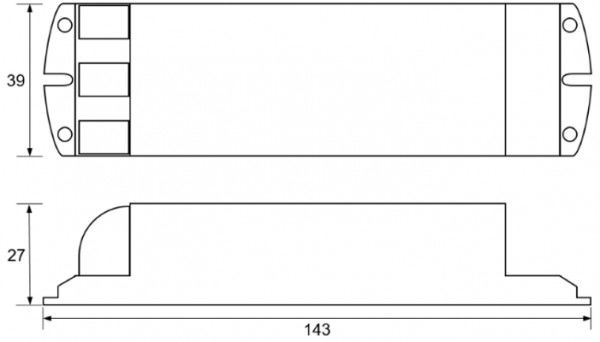

Dimensions 143 x 39 x 27 mm



QR code Bluetooth app for dimming for ios Casambi App im Appstore
Scan Code for Bluetooth dimm-app Casambi App für Android


Weitere Informationen entnehmen Sie bitte dem Datenblatt im Download-Tab.

Properties "CASAMBI - radio Relay Control "
·Application/IP-Code: IP20 - IP44 (Indoor)
·Dimmable/Control: BT4.0 (2,4 GHz), Casambi radio
Manufacturer "Arditi GmbH Lighting Components"

Arditi GmbH is a subsidiary of the Italian Arditi Spa near Bergamo. The range is broadly diversified and includes switches, dimmers, sockets, bases, wires, transformers and accessory. In the meantime, Arditi has made a name in the sector of LED-technology. The company offers LED-modules in various forms, transformers and drivers, as well as LED-suppliers.

Related links of the manufacturer

Data sheet 808938

DLC1
