DUAL SWITCHING ACTUATOR FOR UP-MOUNTING, CONTROLLABLE VIA CASAMBI
Arditis actuator with two independent relays (potential-free) can be easily controlled via the Casmabi app on your smartphone or tablet. It is ideally suited for loads especially with high inrush currents.
More details:

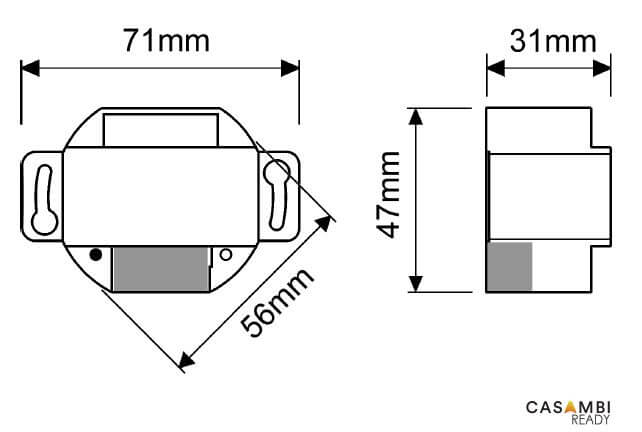

Integrated antenna (drawing: grey marking, do not cover with metal case)
Device built-in, flush mounted
With push key for functional test (push with voltage tester or similar) Repeated press:
Relay 1
Relay 2
Signal-LED
on
off
green
off
off
off
off
on
red
off
off
off
on
on
red+green
off
off
off
Technical Data:
Supply voltage
130..240 Vac
Frequency
50..60 Hz
Switched voltage
max. 240 Vac
Switched current
2x max. 16 A
Inrush current relay
max. 165 A 20 ms
Radio signal
2,4..2,483 GHz; 4 dBm
Ambient temperature(ta)
0..+50 °C
Max. Rated max. temp.(tc)
70 °C
Dimensions
71 x 47 x 31 mm
Take further data from our download-tab
