DALI RM8/RM16/RM16-DE/RM16-CEL Module for controlling a relay contact via the DALI bus... more

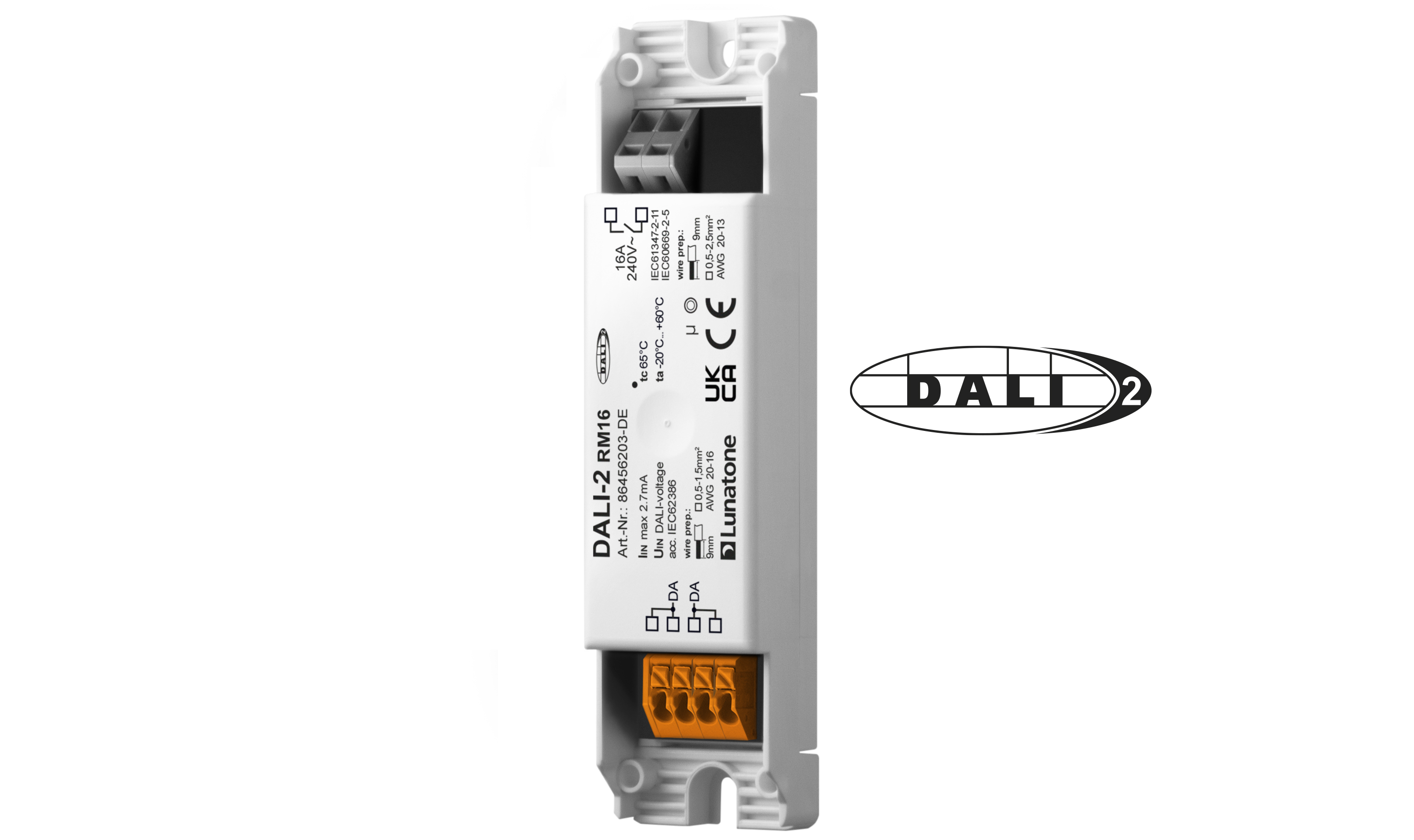

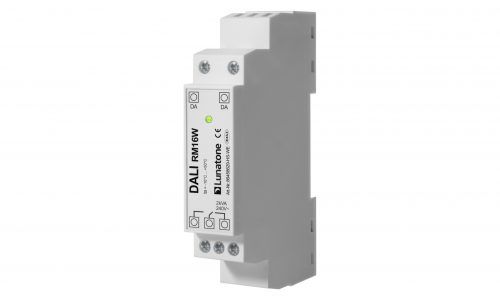

DALI RM8/RM16/RM16-DE/RM16-CEL

Module for controlling a relay contact via the DALI bus

DALI Relay Module RM8/16/16-DE/16-CEL provides a relay contact controllable via the DALI bus which can be used to switch constant loads of up to 1 or 2 kVA. DALI RM16 is particularly suited for high starting current peaks up to 160 A; it is equipped with a changeover contact which is used as a relay contact. The RM8 is suited for starting current peaks of up to 80 A; the relay contact is designed as a normally open contact.

A special feature of the switching actuator DALI Relay Module RM8/16/16-DE/16-CEL is that it maintains the switching status of the relay in the case of a bus supply failure. Any switch-on and/or switch-off delay can be programmed via the DALI bus. Thus, loads without DALI input can be incorporated in the DALI system.


Product features

  • Compact relay module for the direct control of 230 VAC loads via DALI
  • Simple incorporation of loads without DALI input into a DALI circuit; the loads can be switched on and off using DALI commands
  • Different variants available, suitable for your application requirements
  • Possibility of configuring switch-on and switch-off delays using the parameters FADE RATE and FADE TIME
  • DALI Cockpit is the DALI configuration tool of Lunatone which is available for free download; it can be used for configuration
  • DALI Relay Module RM 8/16/16-DE/16-CEL is supplied by the DALI bus; no further supply required
  • RM16 is particularly suitable for high starting current peaks up to 160 A
  • The interface represents a bus user and can be addressed accordingly

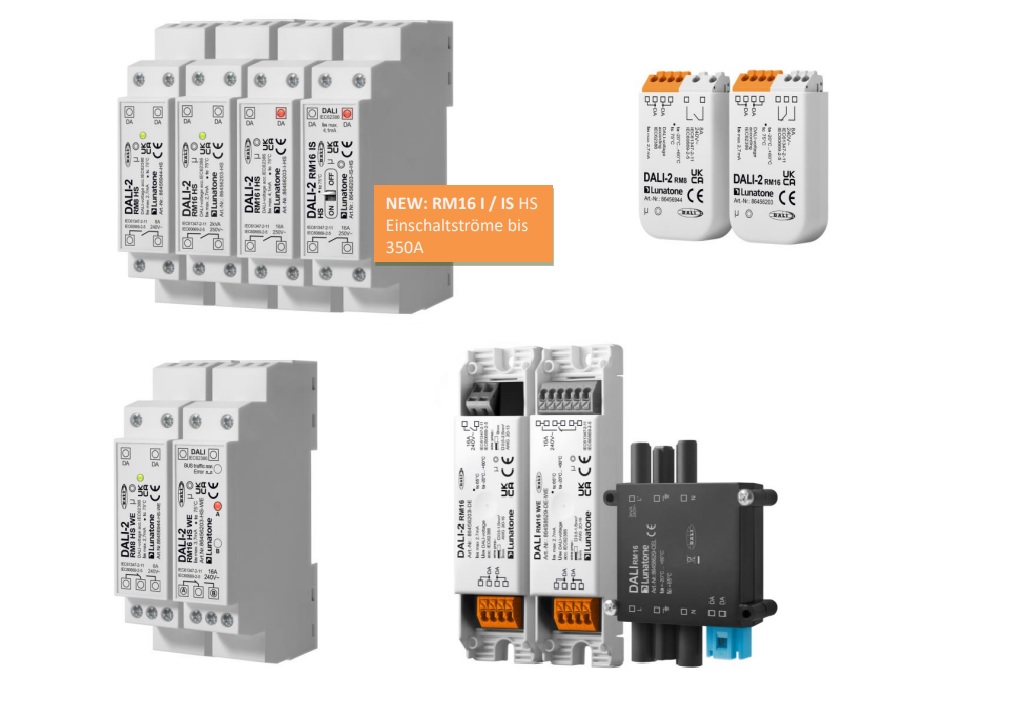

Available versions:

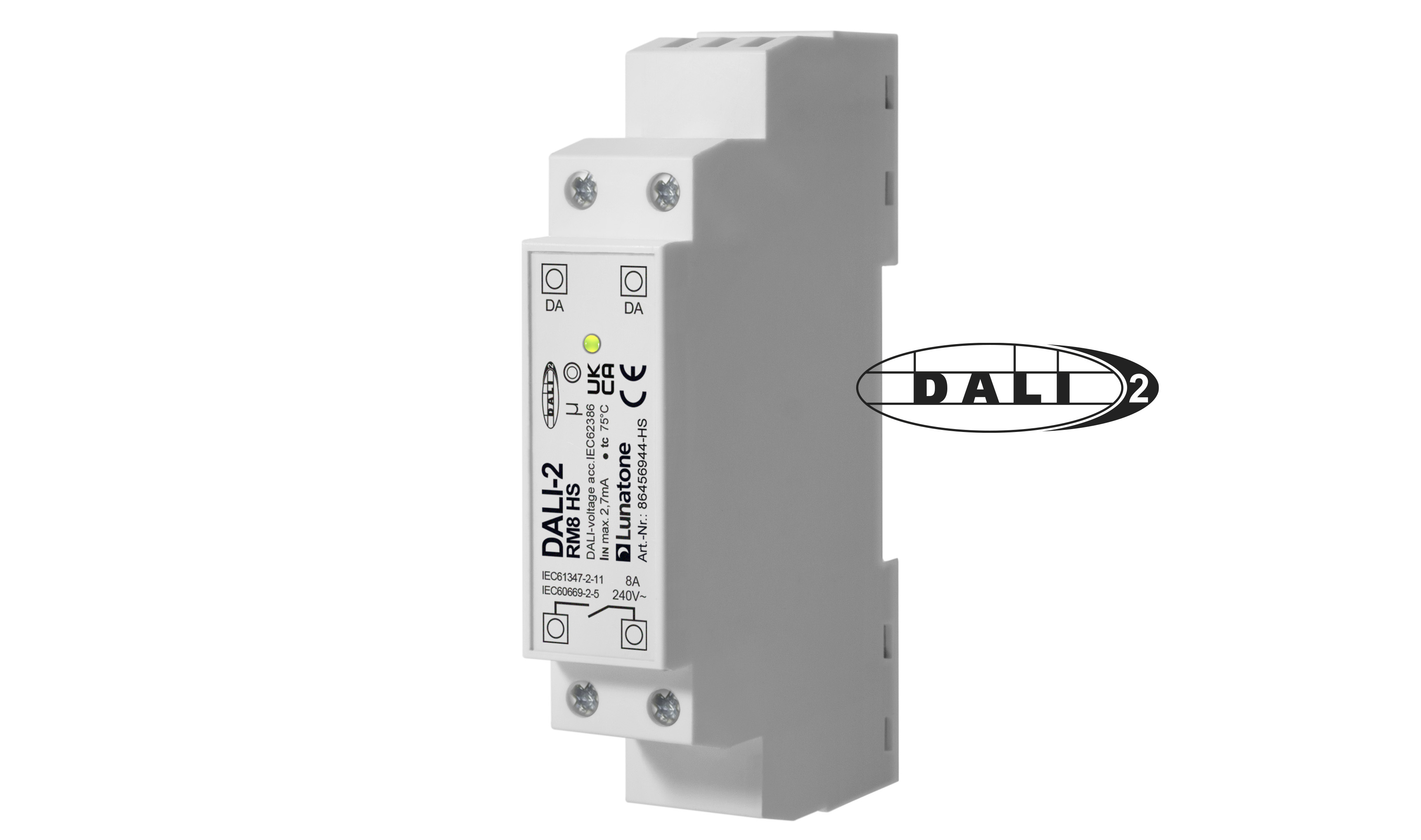

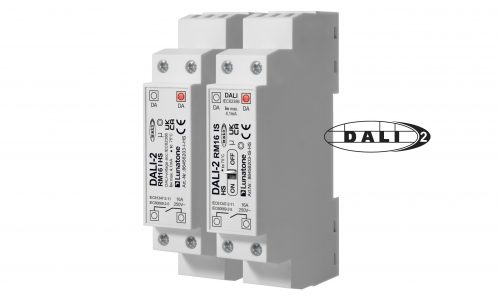

DALI RM16 for socket installation (manufacturer's number: 86458629) V-1605098
Maximum nominal load and nominal current: 1000VA / 8A
Maximum starting current peaks: 160A
Relay contact type: 1 changeover contact
Switching cycles at 8A/250VAC, resistive: 3x104

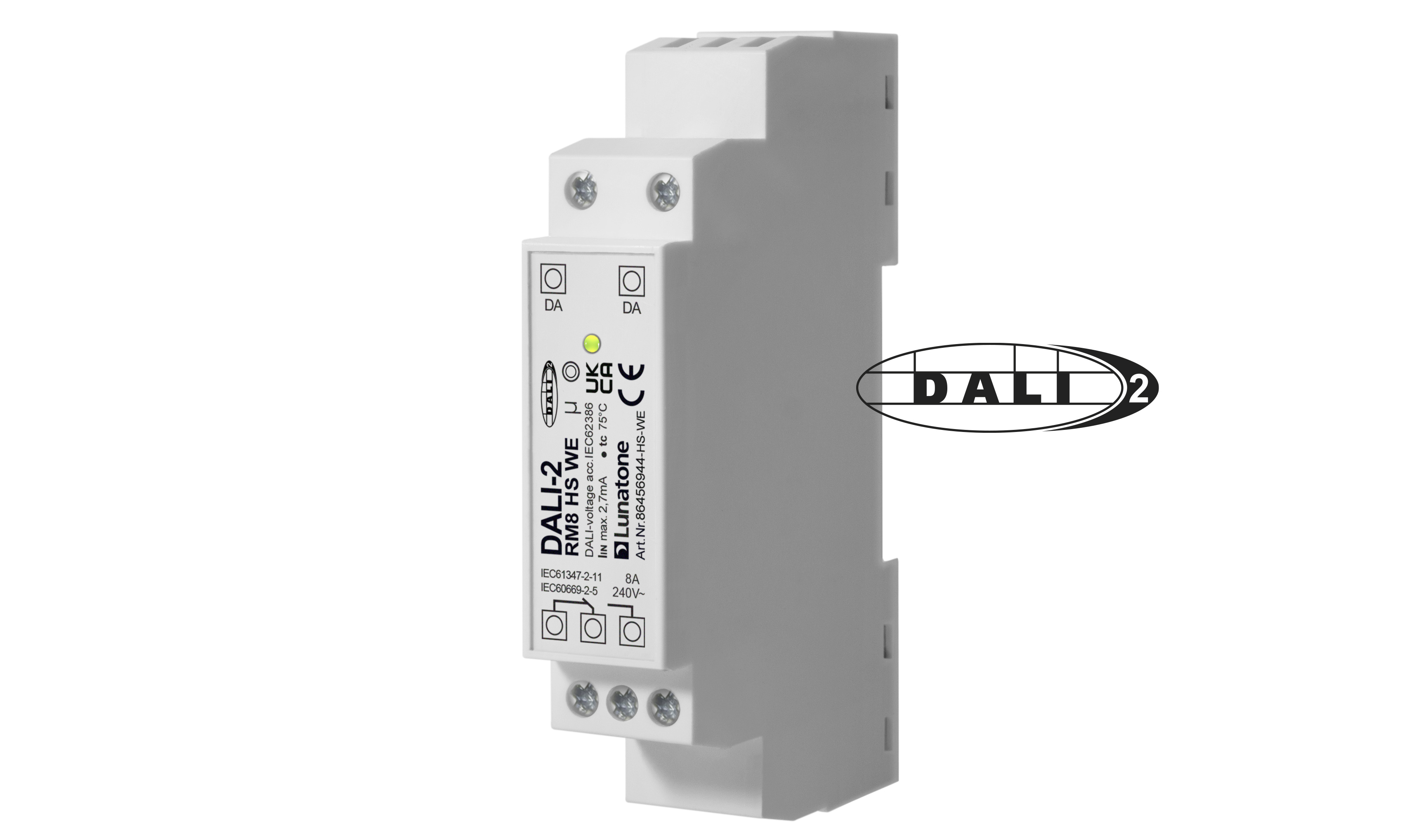

DALI RM8 for socket installation (manufacturer's number: 86458675) V-1605099
Maximum nominal load and nominal current: 1000VA / 8A
Maximum starting current peaks: 80A
Relay contact type: 1 normally open contact
Switching cycles at 8A/250VAC, resistive: 3x105

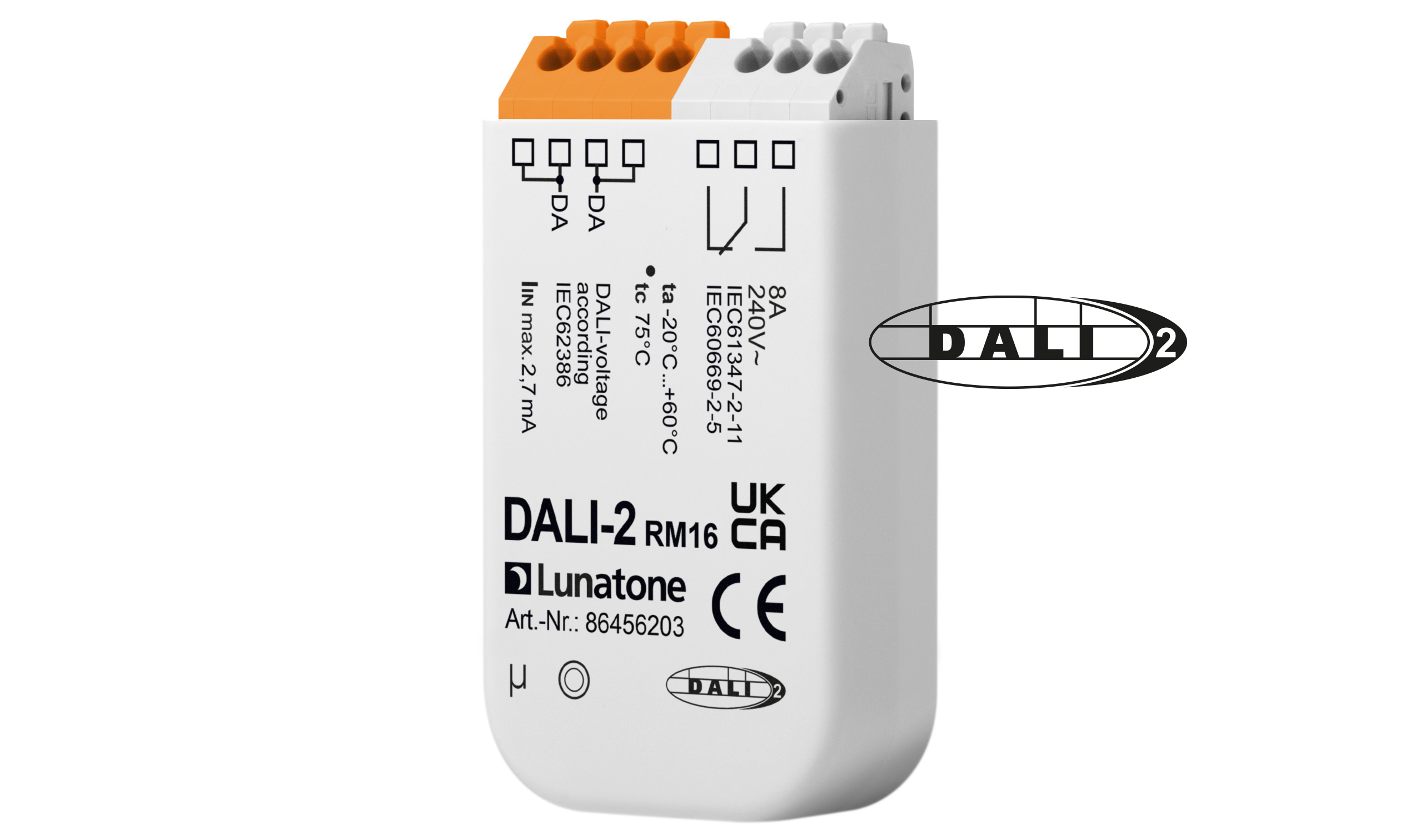

DALI RM16 for ceiling installation (manufacturer's number: 86458629-DE) V-1623447
Maximum nominal load and nominal current: 2000VA / 16A
Maximum starting current peaks: 160A
Relay contact type: 1 changeover contact
Switching cycles at 16A/250VAC, resistive: 3x104

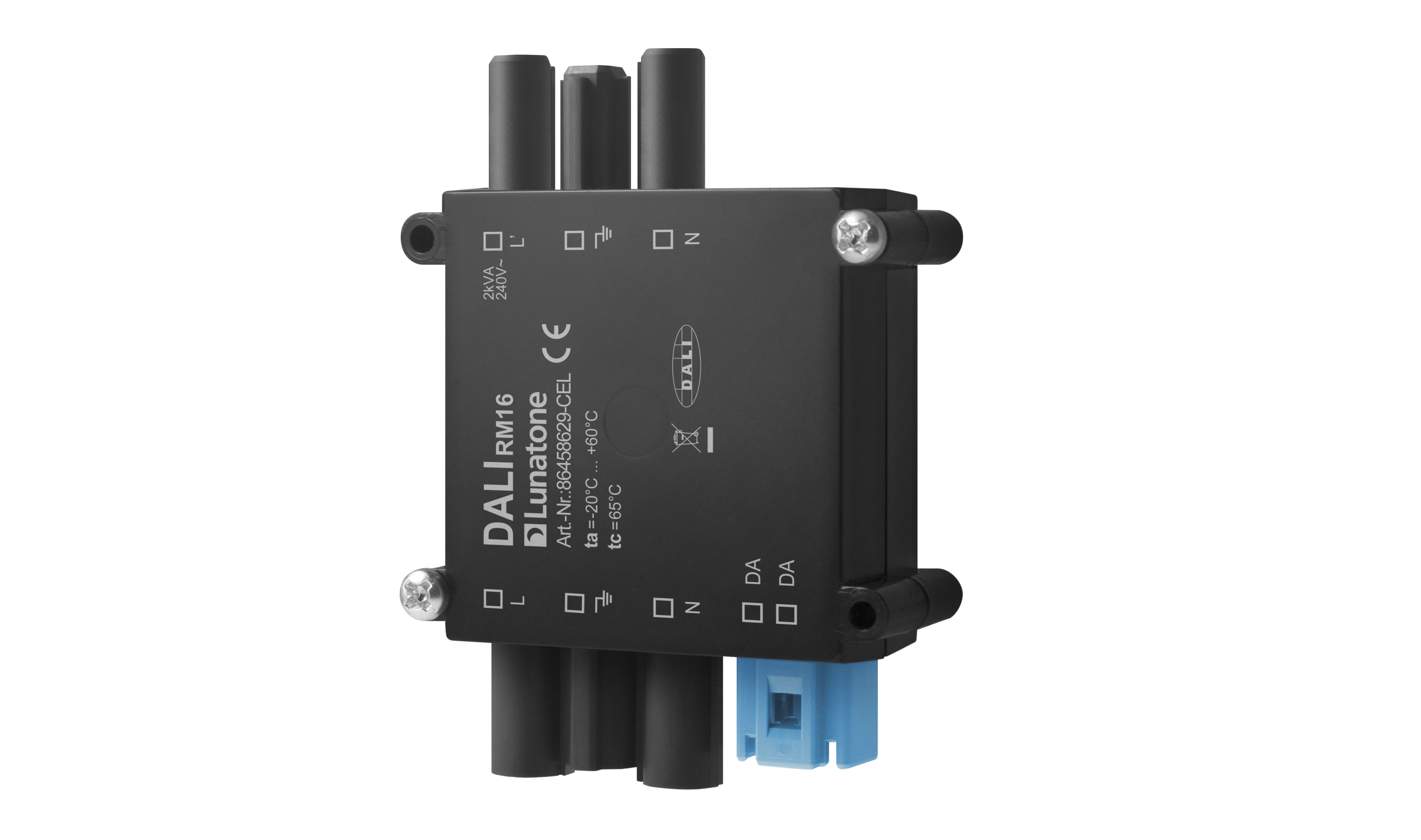

DALI RM16 with Wieland plug-in contacts (manufacturer's number: 86458629-CEL) V-1626583
Maximum nominal load and nominal current: 2000VA / 16A
Maximum starting current peaks: 160A
Relay contact type: 1 normally open contact
Switching cycles at 16A/250VAC, resistive: 3x104


Other technical data:

  • Power supply: via DALI-Bus
  • Typical current consumption: 2,7mA
  • Inputs: DALI
  • Used DALI addresses: 1
  • Switch-on / switch-off voltage relay contact: 250 VAC / 400 VAC
  • Maximum permissible switch frequency: 1Hz
  • Temperature: 0 °C - 45 °C
  • Protection class: IP20
  • Connecting wires profile: 0,5 - 1,5 mm2
Related links to "DALI Relay Module | 86458629 | 86458675"

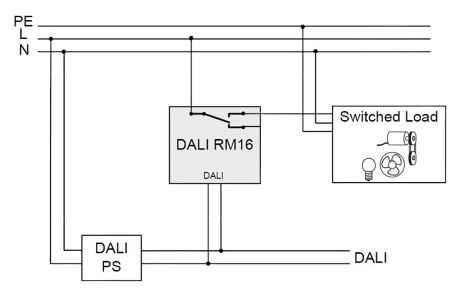

Controlling a DALI relay contact with loads up to 1/2 kVA (current peaks max. 80A/160A) more
Features/tags of this product family. Please refer about the details in the description or datasheet.
Application/IP-Code: IP20 - IP44 (Indoor)
Dimmable/Control: DALI
Datasheet RM8/16
