DALI control module Analog DALI 100 kOhm

39.52€ *
Net price: 33.21€

Prices incl. VAT plus shipping costs

Delivery time 3-5 workdays*


piece

Lunatone DALI control module Analog DALI 100 kOhm DALI control module with analog input for... more

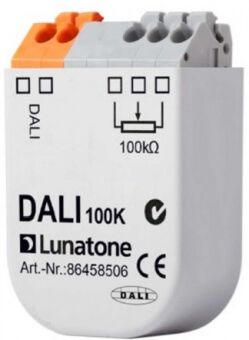

Lunatone DALI control module Analog DALI 100 kOhm

DALI control module with analog input for connecting a 100k potentiometer


With the DALI 100k, the luminaires in a DALI circuit can be controlled with a 100kOhm potentiometer.


Product characteristics:

  • Compact control module with analog input for direct connection of a 100k potentiometer
  • The input signal is directly converted into a DALI dimming value
  • The conversion can be triggered periodically or by a trigger
  • A change of the input signal (>2%) is used as the event trigger for the conversion
  • .
  • The dimming value can be sent to individual addresses, groups and broadcast
  • Configuration via DALI-Cockpit and DALI-USB Interface
  • Configuration via DALI-Cockpit and DALI-USB Interface
  • Multimaster capable, multiple modules can be installed in a DALI circuit
  • The module can be inserted in a flush-mounted box directly behind the potentiometer
  • The module is supplied directly via the DALI line


Technical data:

  • Supply: from DALI bus
  • Typical current consumption: <3 mA
  • Inputs: 100k Potentiometer
  • Output: DALI
  • Temperature: 0 °C - 50 °C
  • Protection class: IP20
  • Connecting wires Cross section: 0.5-1.5 mm2
  • max. cable length push-button module: 50 cm
  • Dimensions (L x W x H): 40 mm x 28 mm x 15 mm
Related links to "DALI control module Analog DALI 100 kOhm"
Analog control module to control the brightness of a DALI circuit with a 100kOhm potentiometer more
Features/tags of this product family. Please refer about the details in the description or datasheet.
Application/IP-Code: IP20 - IP44 (Indoor)
Dimmable/Control: DALI
Data sheet DALI 100k
