Casambi Push Button Interface | SC-TI-CAS

Product information "Casambi Push Button Interface | SC-TI-CAS"

Casambi Push Button Interface for flush box

This Casambi push button interface SC-TI-CAS can be easily installed behind any push button to send Bluetooth signal to the Casambi network. As known from the Casambi Xpress the Casambi push button interface can be setup by Casambi app and controls according the programmed buttons (1-4) the whole network.
After installation, just start the app and the Casambi Push Button interface pops up in the app and can be configured very simple. In case the details are described in manual.

Everybody who disliked the controlling by switching sequences or wants to have unique design for wallswitches, this Casambi switching interface is the ultimate solution.

Technical Data of Casambi Push Button Interface SC-TI-CAS

Power supply

230VAC, 50Hz

Power consumption

max. 10mA

Cable length of button connections

max. 30cm

Ambient temperature

0 - 55°C

Applied standards

DIN EN 60669-2-1
ETSI EN 301 489-1 v.1.9.2
ETSI EN 301 489-17 v.2.2.1
ETSI EN 300 328 v.1.8.1
NOTE!
The connected pushbuttons and their wiring must be insulated for the maximum supply voltage of the push button interface and ensure the appropriate contact protection after proper installation.



Dimensions

Ø 53mm x 21mm
Properties "Casambi Push Button Interface | SC-TI-CAS"
·Application/IP-Code: IP20 - IP44 (Indoor)
·Dimmable/Control: BT4.0 (2,4 GHz), Casambi radio
Manufacturer "Scemtec GmbH"
Scemtec ist ein seit über 25 Jahren überregional tätiger Dienstleister im Bereich des Electronic Manufacturing Service (EMS) und bietet neben reiner Lohnbestückung auch die Entwicklung und Fertigung kundenspezifischer elektronischer Baugruppen an. Zusätzlich leistet Scemtec dazu je nach Kundenwunsch die vollständige Beschaffung der Komponenten, Fertigung, Prüfung und Montage sowie auch After Sales Services.
Related links of the manufacturer

Casambi pushbutton modul
Anleitung Inbetriebnahme

3 of 3 reviews

4.33 out of 5 stars


33%

67%

0%

0%

0%


Leave a review!

Share your experiences with other customers.


From: Martin

9 January 2023 07:51

n/a

From: Vladimirs

13 August 2022 15:18

n/a

From: Vladimirs

21 August 2022 11:13

n/a

Similar Products

Lampenfassung E27 mit Casambi Funk
E27 socket with wireless module side
E27 socket with integrated Casambi wireless modul (TED) inside.To pimp up your luminaire just change the socket.
Product number: 246
Structural shape

€72.53*
Casambi Bluetooth 1-10V Dimmer
Casambi Module light control via app 1-10V
Casambi Module
Lighting control via App for 1-10V driver
Product number: 800589

€74.90*

delivery time 3-5 Working days*

Casambi Bluetooth Produktbild
Casambi DALI - CBU-ASD Modul
Casambi 2,4 GHz Unit CBU-ASD for DALI devices
Product number: 488
Version
+8

€65.10*
%
CBU-TED Casambi Phasenabschnitt Dimmer
CBU-TED Casambi Dimmer via phasecut
Casambi Dimmer
Phasecut-dimming DBU-TED actuate with BT 4.0 (2,4 GHz) to dimming lights.
Product number: 800838

€60.06* €66.73* (10% saved)
Casambi Xpress Schalter
Casambi Xpress -Wall Switch and Bluetooth transmitter
Casambi Xpress Wall switch and Bluetooth transmitter
Product number: 645
Surface

€158.09*

delivery time 3-5 Working days*

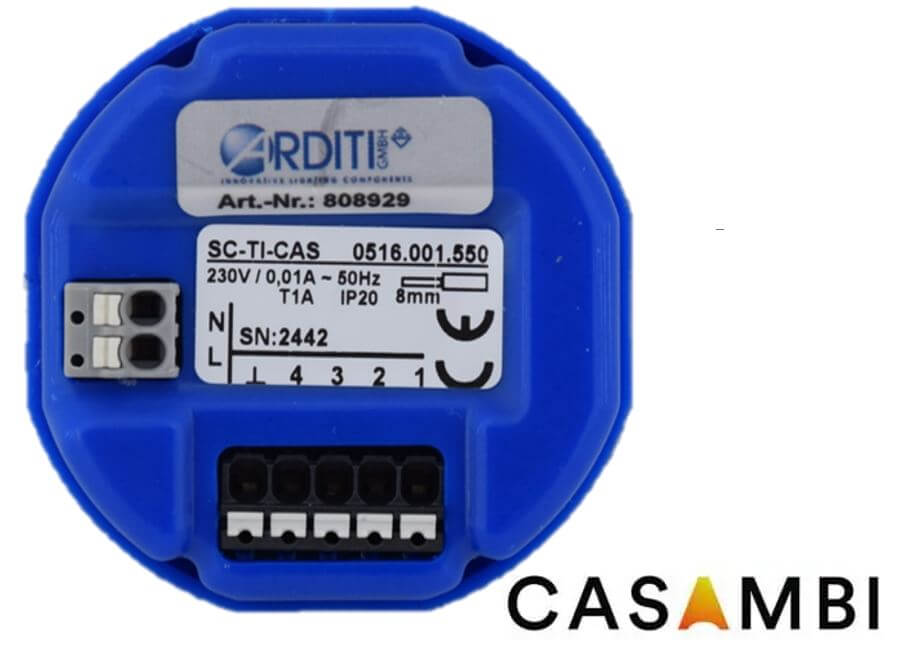

Casambi Tasterinterface mit 4 frei programmierbaren Tastern/Schließer
