PWM-60 Output LED Supply for LED-Stripes

Variants from 33.56€ *
Net price: 28.20€

Prices incl. VAT plus shipping costs

Please select a variant first

Version:

Voltage:


piece

  • PWM-60-12-3
  • PWM-60-12
  • 0.49 kg
  • MEAN WELL
Meanwell PWM-60 LED-Powersupply for perfect dimming of LED-Stripes PWM-60 series is a 60W... more

Meanwell PWM-60 LED-Powersupply for perfect dimming of LED-Stripes

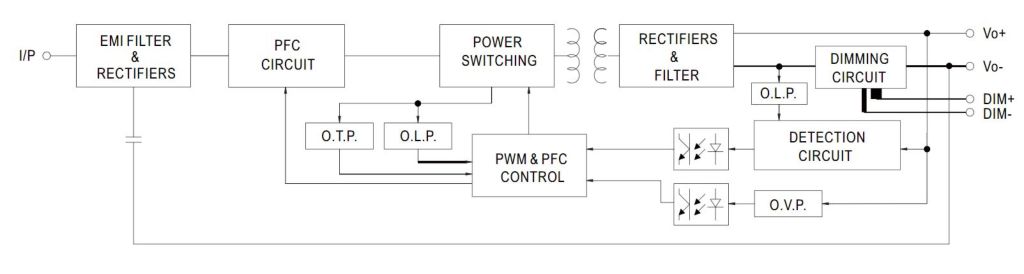

PWM-60 series is a 60W AC/DC LED driver featuring the constant voltage mode with PWM style output, which is able to maintain the color temperature and the brightness homogeneity when driving all kinds of LED strips. PWM 60 operates from 90~305VAC and offers models with different rated voltage ranging between 12V and 48V. Thanks to the high efficiency up to 90%, with the fanless design, the entire series is able to operate for -40 °C ~ +85 °C case temperature under free air convection. The entire series is rated with IP67 ingress protection level and is suitable to work for dry, damp or wet locations. PWM60 is equipped with dimming function that varies the duty cycle of the output, providing great flexibility for LED strips applications.


This Meanwell PMW power supply is available as Casambi bluetooth compatible.

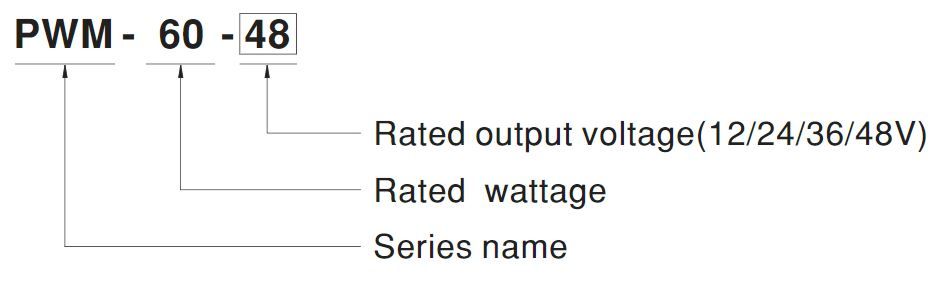

Model Encoding:
Model Encoding P WM 60
Features of PWM60 from Meanwell

  • Constant voltage PWM style output with frequency 1.47kHz
  • Plastic housing with class II design
  • Built-in active PFC function
  • No load power consumption <0.5w / standby power consumption <0.5W(DA-type)
  • Fully encapsulated with IP67 level
  • Function options: 3 in 1 dimming (dim-to-off); DALI
  • Typical lifetime>50000 hours
  • 5 years warranty

Applications

  • LED strip lighting
  • Indoor LED lighting
  • LED decorative lighting
  • LED architecture lighting
  • Type "HL" for use in class I, division 2 hazardous (classified) location.

Technical data:

 Input  90 - 305 VAC / 127 - 431 VDC 47 - 63 Hz
 Output  Depending on type, see data sheet
 Rated Power  60W - 60,12W
 Series  PWM
 Typical lifetime  >50.000h

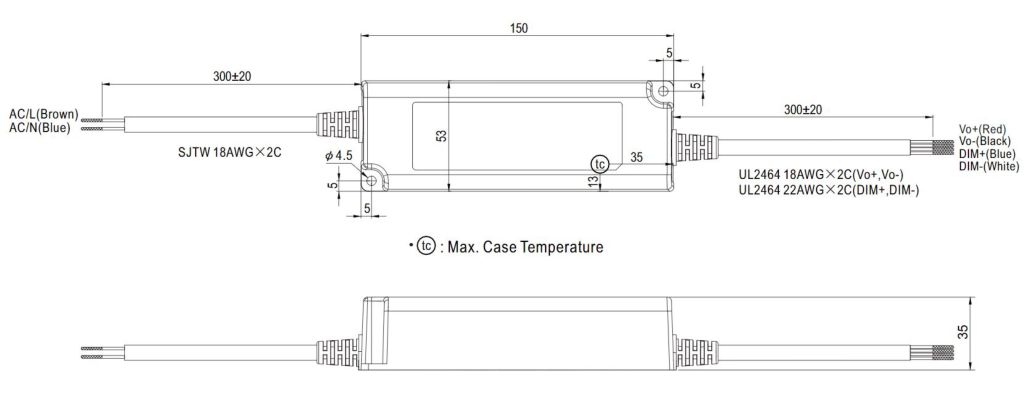

 Dimensions ( L x W x H)  150 x 53 x 35mm


For further technical data, please refer to the data sheet (in tab "DOWNLOADS").
On request, we also offer type and voltage ranges.

Related links to "PWM-60 Output LED Supply for LED-Stripes"
Meanwell Power Supply with PWM-Control Perfect dimming of LED-Stripes with PWM. more
Features/tags of this product family. Please refer about the details in the description or datasheet.
Constant Voltage: 12V, 24V
Application/IP-Code: IP65/67 (Outdoor)
Power range: 20 - 50 W, 50 - 100 W
Dimmable/Control: 1..10V, DALI, DALI2, KNX, PWM
Datasheet PWM-60
Data sheet for PWM-60-KNX
Read, write and discuss reviews... more
Customer evaluation for "PWM-60 Output LED Supply for LED-Stripes"
28 Jan 2022

29 Jul 2021

25 Jul 2021

29 May 2021

sehr gutes Netzteil, Dimmung ohne Probleme

2 May 2020

Danke für die Empfehlung zum Betrieb von Ledstrips

hatte bisher die hlg und elg Serie im Einsatz.. immer das problem mit der lastabhängigen Dimmung. hier bei den PWM-Typen ist das nicht mehr. Gibt es die bald auch für höhere Leistung größer 200W.
