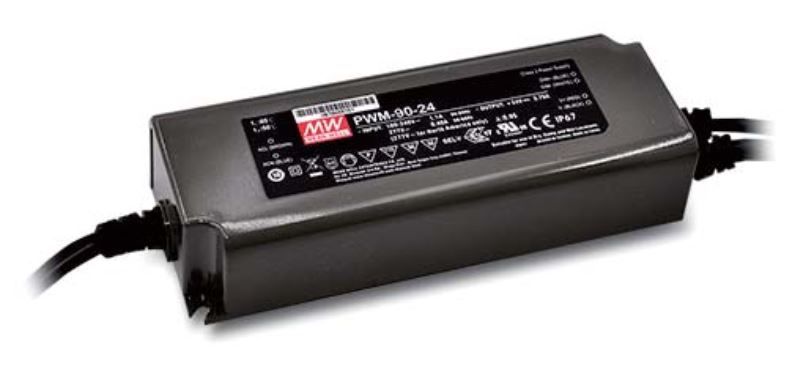

PWM-90 Output LED Supply for LED-Stripes

Variants from 41.41€ *
Net price: 34.80€

Prices incl. VAT plus shipping costs

Please select a variant first

Voltage:

Type:


piece

  • PWM-90-12-Blank
  • PWM-90-12
  • 0.77 kg
  • MEAN WELL
LED-Powersupply for perfect dimming of LED-Stripes PWM-90 series is a 90W AC/DC LED driver... more

LED-Powersupply for perfect dimming of LED-Stripes

PWM-90 series is a 90W AC/DC LED driver featuring the constant voltage mode with PWM style output, which is able to maintain the color temperature and the brightness homogeneity when driving all kinds of LED strips. PWM 90 operates from 90~305VAC and offers models with different rated voltage ranging between 12V and 48V. Thanks to the high efficiency up to 90,5%, with the fanless design, the entire series is able to operate for -40 °C ~ +85 °C case temperature under free air convection. The entire series is rated with IP67 ingress protection level and is suitable to work for dry, damp or wet locations. PWM90 is equipped with dimming function that varies the duty cycle of the output, providing great flexibility for LED strips applications.

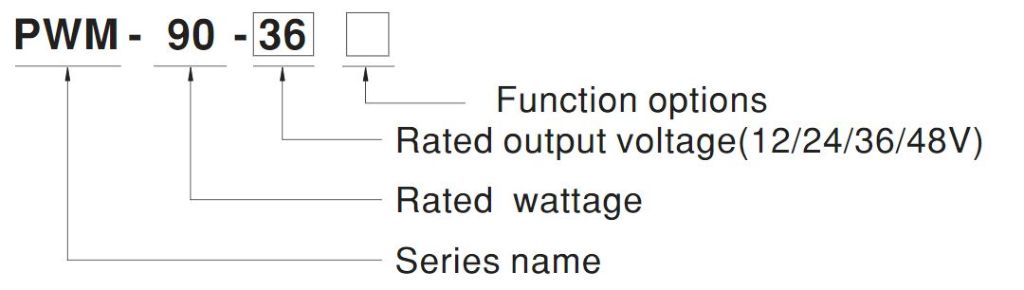

Model Encoding:
Model Encoding P WM-90

Features of PWM-90 from Meanwell

  • Constant voltage PWM style output with frequency 1.47kHz
  • Plastic housing with class II design
  • Built-in active PFC function
  • No load power consumption <0.5w / standby power consumption <0.5W(DA-type)
  • Fully encapsulated with IP67 level
  • Function options: 3 in 1 dimming (dim-to-off); DALI
  • Typical lifetime>50000 hours
  • 5 years warranty

Applications

  • LED strip lighting
  • Indoor LED lighting
  • LED decorative lighting
  • LED architecture lighting
  • Type "HL" for use in class I, division 2 hazardous (classified) location.

Technical data:

 Input  90 - 305 VAC / 127 - 431 VDC 47 - 63 Hz
 Output  Depending on type, see data sheet
 Rated Power  90W - 90,24W
 Series  PWM
 Typical lifetime  >50.000h

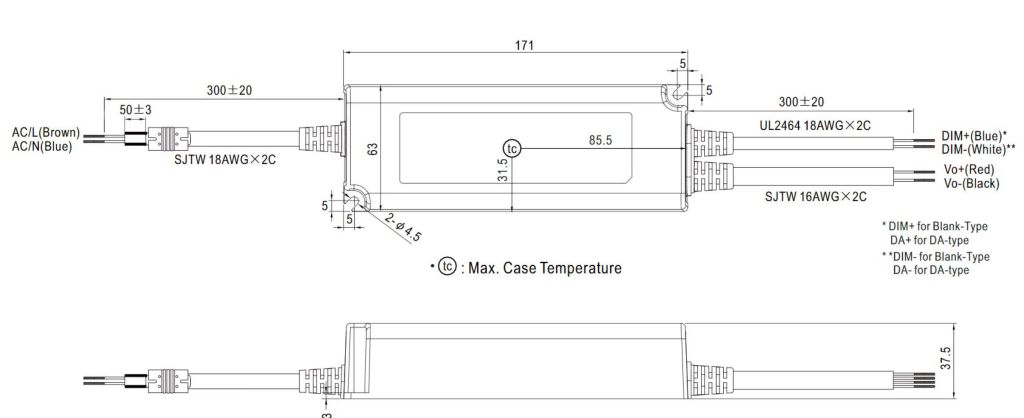

 Dimensions ( L x W x H)  171 x 63 x 37.5mm

For further technical data, please refer to the data sheet (in tab "DOWNLOADS").
On request, we also offer type and voltage ranges.
Related links to "PWM-90 Output LED Supply for LED-Stripes"
Meanwell Power Supply with PWM-Control Perfect dimming of LED-Stripes with PWM. more
Features/tags of this product family. Please refer about the details in the description or datasheet.
Constant Voltage: 12V, 24V
Application/IP-Code: IP65/67 (Outdoor)
Power: 50 - 100 W
Dimmable/Control: 1..10V, DALI, DALI2, PWM
Read, write and discuss reviews... more
Customer evaluation for "PWM-90 Output LED Supply for LED-Stripes"
29 Jul 2021

26 Feb 2021

2 May 2020

das richtig für ledstrips

hatte bisher die hlg und elg Serie im Einsatz.. immer das problem mit der lastabhängigen Dimmung. hier bei den PWM-Typen ist das nicht mehr. Gibt es die bald auch für höhere Leistung größer 200W.

Write an evaluation
Evaluations will be activated after verification.
I have read and understood the Privacy policy.

The fields marked with * are required.

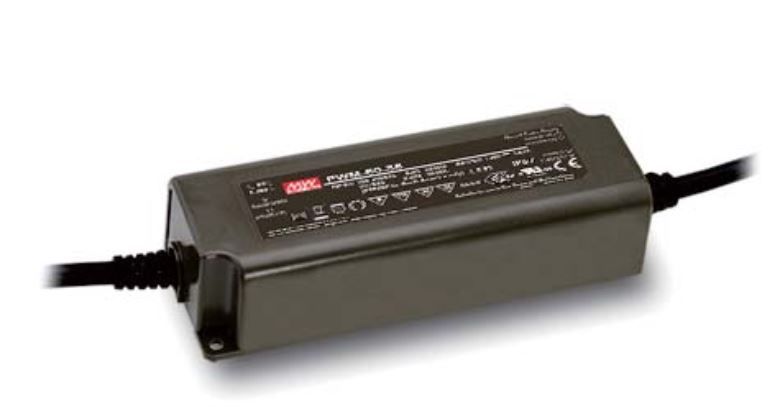

PWM-60 power supply PWM-60 Output LED Supply for LED-Stripes
Variants from 29.63€ *
Order number: PWM-60-12-Blank

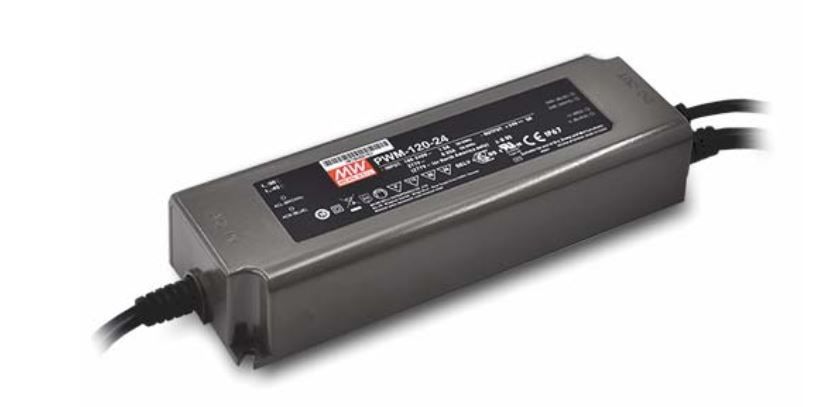

PWM-120 power supply PWM-120 Output LED Supply for LED-Stripes
