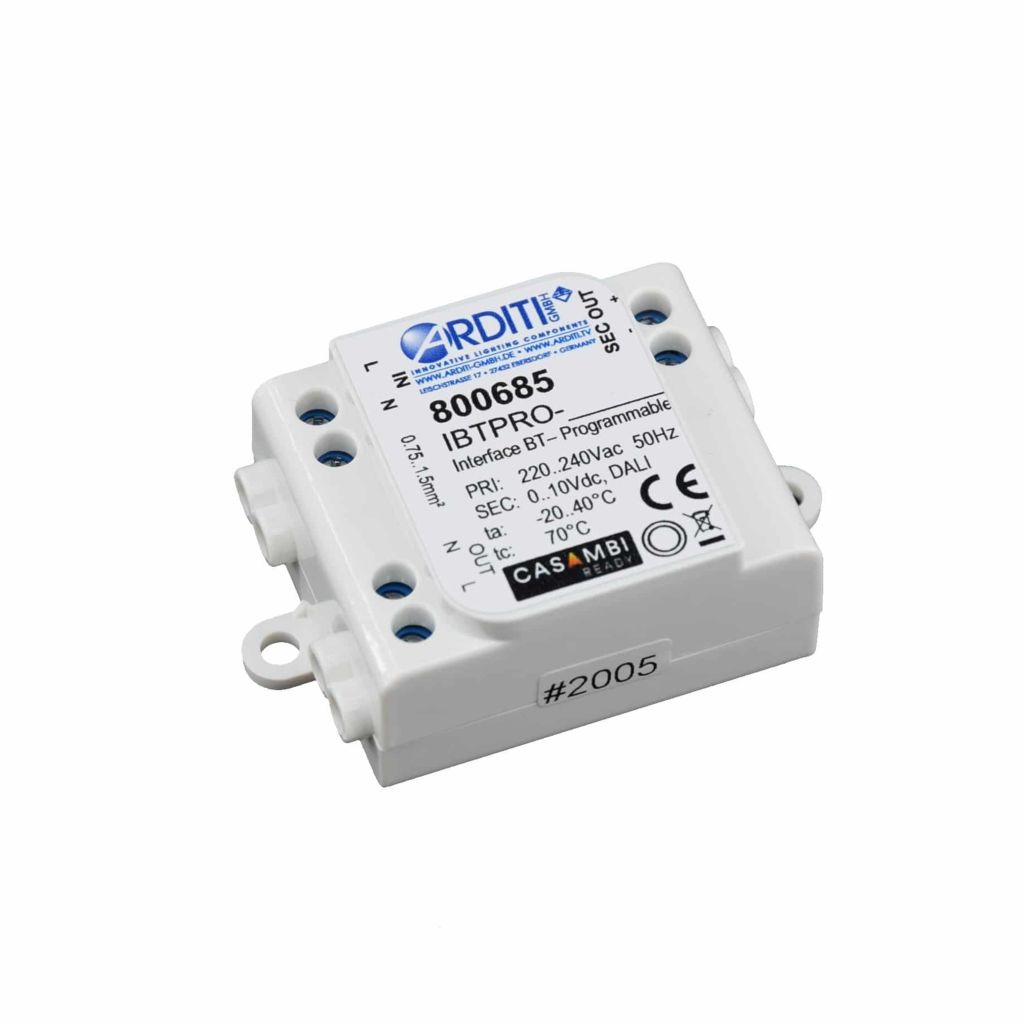

Casambi DALI - CBU-ASD Modul

Product information "Casambi DALI - CBU-ASD Modul"

Casambi Dimmer Unit - dimming via app by DALI light control

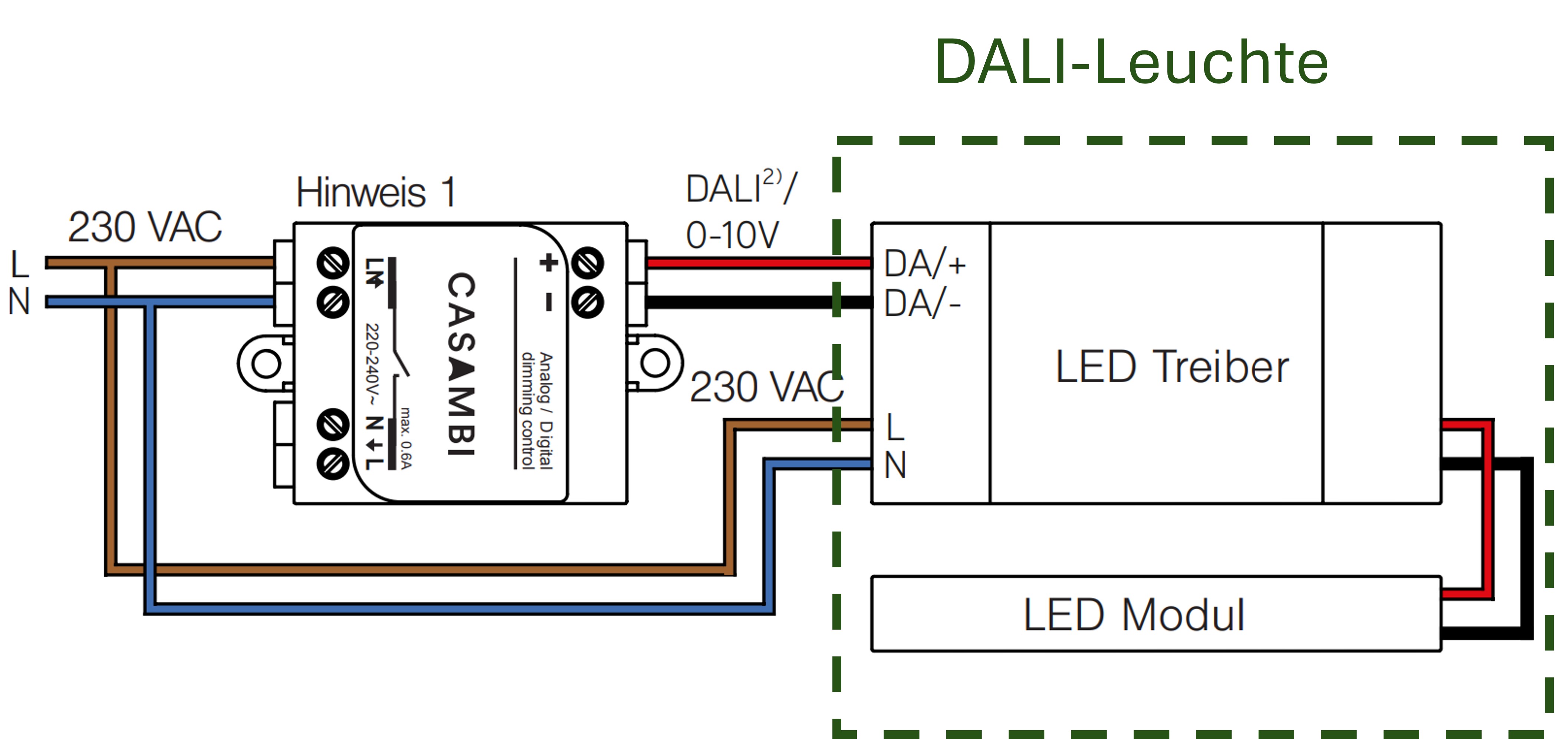

Compact controller to integrate a DALI-compatible LED driver in your lighting unit.

CBU-ASD für Casambi DALI via App

Control a lamp via smartphone with Casambi App for the Casambi Dimmer Unit...
... to create a perfect lighting control system

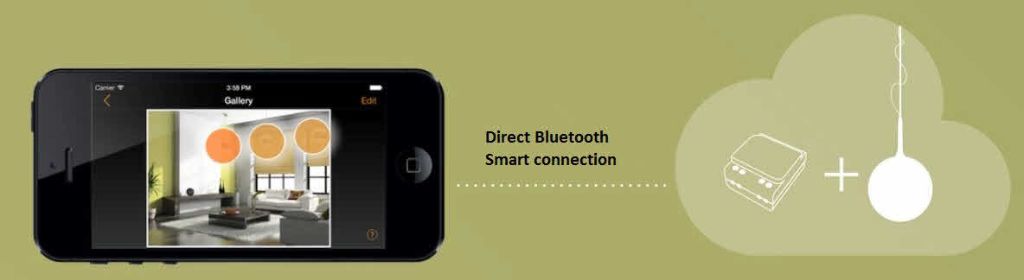

Through a BT 4.0 (2,4 GHz) connection and appropriate App you can dim your Smart Device lamps, switch
individual lights on and off, create light scenes and a desired mood in your own 4 walls.

Available in 4 different versions:

  • 1 Channel (sent via DALI-Broadcast)
  • 2 Channel (sent to DALI addresses*: 0, 1)
  • 3 Channel RGB (sent to DALI addresses*: 0, 1, 2)
  • 4 Channel RGBW (sent to DALI addresses*: 0, 1, 2, 3)
  • CCT / TW (sent to DALI addresses*: 0,1)
  • RGB (sent to DALI addresses*: 0,1, 2)
  • RGB-W (sent to DALI addresses*: 0, 1, 2, 3)
  • Professional (combines all functions, selectable via profile)

(* DALI addresses of devices has to be programmed regarding this)

Another Casambi highlight:

Even with your conventional light switch you can dim and switch your lights.

Conceived as backup when the phone is straight not with, or as a simple alternative, if cables for DALI
are missing and you still want to dim. So you can easily adjust with Casambi reduce lights.

Casambi Bluetooth Unit dimmen mit dem Lichtschalter

1. Switch on illumination with a usually switch.
2. Short off and on again withing 1 second. The illumination slowly dims up.
3. Another short off and on again at the desired dimming level. The current dimming value is stored.
4. If the second off / on is not switched between 8 seconds, will the illumination dim up to 100%.


All products by Casambi family have following features:

  • Creates automatically a wireless Mesh-Network with other Casambi products.
  • Wireless control using the free Casambi App for smartphones and tablets.
  • Integrate the use of regular wall switches for dimming and scene control.
  • Support for external on / off motion sensors.



Compatible devices and minimum requirements for Casambi App:

Android iOS
 min. Android 4.4 KitKat with BT 4.0 (2,4 GHz) from iPhone 4S
 recommended: Android 5.0 Lollipop with BT 4.0 (2,4 GHz) from iPad 3
 or current Android versions from iPod 5


These functions does the free Casambi App:

  • Dimming of single or multiple lights with simple touch gestures.
  • Controlling the lighting of your stores, offices, or personal spaces.
  • Installation of single or complex scenarios with one or more lightings.
  • Define the security of the network. There are four different levels of security for access control.
  • Also support Philips HUE.


Casambi App free download:

Casambi App Android (Google Play)
Casambi App iOS (iTunes)

Casambi app iosCasambi App in Appstore
casambi app dimmen mit androidCasambi App for Android


Specifications of Casambi CBU ASD Unit:

 Input
 Input voltage 220-240VAC (50Hz)
 Max. input voltage 1.2A
 Standby power 220-240VAC (50Hz)
 DALI Output
 Bus voltage 12VDC
 Current7mA
 Radio transceiver
 Frequency range 2,4-2,483 GHz
 Max. output power +4 dBm
 Mechanical data

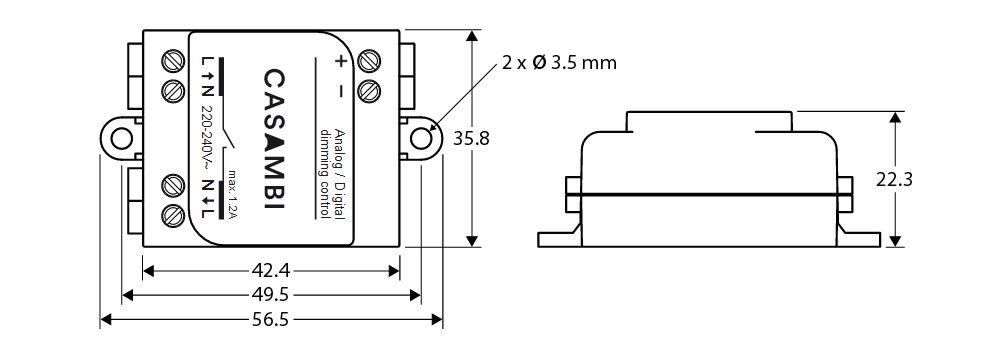

 Dimensions 56.5 x 35.8 x 22.3 mm
 Weight 48g
 Protection IP20
 Protection class

 Built-in class II

CBU-ASD overview


In this video, we’ll provide a brief overview of the CBU-ASD and its features and functions.

CBU-ASD modules, control of lighting with 3 wires and dimming

LEDclusive.de We show the idea behind.

Video Language is german

Properties "Casambi DALI - CBU-ASD Modul"
·Application/IP-Code: IP20 - IP44 (Indoor)
·Dimmable/Control: BT4.0 (2,4 GHz), Casambi radio, DALI, DALI DT8
Manufacturer "Arditi GmbH Lighting Components"

Arditi GmbH is a subsidiary of the Italian Arditi Spa near Bergamo. The range is broadly diversified and includes switches, dimmers, sockets, bases, wires, transformers and accessory. In the meantime, Arditi has made a name in the sector of LED-technology. The company offers LED-modules in various forms, transformers and drivers, as well as LED-suppliers.

Related links of the manufacturer

Casambi App Short Guide
Casambi App IOS Apple free downl
Data sheet IBTPRO

Fot Article 800685

Data sheet Arditi

For article numbers  800688, 800689, 800686

Data sheet Arditi

Data sheet for article numbers 800687, 800682, 800683, 800681, 80066, 800662, 800663, 800661

Anleitung DALI Professional

Kurzbeschreibung zur Profilauswahl zwischen DALI x-Kanal, DALI-TW, DALI RGB(W) und DT8-Versionen

10 of 20 reviews

4.8 out of 5 stars


85%

10%

5%

0%

0%


Leave a review!

Share your experiences with other customers.


From: Winfried

9 November 2020 09:20

n/a

From: Luis

17 May 2022 13:31

n/a

From: Helmut

22 February 2021 09:32

n/a

Funktioniert einwandfrei, schade, daß ein zusätzliches Relais/Schütz genutzt werden muß

From: Mario

23 November 2020 10:05

n/a

From: Jürgen Ballreich

5 September 2022 13:56

Bin begeistert

DALI-Version: ? War in ´nem Tag da ? Steuerbar über den Taster, funktioniert sogar bei unserer EIB-Anlage ? Bedienbar auch komfortabel mit der kostenlosen APP ? Schnell installiert ? Weit günstiger, als alles was ich sonst gefunden habe ? Durch die kostenlose App-Steuerung entfallen zusätzlich die Kosten für eine Fernsteuerung

From: Harald

19 April 2021 03:48

n/a

From: Jürgen

12 September 2022 08:18

Super Gerät

Sehr günstige Möglichkeit DALI-Leuchten zu steuern. Durch die App-Funktion entfällt der Kauf eines Funksenders. Das Gerät funkioniert sogar bei unserem EIB-Taster. Wir sind sehr zufrieden.

From: Ole

16 May 2021 08:08

n/a

From: Ulrich

5 December 2020 00:49

n/a

From: Werner

19 February 2021 09:10

n/a

Similar Products

Casambi Bluetooth 1-10V Dimmer
Casambi Module light control via app 1-10V
Casambi Module
Lighting control via App for 1-10V driver
Product number: 800589

€74.90*

delivery time 3-5 Working days*

%
CBU-TED Casambi Phasenabschnitt Dimmer
CBU-TED Casambi Dimmer via phasecut
Casambi Dimmer
Phasecut-dimming DBU-TED actuate with BT 4.0 (2,4 GHz) to dimming lights.
Product number: 800838

€60.06* €66.73* (10% saved)

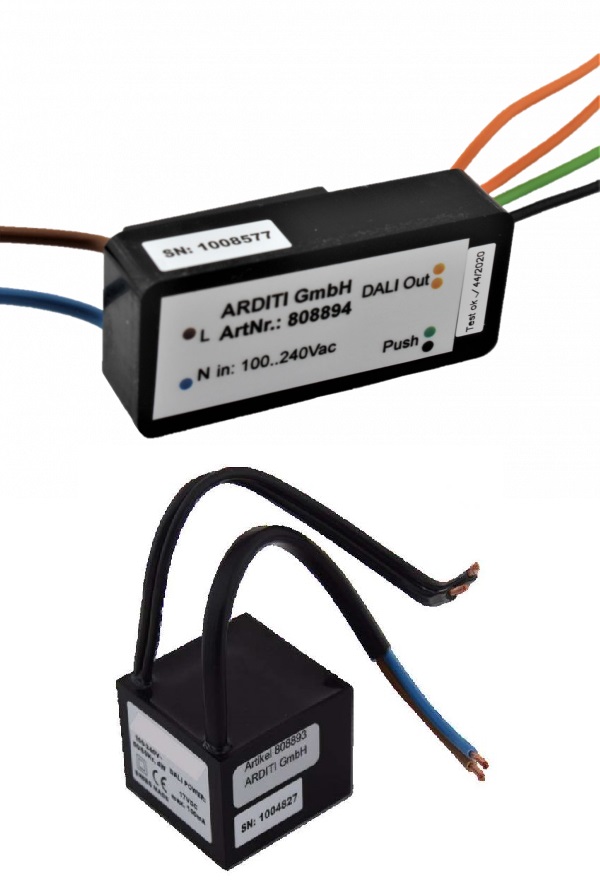

Casambi Schnittstelle, konfigurierbar für bis zu 25 / 60 DALI-Teilnehmer
Casambi DALI interface for up to 60 devices , incl. PS
Programmable Casambi interface, configurable for up to 25 / 60 devices, signal output DALI
Product number: 828
Version

Variants from €252.96*
€209.09*

delivery time 5-10 Working days*

Related Products

Maxi Jolly US DALI in Push und 1-10V Betrieb
TCI MAXI JOLLY US DALI 60 W | 127413 | 151413
TOP LED-DALI control unit 60W linear (AM) and PWM dimmable. A new generation of flicker-free led drivers also while dimming. Adjustable currents from 350mA - 1050mA via dip switch. Two versions available AM and PWM dimming
Product number: 216
Select version
+2

€54.95*
%
TCI DC Mini Jolly DALI 20W, 125403, 151403
TCI DC Mini Jolly DALI 20W | 125403 | 151403
DALI LED driver 20W
Constant currents: 250mA - 700mA; constant voltage: 24V, TCI 123403, 125403, 151403 and Built-In
Product number: 374
Select version
+2

Variants from €34.71*
€37.07* €39.45* (6.03% saved)
Casambi Xpress Schalter
Casambi Xpress -Wall Switch and Bluetooth transmitter
Casambi Xpress Wall switch and Bluetooth transmitter
Product number: 645
Surface

€158.09*

delivery time 3-5 Working days*

%
Casambi Tastereinsatz
Casambi Push Button Interface | SC-TI-CAS

Casambi transmitting modul for installation in flush boxes behind push button to control light.
The ultimative Transmitter for all Casambi Receivers.

Product number: SC-TI-CAS

€139.50* €154.11* (9.48% saved)

delivery time 3-5 Working days*

Casambi Wandschalter Batterielos weil Enocean
Battery-free radio switch for Casambi
Casambi wireless switch operates without batteries with up to four buttons
Product number: 1930
Type
+2

Variants from €95.25*
€75.11*

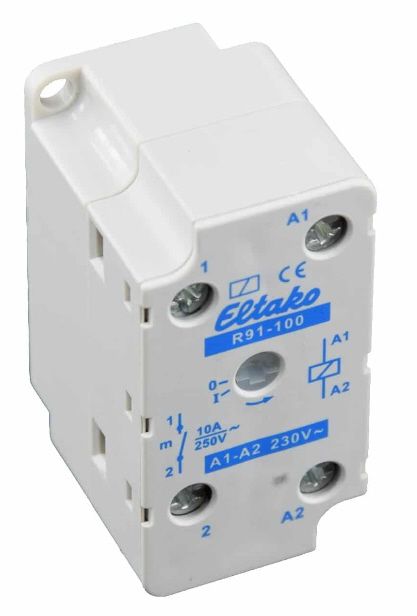

Frontansicht Relais R91-100 10A
Eltako switch relay 10A/230VAC R91-100-230V for Casambi ASD
Switch relay 10A/230V for switched power supply of CASAMBI controller
Product number: 2937

€28.18*

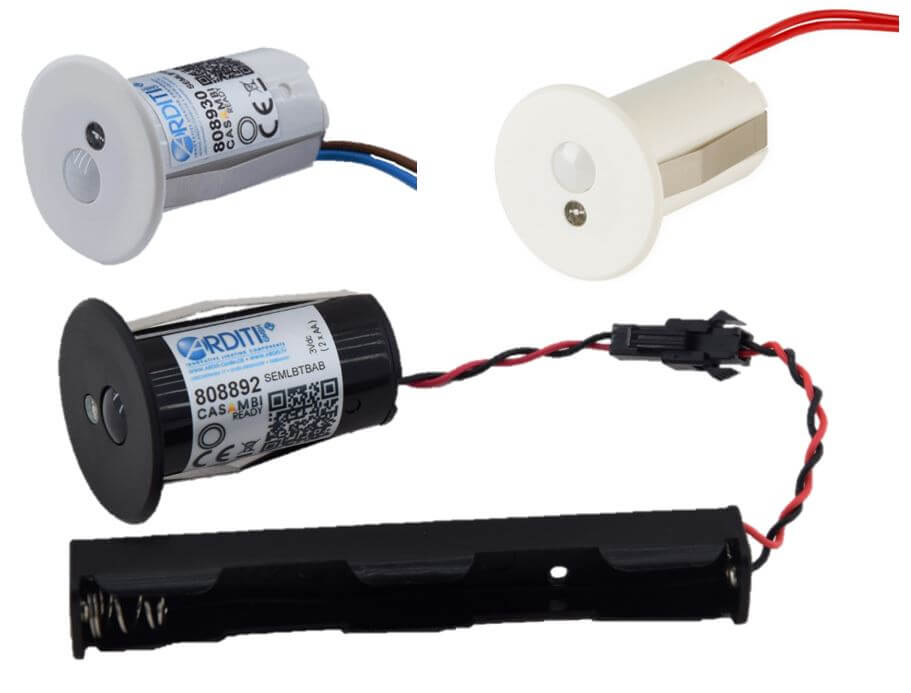

Casambi Bewegungs-/Lichtsensor in Variationen mit Konstantspannung 12-24V, 220-240V und 3V Batterie
