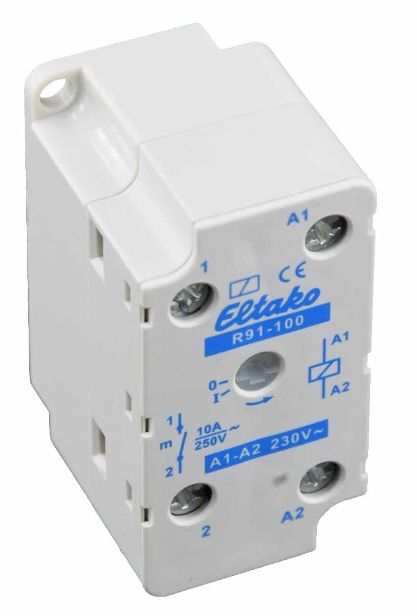

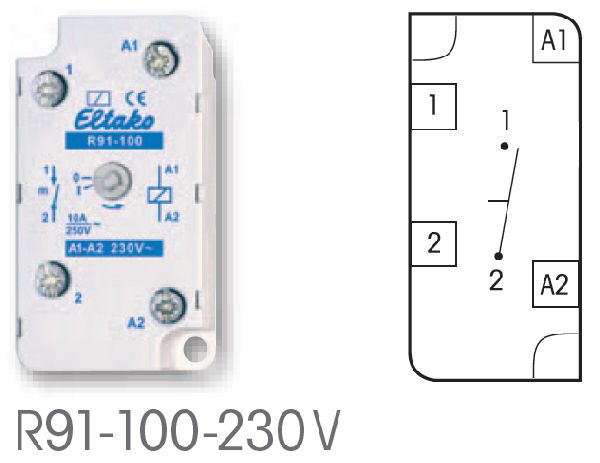

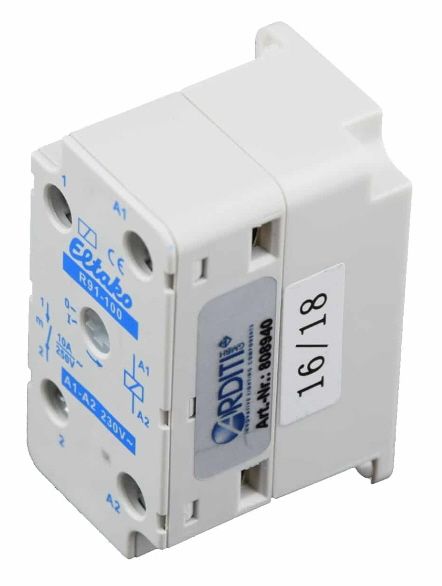

Eltako switch relay 10A/230VAC R91-100-230V for Casambi ASD

28.18€ *
Net price: 23.68€

Prices incl. VAT plus shipping costs

Ready to ship today,
Delivery time appr. 1-3 workdays*


piece

ELTAKO switch relay for Casambi-ASD-Modul This switch relay is used to interrupt the power... more

ELTAKO switch relay for Casambi-ASD-Modul

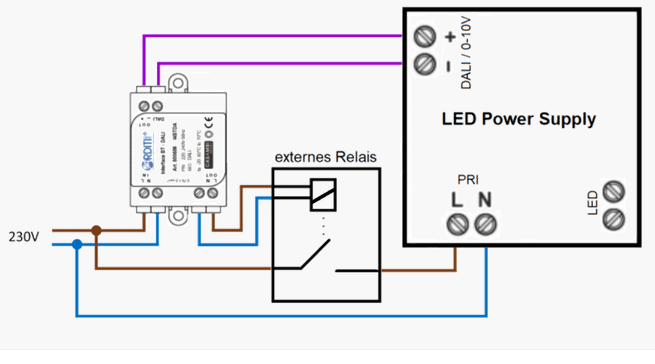

This switch relay is used to interrupt the power supply of Casambi controlled light Installation together with the low current contact inside Casambi ASD-Moduls. The decoupling takes place either via the Casambi app or manually at the relay. To avoid standby currents at 0% dimming via the Casambi app, and to completely switch off the connected lighting, a relay sized for the power to be switched must be used. A corresponding typical circuit diagram can be found under the tab More Images.


Features:

  • For installation and AP mounting with manual operation and switch position display
  • Duty cycle 100%, control power requirement 4-5 Watt
  • Contact distance 2mm
  • The universal control voltage covers the voltage range 8-253V AC 50-60Hz and 10-230V DC



Technical data:

  • Input voltage 230-250 V
  • max. switching Current 10A
  • Protection: IP 20
  • Dimensions: Length 50 mm x Width 26 mm x Depth 32 mm
  • Test voltage contact / contact 2kV/ and test voltage control connections / contact 4 kV
