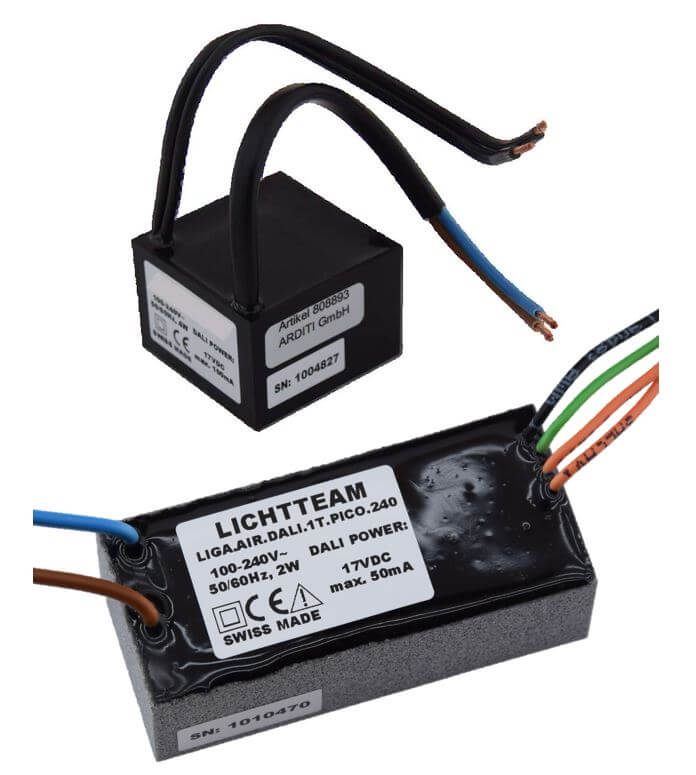

Waterproof Casambi Interface for controlling DALI devices (ASD25, ASD60)
This configurable Casambi module allows convenient regulation or control of multiple LED control gear with DALI signal input. This lighting control function is performed by a smart device (Apple, Android) with the Casambi app. Depending on the version of this Casambi interface, up to 25 or 60 DALI participants can be integrated into the network.
Product Overview / Features:
- Waterproof interface for convenient control of up to 25 or 60 LED control gears with DALI signal input
- Configuration of the other interface types is possible before pairing to a network: change profile
- Casambi interface sends DALI broadcast (1Ch), 4 groups (DALI groups G0-G3), RGBW
- Gateway is not needed, but setup possible
- Integrated antenna
- Connection cables, 15 cm each
- Use the free app from CASAMBI (Apple / Android) to conveniently control all settings (downloads below in the description)
- Control brightness
- Configuring luminaires and luminaire networks
- Creating scenes and animations
- New devices are detected automatically
- Intelligent timer and gallery functions
- Set sharing options (only me, everyone, only with password, ...)
|Article no. built-in housing||808893||808894|
|Type Built-in housing||IBTPRODAC||IBTXPRODA25C|
|Power supply input||220..240 Vac; 50 Hz|
|Radio signal||2.4..2.483 GHz; 4 dBm|
|Signal output||DALI, max. 100 mA; SELV||DALI, max. 50 mA; SELV|
|Ambient temperature||-20.. +40 °C||-20.. +50 °C|
|Degree of protection||IP 44|

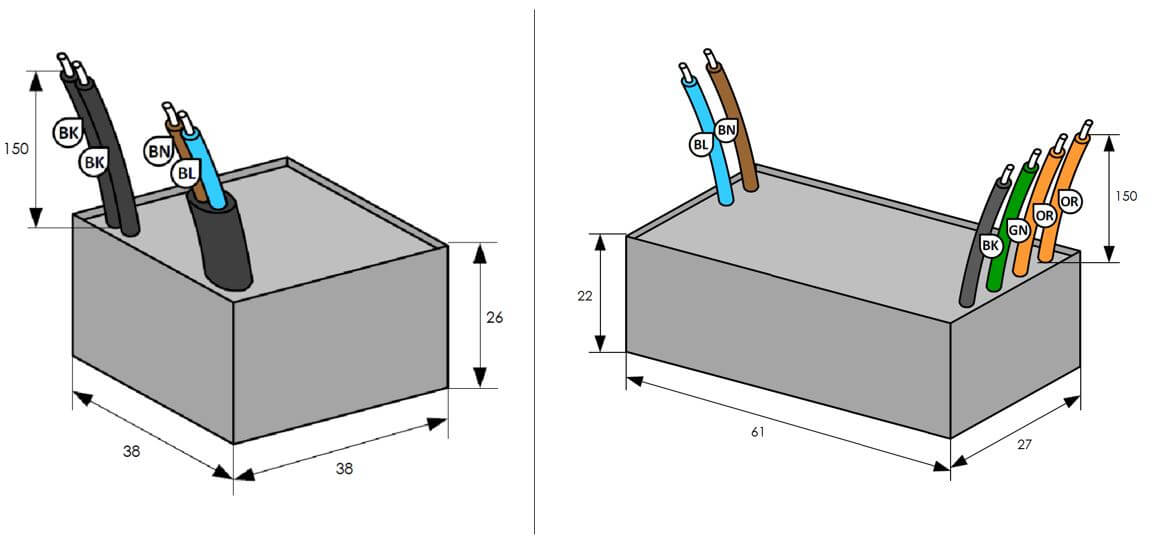

|Dimensions (without cable)||38 x 38 x 26 mm||27 x 61 x 22 mm|
Experience the new application diversity of CASAMBI.
Through Casambi, you can conveniently control your lighting via smartphone or tablet, wirelessly and easily individually. The control runs via Casambi LE (low energy). If several Casambi modules are in use, a so-called "mesh network" is built up. Each additional Casambi module increases the range, because each module establishes a direct connection to all others.
Your luminaires can now not only be dimmed, switched on and off, but the timer function allows you to control the lighting according to time. A maximum of 3 lights can be combined into a group, light scenes can be stored, and much more.
The compact modules are simply mounted in front of the luminaire, so there is no need to run additional cables. The setup is extremely simple, all components are automatically recognized in the network and in the app.
CASAMBI QR-Code and Links:
CASAMBI Tutorial Video
For more information, please refer to the data sheet in the download tab.
|Application/IP-Code:||IP20 - IP44 (Indoor)|
|Dimmable/Control:||BT4.0 (2,4 GHz), Casambi radio, DALI, Push-Button|
