Flexible chip on board LED tape with SMD LEDs, 5m length, beam angle 180 °, 8W / m, 12 / 24V, CRI> 90, various colour temperatures
Through the implementation of the "Chip-On-Board" technology and the resulting beam angle of 180 °, this COB LED Strips are ideal for a wide variety of indoor applications in which it provides very good illumination. The high color rendering index (CRI> 90) plays a large part in this. In addition, the bar can be used flexibly, especially since it can be separated between the individual units and has a corresponding bending radius.
The COB LED strips are available in versions with 12V and 24V constant voltage. There are also versions with different colour temperatures in a range from 2200 K to 6500 K.
The innovative COB LED strips technology
With the newly developed "Chip-On-Board" technology, a homogeneous beam quality can be achieved with LED strips, since the individual LED points are no longer visible. With a continuous light band, delicate, narrow lines of light can be created. This is not least due to an extremely densely populated LED strip (here: 528 LEDs / m). The use of COB LED strips as effect light or path and orientation lighting is particularly impressive.
Product overview / features:
- 5 m flexible COB LED Strip with SMD-LED
- With 15 cm connection cable
- Self-adhesive (additional fixture is recommended

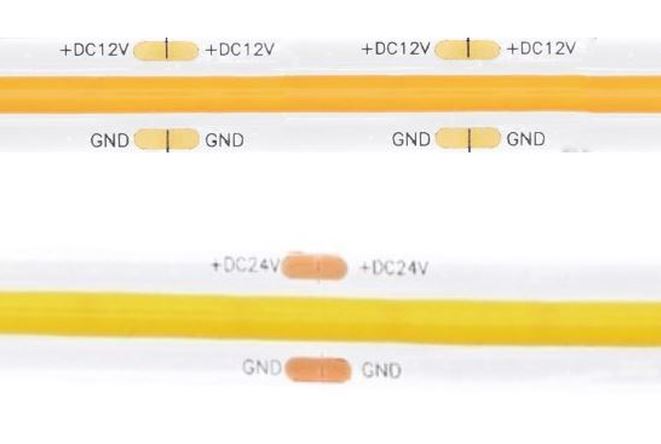

- Divisible between units, with solder pads
- Recommendation: Control the Ts-temperature at the solder point of an LED
- Bending radius in places with components min. 50 mm; attach without pressure
- Extensive illumination thanks to a large beam angle of 180 °
- Densely mounted LED strip: 528 LEDs / m
It is advisable to attach the COB LED strips to a heat-conducting surface in order to achieve optimal cooling. When mounting on an electrically conductive material, care must be taken to insulate the connections.
|Art. no for 12Vdc||808110||808111||808112||808113||808114|
|Type for 12Vdc||OSC12-15-965||OSC12-15-940||OSC12-15-930||OSC12-15-927||OSC12-15-922|
|Art. no. for 24Vdc||808115||808116||808117||808118||808119|
|Type for 24Vdc||OSC24-15-965||OSC24-15-940||OSC24-15-930||OSC24-15-927||OSC24-15-922|
|Power max||15 W/m|
|Luminous flux typ.||1500 lm/m||1400 lm/m||1300 lm/m||1300 lm/m||1200 lm/m|
|Colour temperature ||6500 K||4000 K||3000 K||2700 K||2200 K|
|Variance of colour temperature||± 300 K||± 250 K||± 200 K||± 150 K||± 150 K|
|Colour rendering index (CRI)||> 90|
|Viewing angle||180 °|
|Rated max. temp (tc)||60 °C|
|Number of LEDS||528 /m|
|Nominal input voltage ||12 Vdc / 24 Vdc|

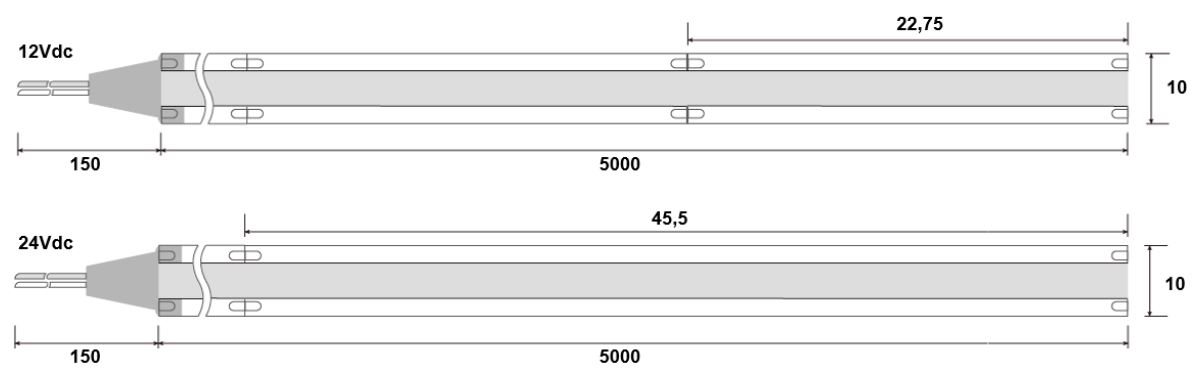

|Length of a unit||22,75 mm / 45,5 mm|
|Max. length after feed-in||2 m / 4 m|
|Dimensions||5000 x 10 x 1,6 mm|
For more information, please refer to the data sheet in the Download tab.
|Constant Voltage:||12V, 24V|
|Application/IP-Code:||IP20 - IP44 (Indoor)|
|rated luminous flux lm/m:||1000-2000 lm/m|
|Color Temperature/Color:||2700K, 3000K, 4000K, >5000K|
|Amount LEDs/m:||528 LEDs/m|
