Elegant COB LED bar 8 W / m - 5m length, good colour rendering
This flexible "chip-on-board" LED band, which has SMD LEDs, can be easily implemented in a wide variety of indoor applications.In addition, there is a particularly wide beam angle of 180 °, which - paired with very good colour rendering (CRI> 90) - ensures optimum illumination. The fact that the LED tape is self-adhesive and can be separated between the individual units further emphasizes its versatility and flexibility.
The COB LED strips are available in versions with 12V and 24V constant voltage. In addition, there are versions with different colour temperatures in a range from 2200 K to 6500 K.
The innovative COB technology in LED strips
With the newly developed "Chip-On-Board" technology, a homogeneous beam quality can be achieved with LED strips, since the individual LED points are no longer visible. With a continuous light band, delicate, narrow lines of light can be created. This is not least due to an extremely densely populated LED strip (here: 320 LEDs / m). The use of COB LED strips as effect light or path and orientation lighting is particularly impressive.
Product overview / features:
- 5 m flexible COB LED Strip with SMD-LED
- With 15 cm connection cable
- Self-adhesive (additional fixture is recommended

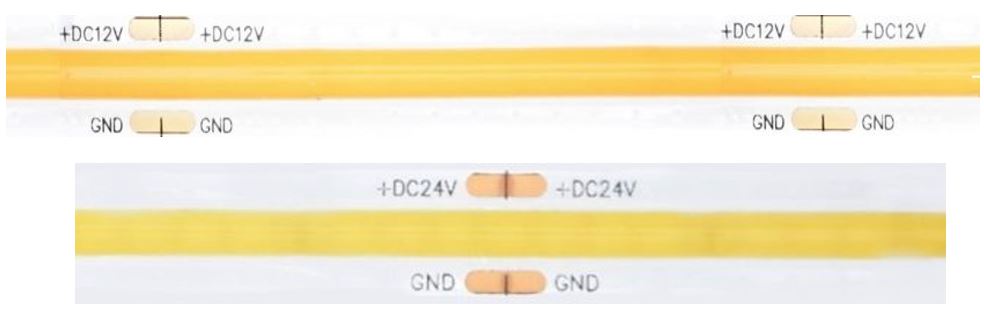

- Divisible between units, with solder pads
- Recommendation: Control the Ts-temperature at the solder point of an LED
- Bending radius in places with components min. 50 mm; attach without pressure
- Extensive illumination thanks to a large beam angle of 180 °
- Densely mounted LED strip: 320 LEDs / m
It is advisable to attach the COB LED strips to a heat-conducting surface in order to achieve optimal cooling. When mounting on an electrically conductive material, care must be taken to insulate the connections.
|Art. no. for 12Vdc||808100||808101||808102||808103||808104|
|Type for 12Vdc||OSC12-8-965||OSC12-8-940||OSC12-8-930||OSC12-8-927||OSC12-8-922|
|Art. no. for 24Vdc||808105||808106||808107||808108||808109|
|Type for 24Vdc||OSC24-8-965||OSC24-8-940||OSC24-8-930||OSC24-8-927||OSC24-8-922|
|Power max.||8 W/m|
|Luminous flux typ.||800 l/m||750 l/m||700 l/m||700 l/m||650 l/m|
|Colour temperature ||6500 K||4000 K||3000 K||2700 K||2200 K|
|Variance of colour temperature||± 300 K||± 250 K||± 200 K||± 150 K||± 150 K|
|Colour rendering index (CRI)||> 90|
|Viewing angle||180 °|
|Rated max temperature (tc)||60 °C|
|Number of LEDs||320 /m|
|Nominal input voltage||12 Vdc / 24 Vdc|

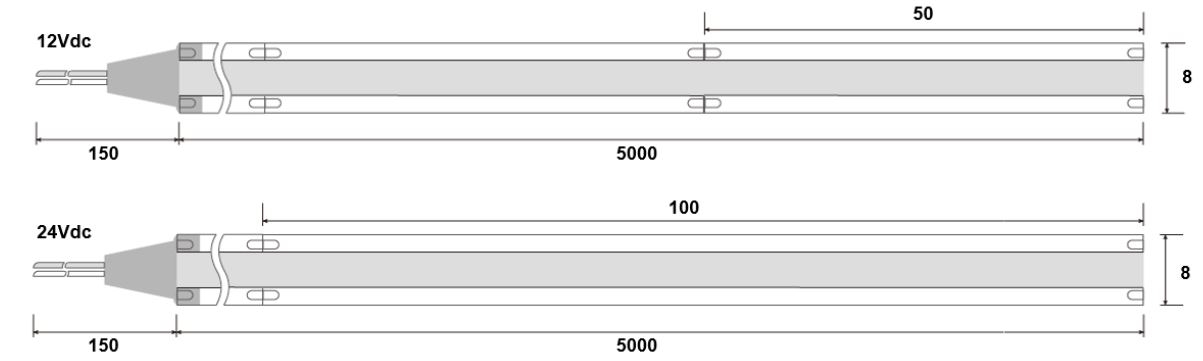

|Length of a unit||50 mm / 100mm|
|Max. length after feed-in||2,5 m / 5 m|
|Dimensions||5000 x 8 x 1,6 mm|
For more information, please refer to the data sheet in the Download tab.
|Constant Voltage:||12V, 24V|
|Application/IP-Code:||IP20 - IP44 (Indoor)|
|rated luminous flux lm/m:||501-1000 lm/m|
|Color Temperature/Color:||2700K, 3000K, 4000K, >5000K|
|Amount LEDs/m:||320 LEDs/m|
