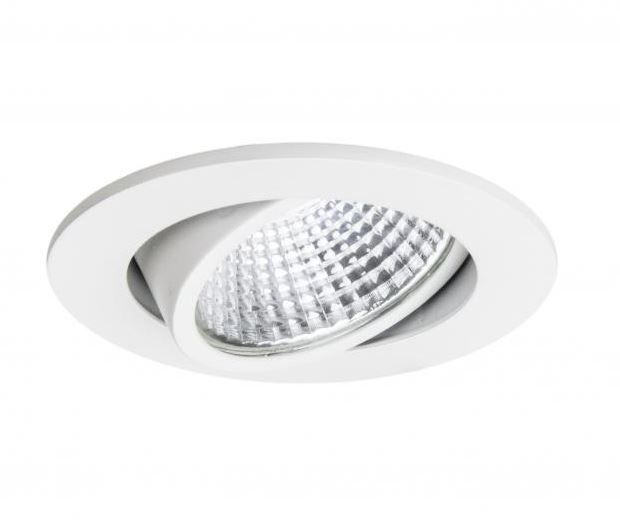

COB LED Downlight 6W round and swiveling

Variants from 49.60€ *
Net price: 41.68€

Prices incl. VAT plus shipping costs

Please select a variant first

Surface:

Ballast:

Colour temperature:


piece

  • ELRS6-SW-1-0
  • ELRS-6SW1
  • 0.23 kg
  • ALS GmbH
Well-designed LED downlight 6W in COB technology round This 6W COB LED downlight is the ideal... more

Well-designed LED downlight 6W in COB technology round

This 6W COB LED downlight is the ideal lighting in living rooms. Pleasant and bright light provide an atmospheric and comfortable ambiance in your rooms. Even single areas can be effectfully put in scene, like resp. plants, pictures, show cases, decorative items and many more.
A further advantage of the LED technology is the small power consumption and the long service life.

The LED downlight with 6W and ca. 650 lumen light current (depending on the colour temperature) in connection with the COB technology, offers especially in the 2700K version, an astonishing similar light to 50W halogen lamps.
For the operation you can use one of our numerous LED drivers 350mA constant current. With the appropriate selection you have an unlimited dimmability via 1-10V, button dimming or even DALI. Although its not recommended, but in existing constructions still necessary, a LED driver which is compatible with phase dimmers can be used.
Further information and recommendations for the operation with our LED ballasts, you find on the category side of our LED-Downlights.
Our COB Downlights 6W in COB are available in the following versions and with accessory

  • Housing and reflector from aluminium
  • With splay-springs mounting
  • IP44 with closed cover
  • Delivery: with or without power supply (depending on the selection)
  • Frame colour: white or alu matt
  • Colour temperatures: 2700K, 3000K, 4000K


Technical data of the LED downlight 6W COB rotatable

Light source COB - LED* COB - LED* COB - LED* COB - LED*
Colour temperature 2700K
(warm white comfort)
3000K
(warm white)
4000K
(neutral white)
Dim2Warm
Radiation angle 38° 38° 38° 38°
Rotatable 30° 30° 30° 30°
Operating current 350 mA 350 mA 350 mA 350 mA
Energy efficiency A++ A++ A++ A++
Test mark CE CE CE CE
Height 50 mm 50 mm 50 mm 50 mm
Outside diameter 82 mm 82 mm 82 mm 82 mm
Wall and ceiling cutout 68 mm 68 mm 68 mm 68 mm
Colour white/alu matt white/alu matt white/alu matt white/alu matt
Number of COB 1 1 1 1
Power el. 6 W 6 W 6 W 6 W
Light current 594 lm 647 lm 664 lm 480 lm
Colour reproduction/CRI >80 >80 >80 >90
Ballast** external external external provided
System efficiency 99 Im/W 108 lm/W 111 lm/W 66 lm/W
Protection type*** IP44 IP44 IP44 IP44
Weight 0.211 kg 0.211 kg 0.211 kg 0.268 kg

*COB - LED stands for Chip-On-Board-LED. Many LED chips together create a LED area. This, in connection with a reflektor imitates the familiar halogenspots e.g. MR16 excellently.
**Ballast resp. LED driver can be versatile. We offer the

possibility of an individual compilation. Visit our Overview page
***Protection type with closed cover
Related links to "COB LED Downlight 6W round and swiveling"
Stylish 6W COB LED downlights for 68mm mounting diameter replaces 50W halogen spotlight. Versions... more
Features/tags of this product family. Please refer about the details in the description or datasheet.
Lamp shape: Recessed ceiling
Power range: 1 - 5 W, 5 - 20 W
Hole diameter: 68mm
Dimmable/Control: 1..10V, DALI, DALI DT8, Phase-Cut (Triac), Push-Button
Color Temperature/Color: 2700K, 3000K, 4000K, Dim2Warm/Sunset
