Connector Block/Connector for Series Connection of LED Downlights

Variants from 0.67€ *
Net price: 0.56€

Prices incl. VAT plus shipping costs

Please select a variant first

Attributes:


piece

  • 793.Z-VEN-4
  • Z-VEN4
  • 0.03 kg
  • ALS GmbH
Connector block/connector for the easy installation of downlight recessed luminaires  NEW... more

Connector block/connector for the easy installation of downlight recessed luminaires NEW for series connection

You want to simply install recessed luminaires as LED series connection?

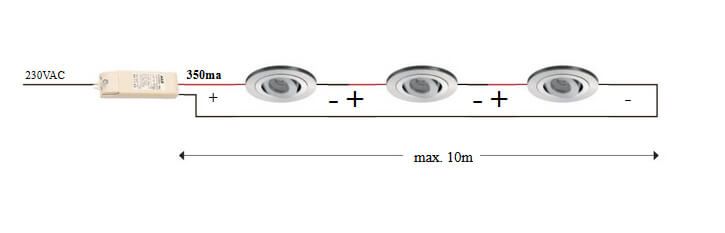

We have found an easy and quick way with which you can connect multiple downlights LED recessed luminaires via comfortable plug design to connector blocks and with this install the circuit. The recessed luminaires are supplied by a constant current driver.

With these connector blocks, the interconnection of LED recessed luminaires in series connection is a piece of cake. Available for selection is a two-part connector block for 1 to 2 luminaires, a four-part connector block for 2 to 4 luminaires and a six-part connector block for 3 to 6 luminaires. In our program we offer an extension cable for far apart downlights. Additionally bridges for the closing of unused slots are available.
Reference: Depending on the choice of the connector block, these bridges are supplied in a small quantity.
The following luminaires of A.L.S are equipped with this plug system: ELEIP, ELESELHS1ELHS2ELRIPELRS SQL

Available are:
  • Connector block for 1-2 luminaires

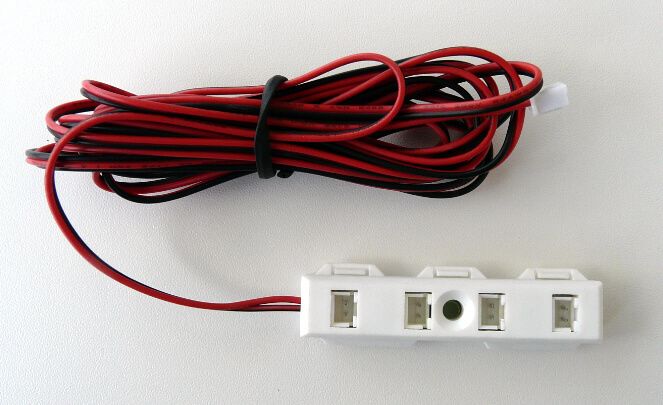

  • Connector block for 2-4 luminaires

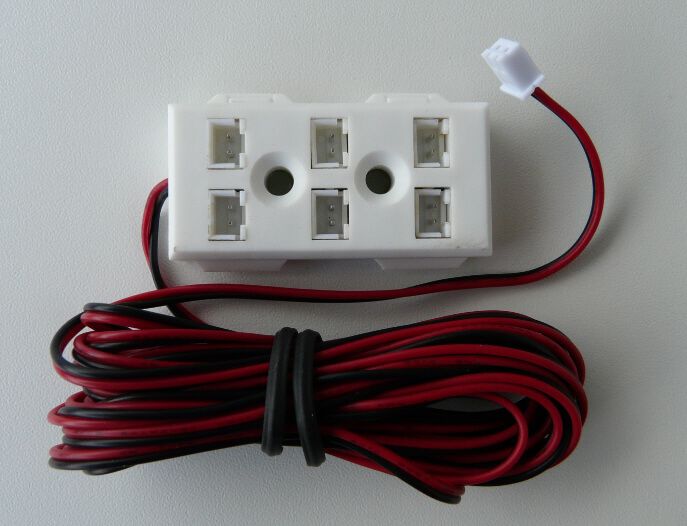

  • Connector block for 3-6 luminaires

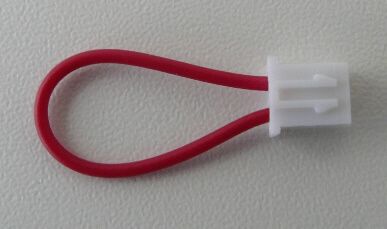

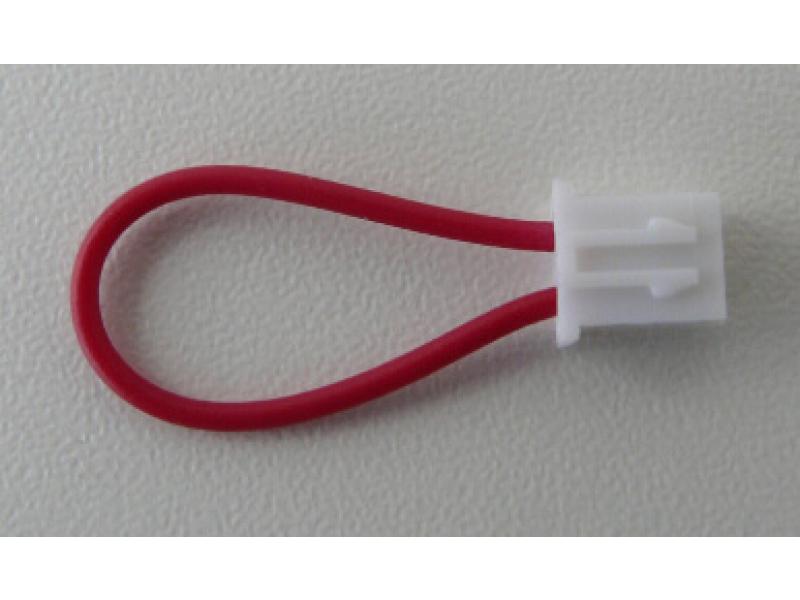

  • Bridge (to short-cicuit free slots in the connector block)

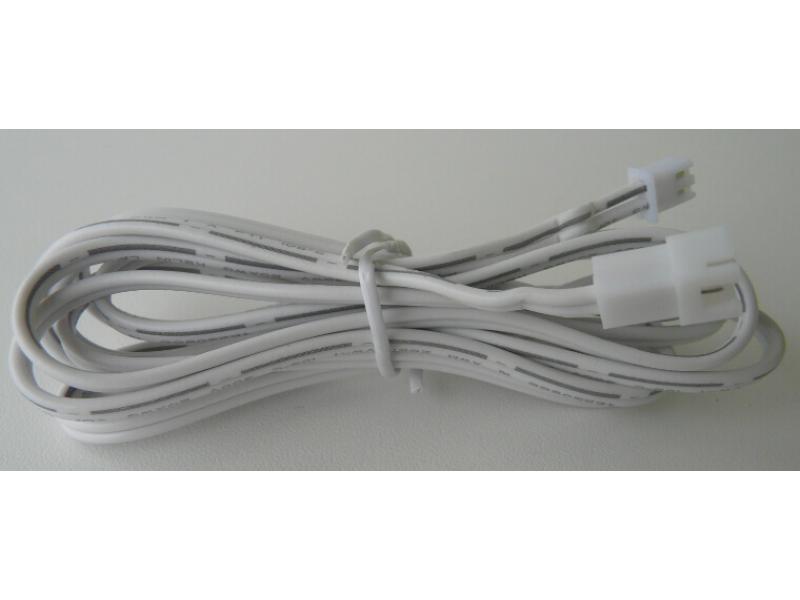

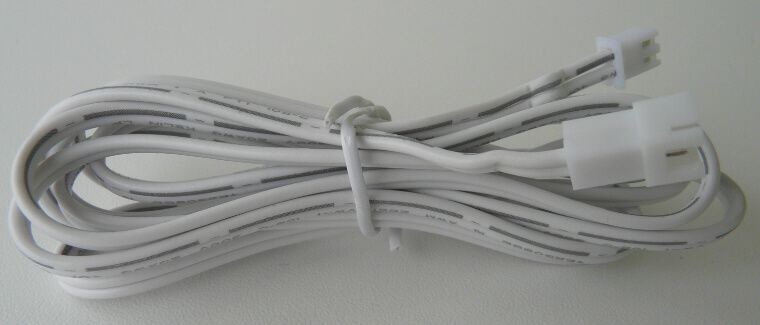

  • Extension cable 1,5m
