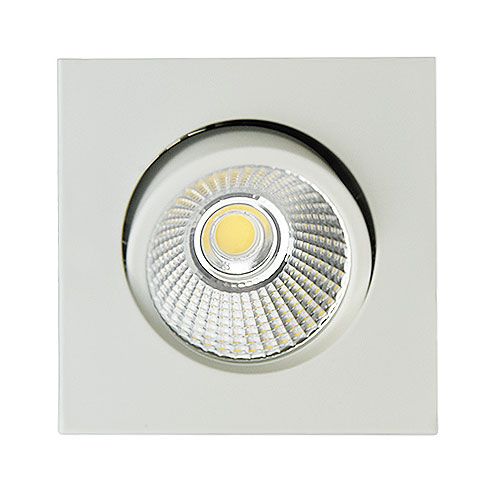

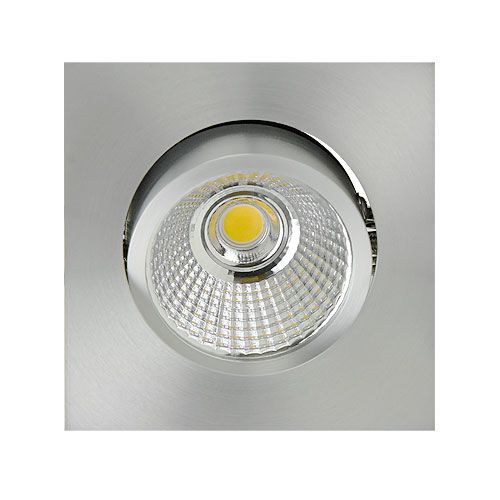

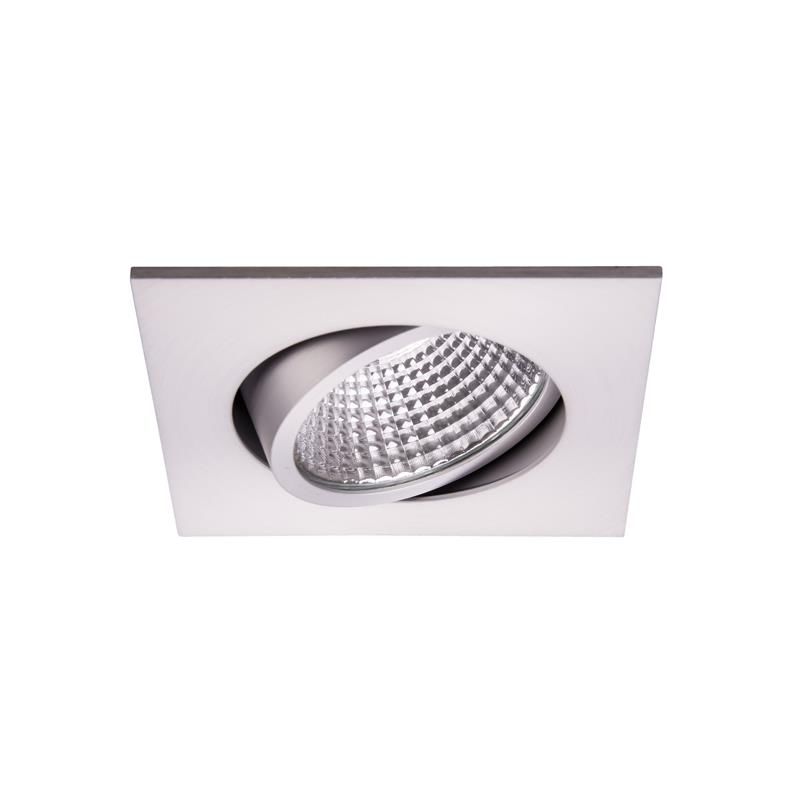

LED Downlight COB 6W, square and swiveling

Product information "LED Downlight COB 6W, square and swiveling"

Quadratic designer LED downlight COB with 6W and pivotable

This pivotable, quadratic COB LED downlight is the ideal lighting for your living rooms. Pleasant and bright light provide an atmospheric and comfortable ambiance in your rooms. Even single areas can be effectfully put in scene, like resp. plants, pictures, show cases, decorative items and many more.
A further advantage of the LED technology is the small power consumption and the long service life.

The LED Downlight in COB technology and ca. 650 lumen light current (depending on the colour temperature)in connection with the COB technology offers especially in the 2700K version an astonishing similar light to 50 W halogen lamps.
For the operation you can use one of our numerous LED drivers 350mA constant current. With the appropriate selection you have an unlimited dimmability via 1-10V, button dimming or even DALI. Although its not recommended, but in existing constructions still necessary, a LED driver which is compatible with phase dimmers can be used. Further information and recommendations for the operation with our LED ballasts, you find on the category side of our LED-Downlights&Einbauleuchten.

Our LED Downlights COB with 6W are available in the following versions with accessory

  • Housing and reflector from aluminium
  • With splay-springs mounting
  • IP44 with closed cover
  • Delivery: with or without power supply (depending on the selection)
  • Frame colour: white or alu matt
  • Colour temperatures: 2700K, 3000K, 4000K


Technical data of the LED Downlight COB 6W, pivotable, quadratic

Light sourceCOB - LED*COB - LED*COB - LED*
Colour temperature2700K
(warm white comfort)
3000K
(warm white)
4000K
(neutral white)
Radiation angle38°38°38°
Pivotable30°30°30°
Operating current350 mA350 mA350 mA
Energy efficiencyA++A++A++
Test markCECECE

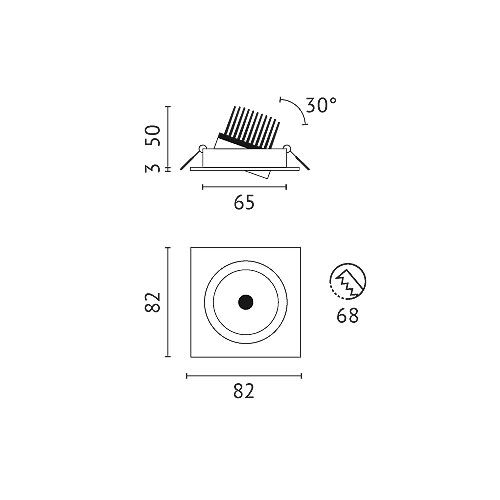

Height82 mm82 mm82 mm
Outside diameter82 mm82 mm82 mm
Wall and ceiling cutout68 mm68 mm68 mm
Mounting depth50 mm50 mm50 mm
Colourweiß/alu mattweiß/alu mattweiß/alu matt
Number of COB111
Power el.6 W6 W6 W
Light current594 Im647 llm664 lm
Colour reproduction/CRI>80>80>80
Ballast**externalexternalexternal
System efficiency99 Im/W108 lm/W111 lm/W
Protection type***IP44IP44IP44
Weight0.286 kg0.286 kg0.286 kg
*COB - LED stands for Chip-On-Board-LED. Many LED chips together create a LED area. This, in connection with a reflektor imitates the familiar halogenspots e.g. MR16 excellently.
**Ballast resp. LED driver can be versatile.. We offer the possibility of an individual compilation. Visit our Übersichtsseite.
***Protection type with closed cover
Properties "LED Downlight COB 6W, square and swiveling"
·Color Temperature/Color: 3000K, 4000K
·Dimmable/Control: 1..10V, DALI, Push-Button
·Hole diameter: 68mm
Manufacturer "ALS GmbH"

A.L.S. is a supplier and manufacturer of lighting systems as well as a service provider of lighting concepts.
The main focus at A.L.S is the production of lighting elements, lamps and accessories

Related links of the manufacturer

Datenblatt Ausführung Alu 2700 k
Datenblatt Ausführung weiß 2700k
Datenblatt Ausführung Alu 3000 k
Datenblatt Ausführung weiß 3000k
Datenblatt Ausführung Alu 4000k
Datenblatt Ausführung weiß 4000k

0 of 0 reviews

Leave a review!

Share your experiences with other customers.


In nachfolgenden FAQs finden sich weitere hilfreiche Informationen zur richtigen Auswahl

Recessed ceiling spotlights/downlights are available in many different versions. These parameters primarily define this product family:
  • Hole diameter - We recommend selecting the spots first, then drilling the holes. Otherwise the limitation is predetermined Output
  • Light output in lumens, or wattage. How much light is needed in the room. There is no general answer to this question. Use the following link for the project enquiry
  • Installation depth - usually a mandatory requirement in terms of drill hole depth or distance from suspended ceiling.
  • Color temperature dimmability - We recommend modern options such as DALI or Casambi.
  • Beam angle - For uniform room illumination. Usually determined by the distribution of the spots in the room and the room height.
  • Fastening - Installation in false ceiling or concrete ceiling Glare - Depending on the viewing angle, lower LEDs in the spotlight can often no longer be perceived as a bright point of light, thus ensuring pleasant lighting.

If you have a lighting project and would like to use downlights, please use the link provided for our project enquiry form. We will try to answer all your questions.
