Pointer 68 fix

Product information "Pointer 68 fix"

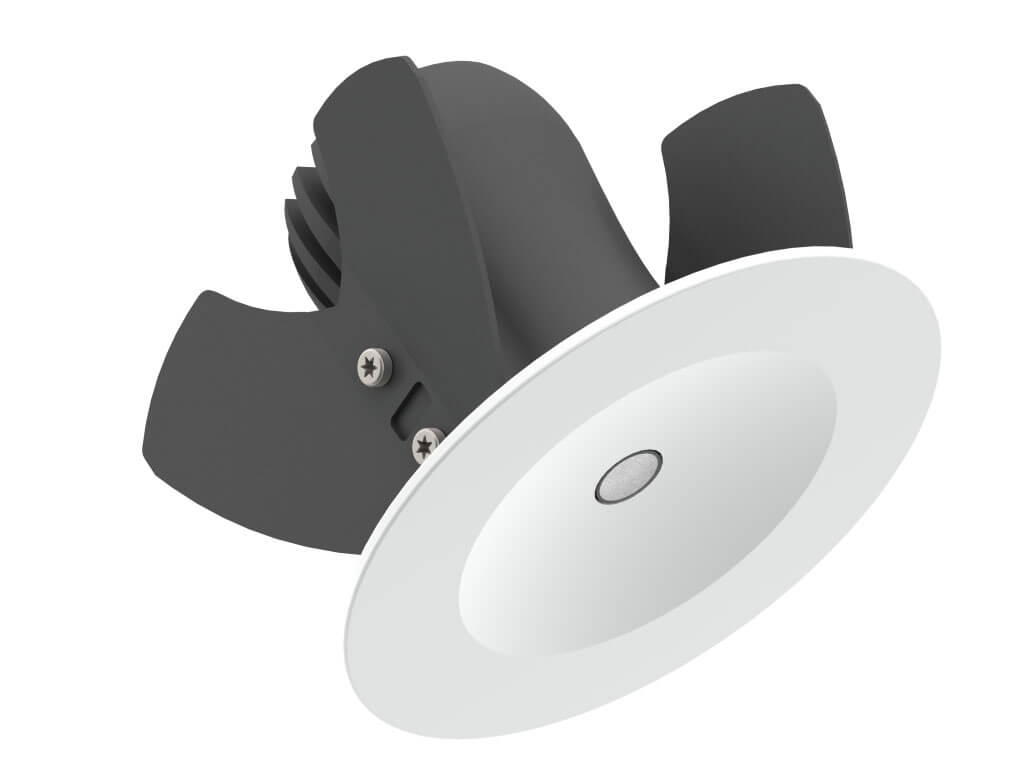

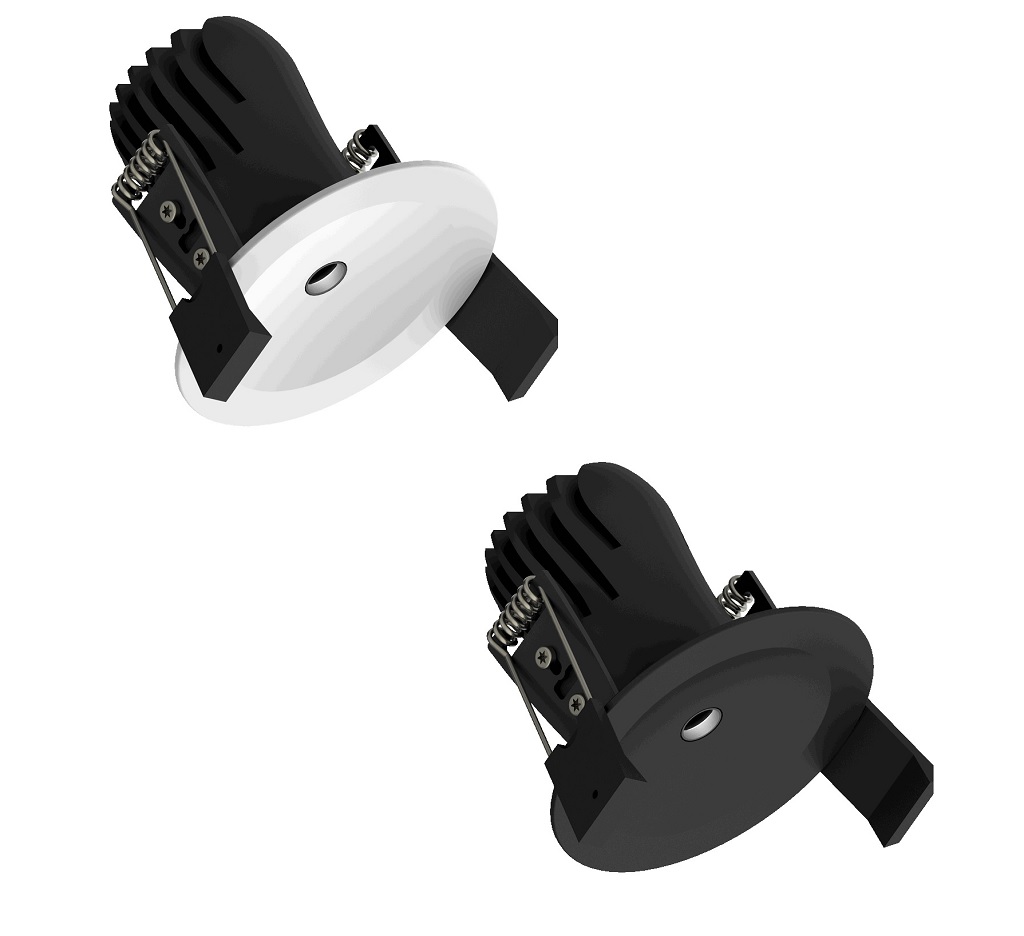

Illuxtron Pointer 68 Gen2 fixed, not adjustable


The new architectural lighting era

Imagine entering a perfectly lit room, but you don't see any light spots anywhere. This is what the new Ära looks like in architectural lighting. And it starts with the Illuxtron Pointer series: a new spotlight, unique lenses, without any glare. All attention here is focused on the room. The light-giving surface of the pointer has a diameter of less than one centimetre, but produces 350 lumens. The result: an almost invisible lighting experience which opens up new design possibilities for architects and lighting designers.
Light revolution to 8 millimeters

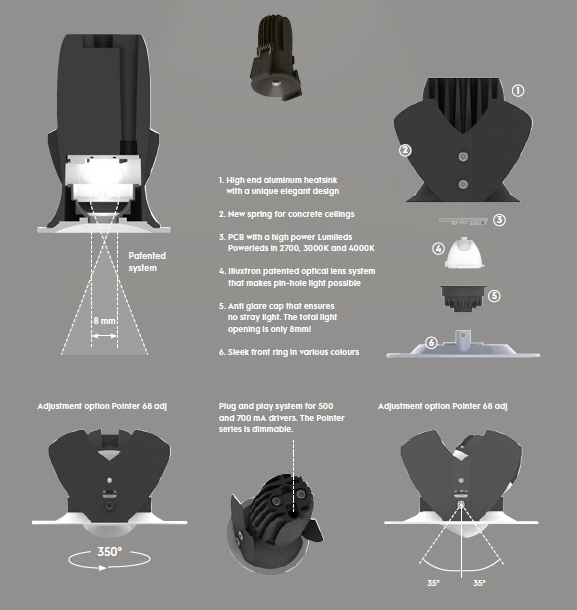

The Pointer series is completely in the light of the new lenses. They adjust the opening angle so that the light is reflected in an hourglass shape. The thinnest spot, the focal point, is exactly through the narrow opening of the spot. A diameter of 8 millimetres is sufficient as a light-giving surface. The spots can also be equipped with an anti-glare ring. In addition to a clean design, this ensures an extremely low UGR value. The light is distributed evenly and harmoniously throughout the room.

The most important technical details of the Pointer 68 fix (not adjustable) Series:

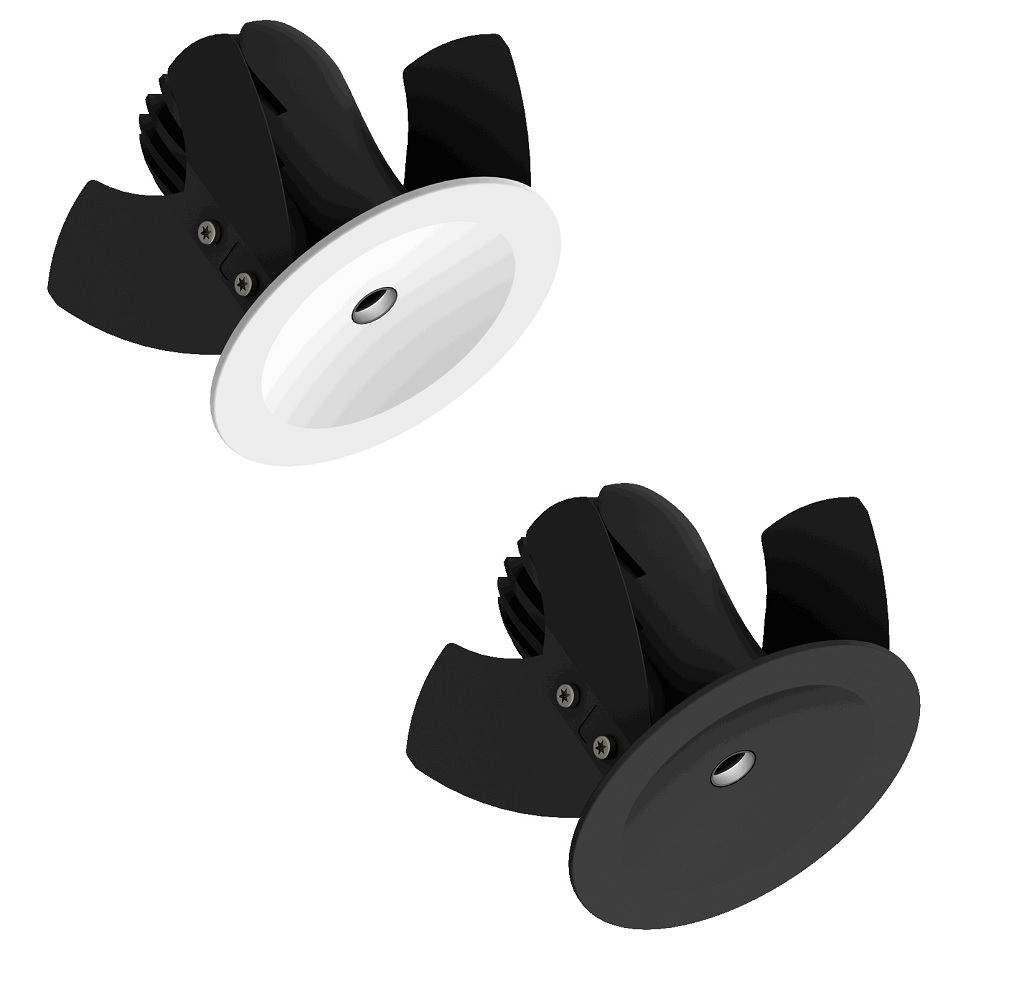

Curtainmatt white RAL 9016 (XX=MW)
 matt black RAL 9005 (XX=BL)
MaterialCases: die-cast aluminium

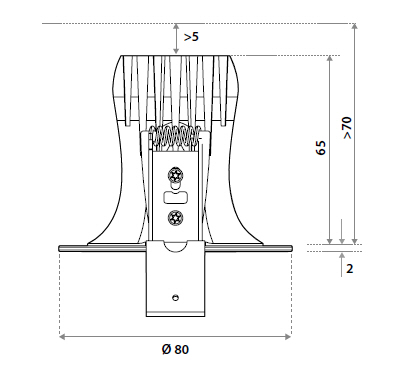

Dimensions90 mm x 67 mm
Hole diameter68-75 mm
Required installation depth> 72 mm
ApplicationInside area
CRI / Ra (typ.)85
Colour consistency (MacAdam)SDCM3
IP CodeIP20 / IP44
IK CodeIK10
Operating temperature (Ta)-20°C / +45°C
Safety signEN60598 / EN62031 / EN62471
EMV DirectiveEN55015
Guarantee7 years
Energy classA

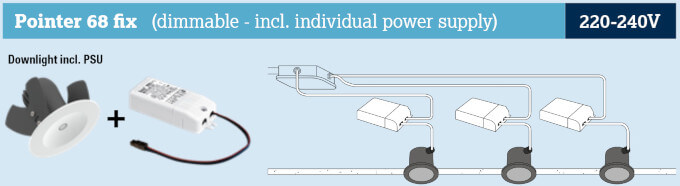

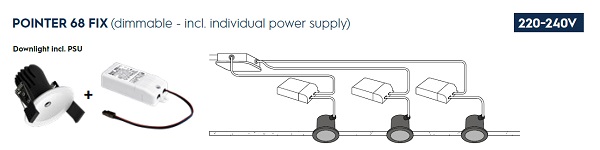

Pointer 68 fix 220-240V

The power supply is already available in this version. This version supports dimming via triac (phase dimming) and DALI. This version is available in 35° and 60° beam angles. In addition, this version is available with the mounting types concrete spring and wire spring.
For further information on Pointer 68 fix 220-240 V please refer to the data sheet.

Product specifications Pointer 68 fix 220-240V:

Article number 0P2803 XX XXXX LN13LP13LQ13LR13LS13LT13 L413
Colour temperature2700 K3000 K4000 K2700 K3000 K4000 K3000 K
Luminous flux500 lm525 lm550 lm550 lm600 lm650 lm600 lm
UGR7,27,37,517,517,818,017,8
Lm/W (with ECG)54576060657165
Emitted beam angle35° (45° FWTM)60° (80° FWTM)

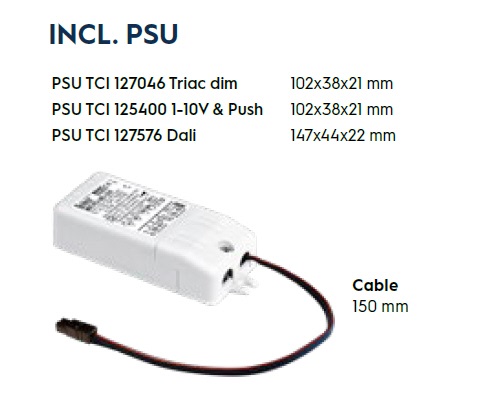

TypeIncl. PSU
Input220-240V
W9,2
Pf0,960,92
Protection classII
Ripple< 20%
Power input current2A 50µS
Power factor9692
DimmabilityTriac (phase dimming)DALI

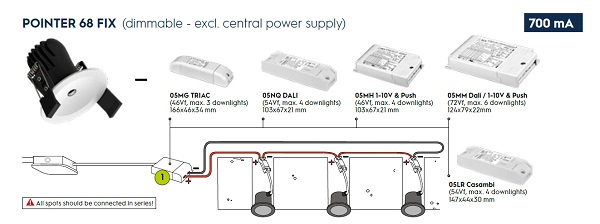

Pointer 68 fix 700mA

This version has extensive dimming capabilities. This is done depending on the selection of the external and additionally required LED driver. These can also be ordered here:  To the overview matching 700mA constant current sources (LED driver).
This version is available in 35° and 60° beam angles. In addition, this version is available with the mounting types concrete spring and wire spring.
Further information on Pointer 68 fix 700 mA can be found in the data sheet.

Product specifications Pointer 68 fix 700mA:

Article number 0P2803 XX XXXX LN11LP11LQ11LR11LS11LT11
Colour temperature2700 K3000 K4000 K2700 K3000 K4000 K
Luminous flux500 lm525 lm550 lm550 lm600 lm650 lm
UGR7,27,37,517,517,818,0
Lm/W (with ECG)636669697581
Emitted beam angle35° (45° FWTM)60° (80° FWTM)

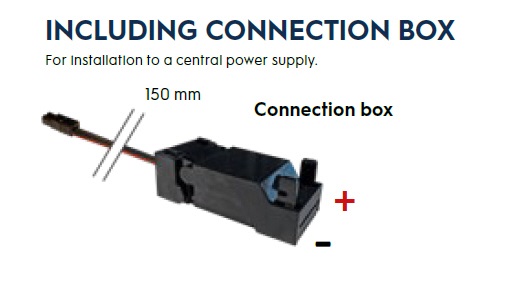

TypeIncl. connection box.
Input700mA
W8,0
Pfx
Protection classIII
DimmabilityAlternative: DALI, 1-10V, Push, Triac(phase dimming) depending on LED driver selection


Data sheets of the downlights Pointer 68 fix-series see Download tab:

Note:

The products of the manufacturer Illuxtron are manufactured individually according to your specifications. This also explains the longer delivery time of 1-3 weeks depending on capacity utilization.

Properties "Pointer 68 fix"
·Application/IP-Code: IP20 - IP44 (Indoor)
·Color Temperature/Color: 2700K, 3000K, 4000K
·Dimmable/Control: 1..10V, DALI, Phase-Cut (Triac), Push-Button
·Hole diameter: 68mm, 75mm
·Lamp shape: Recessed ceiling
Manufacturer "Illuxtron International BV"

The Dutch company Illuxtron International and the Austrian company Bartenbach have joined together in 2015 to develop new products in the field of reflector technology. Both R & D departments participated in the development of "Dark Light" reflectors for the mini downlights and Aviora panels.

Related links of the manufacturer

Datasheet Illuxtron

Pointer 68 fix Gen2

2 of 2 reviews

5 out of 5 stars


100%

0%

0%

0%

0%


Leave a review!

Share your experiences with other customers.


From: Robin Dorsten

13 March 2020 11:04

Tolles Konzept

Haben die Spots bei uns eingesetzt. Besucher sind immer wieder erstaunt. Der Raum ist hell und die Strahler sind durch diese trickreiche Optik kaum wahrnehmbar.

From: Emanuel Anker

16 March 2020 23:35

Faszinierender Spot, keine Streustrahlung an der Decke, d.h. man sieht nicht woher das Licht kommt, unsere Räume werden wunderbar ausgeleuchtet. Habe eine hervorragende Beratung bekommen

In nachfolgenden FAQs finden sich weitere hilfreiche Informationen zur richtigen Auswahl

Recessed ceiling spotlights/downlights are available in many different versions. These parameters primarily define this product family:
  • Hole diameter - We recommend selecting the spots first, then drilling the holes. Otherwise the limitation is predetermined Output
  • Light output in lumens, or wattage. How much light is needed in the room. There is no general answer to this question. Use the following link for the project enquiry
  • Installation depth - usually a mandatory requirement in terms of drill hole depth or distance from suspended ceiling.
  • Color temperature dimmability - We recommend modern options such as DALI or Casambi.
  • Beam angle - For uniform room illumination. Usually determined by the distribution of the spots in the room and the room height.
  • Fastening - Installation in false ceiling or concrete ceiling Glare - Depending on the viewing angle, lower LEDs in the spotlight can often no longer be perceived as a bright point of light, thus ensuring pleasant lighting.

If you have a lighting project and would like to use downlights, please use the link provided for our project enquiry form. We will try to answer all your questions.
