Product information "Pointer 40"
Illuxtron Pointer 40 Gen2
The new era of architectural lighting
Imagine entering a perfectly lit room, but you don't see any light spots anywhere. This is the new era in architectural lighting. And it starts with the Illuxtron Pointer series: a new spotlight, unique lenses, without any glare. All attention here is focused on the room. The light-giving surface of the pointer has a diameter of less than one centimetre, but produces 350 lumens. The result: an almost invisible lighting experience that opens up completely new design possibilities for architects and lighting designers.
Light revolution on 8 millimeters
The Pointer series is completely in the light of the new lenses. They bundle the opening angle in such a way that the light beam is reflected in an hourglass shape. The thinnest part, the focal point, runs exactly through the narrow opening of the spot. A diameter of 8 millimetres is sufficient as a light-giving surface. The spots can also be equipped with an anti-glare ring. In addition to a clean design, this ensures an extremely low UGR value. The light is distributed evenly and harmoniously throughout the room.
The most important technical details of the Pointer 40 Series:
| Casing color | matt white RAL 9016 (XX=MW) |
| matt black RAL 9005 (XX=BL) | |
| Material | housing: die-cast aluminium |
| Dimensions | 47 mm x 68 mm |
| Hole diameter | 40 mm |
| Required installation depth | > 73 mm |
| Application | Inside area |
| CRI / Ra (typ.) | 85 |
| Colour consistency (MacAdam) | SDCM3 |
| IP Code | IP20 / IP44 |
| IK Code | IK10 |
| Operating temperature (Ta) | -20°C / +45°C |
| Safety sign | EN60598 / EN62031 / EN62471 |
| EMV Directive | EN55015 |
| Guarantee | 7 years |
| Energy class | A |

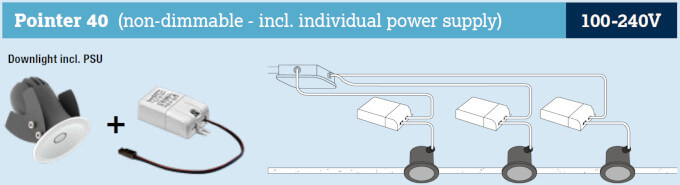

Pointer 40 100-240V
This version is only switchable, dimming is not possible. This version is available in 35° and 60° beam angles.
For further information about Pointer 40 100-240 V please refer to the data sheet.
Product specifications Pointer 40 100-240V:
| article number 0N2703XX-XXXX | LG13 | LH13 | LJ13 | LK13 | LL13 | LM13 |
| Colour temperature | 2700 K | 3000 K | 4000 K | 2700 K | 3000 K | 4000 K |
| Luminous flux | 350 lm | 375 lm | 400 lm | 400 lm | 425 lm | 450 lm |
| UGR | 7,4 | 7,6 | 7,9 | 17,8 | 18,0 | 19,2 |
| Lm/W (with ECG) | 53 | 57 | 61 | 61 | 64 | 68 |
| Emitted beam angle | 35° (45° FWTM) | 60° (80° FWTM) | ||||
| Type | Incl. PSU | |||||
| Input | 100-240V | |||||
| W | 6,6 | |||||
| Pf | 0,6 | |||||
| Protection class | II | |||||
| Ripple | < 3% | |||||
| Input current | 20A 170µS | |||||
| Power factor | 60 | |||||
| Dimmability | No | |||||

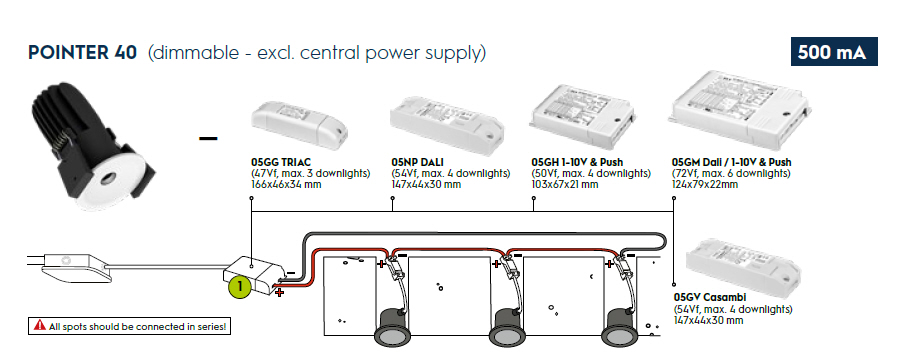

Pointer 40 500mA
This version has the extensive possibilities for dimming. This depends on the selection of the external and additionally required LED driver. You can order these additionally here: To the overview matching 500mA constant current sources (LED driver).
This version is available in 35° and 60° beam angles.
For further information on Pointer 40 500 mA please refer to the data sheet.
Product specifications Pointer 40 500mA:
| Article number 0N2703XX-XXX | LG11 | LH11 | LJ11 | LK11 | LL11 | LM11 |
| Colour temperature | 2700 K | 3000 K | 4000 K | 2700 K | 3000 K | 4000 K |
| Luminous flux | 350 lm | 375 lm | 400 lm | 400 lm | 425 lm | 450 lm |
| UGR | 7,4 | 7,6 | 7,9 | 17,8 | 18,0 | 19,2 |
| Lm/W (with ECG) | 53 | 57 | 61 | 61 | 64 | 68 |
| Emitted beam angle | 35° (45° FWTM) | 60° (80° FWTM) | ||||
| Type | Incl. connection box. | |||||
| Input | 500mA | |||||
| W | 5,7 | |||||
| Pf | 0,6 | |||||
| Protection class | III | |||||
| Dimmability | Alternative: DALI, 1-10V, Push, Triac (phase dimming) depending on LED driver selection | |||||
Data sheets of downlights Pointer 40-series see Download tab:
Note:
The products of the manufacturer Illuxtron are manufactured individually according to your specification especially for you. This also explains the longer delivery time of 1-3 weeks depending on the load.
| ·Application/IP-Code: | IP20 - IP44 (Indoor) |
|---|---|
| ·Color Temperature/Color: | 2700K, 3000K, 4000K |
| ·Dimmable/Control: | 1..10V, DALI, Phase-Cut (Triac), Push-Button |
| ·Hole diameter: | 40mm |
| ·Lamp shape: | Recessed ceiling |
ILLUXTRON
with over 50 years of knowledge and experience in the lighting industry, the company has become a leading supplier of high-quality LED lighting products. This manufacturer produces customised lighting solutions according to customer requirements.
For more than 10 years we have been offering products from the manufacturer ILLUXTRON worldwide. Below is our portfolio of products. Tip: Use the filter function to quickly find the driver you need, or give us a call.
ILLUXTRON
Mercuriusweg 19 - 4382 NC Vlissingen - Netherland
E-Mail: sales@illuxtron.com
Login
1 May 2020 01:19
Konzept einzigartig gut
Der Raum ist hell und man sieht es nicht. Die Optik ist echt gut realisiert. Licht tritt genau im Brennpunkt aus. Man wird nicht geblendet.
- Hole diameter - We recommend selecting the spots first, then drilling the holes. Otherwise the limitation is predetermined Output
- Light output in lumens, or wattage. How much light is needed in the room. There is no general answer to this question. Use the following link for the project enquiry
- Installation depth - usually a mandatory requirement in terms of drill hole depth or distance from suspended ceiling.
- Color temperature dimmability - We recommend modern options such as DALI or Casambi.
- Beam angle - For uniform room illumination. Usually determined by the distribution of the spots in the room and the room height.
- Fastening - Installation in false ceiling or concrete ceiling Glare - Depending on the viewing angle, lower LEDs in the spotlight can often no longer be perceived as a bright point of light, thus ensuring pleasant lighting.
If you have a lighting project and would like to use downlights, please use the link provided for our project enquiry form. We will try to answer all your questions.
