500mA LED Driver for Illuxtron Pointer Series 7W

Variants from 65.45€ *
Net price: 55.00€

Prices incl. VAT plus shipping costs

Please select a variant first



  • 3631-05GG03MLME00
  • 05GG03MLME00
  • 0.162 kg
  • 8716197048894
  • Illuxtron International BV
500mA constant current driver for Illuxtron Downlights Pointer 40 and Pointer 68 (adjustable)... more

500mA constant current driver for Illuxtron Downlights Pointer 40 and Pointer 68 (adjustable)

Illuxtron exclusively uses 500mA constant current drivers from renowned manufacturers. The service life of LED constant current drivers significantly determines the service life of a lighting system, as well as the flicker of LED luminaires.

Illuxtron pays attention to the following properties with regard to the 500mA constant current sources:
  • Conformity with health standards
  • suitability for photo and video
  • overvoltage protection
  • Higher luminous efficacy thanks to ripple-free drivers
  • Protection against overheating
  • Adherence to EU standards
Other details for Illuxtron LED Power Supplies

Dimmability and use of 500mA CC power supplies

For operating the Illuxtron Pointer Downlights the manufacturer offers different 500mA LED drivers.
The advantage of serial wiring lies in the best possible dimmability by means of constant current control and the associated high efficiency for best efficiency of the overall system.
The number of possible luminaires per power supply depends on the performance of the respective ballast. Here we offer different versions of different manufacturers and designs. The sum of all forward voltages of the LED spots is decisive. This must be smaller than the max. Vf  (see table) of the LED driver.

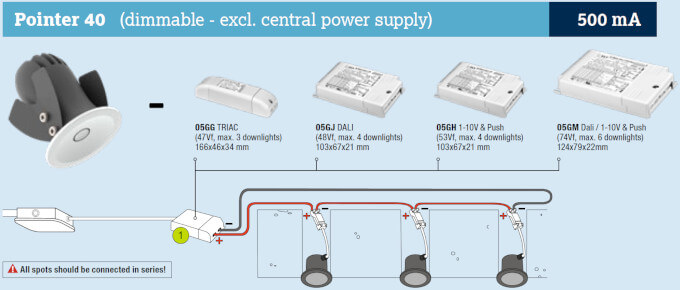

Pointer 40-500mA

Technical data of the constant current drivers for 500 mA:

Description PSU 32W 500mA Triac PSU 32W 500mA Dali PSU 32W 500mA 1-10V & Push PSU 50W 500mA DALI / 1-10V & Push
Article number 05GG03MLME00 05GJ03MLME00 05GH03MLME00 05GM03MLME00
Watt 32 W (47Vf) 32 W (48Vf) 32 W (53Vf) 50 W (74Vf)
Current intensity 500 mA
Efficiency 85% 87% 88% 89%
Pf 0,97 0,95 0,95 0,95
Ripple n/a < 3%
Input voltage 220-240 V
Weight 162 g 134 g 110 g 206 g
Input current 5A 50µS 5A 50µS 5A 50µS 20A 400µS
B-16A Fuse 50 pcs 50 pcs 50 pcs 15 pcs
Dimensions mm 166x46x34 103x67x21 103x67x21 124x79x22

Application possibilities

The constant current drivers are suitable for the downlights Pointer 40 and Pointer 68 (adjustable).
Data sheets of the constant current drivers see Download Tabs:
Related links to "500mA LED Driver for Illuxtron Pointer Series 7W"
500mA constant current sources suitable for Illuxtron Pointer 40 and Pointer 68 (adjustable) more
Features/tags of this product family. Please refer about the details in the description or datasheet.
Dimmable/Control: 1..10V, DALI, Phase-Cut (Triac), Push-Button
Datasheet PSU
For 500mA Version
