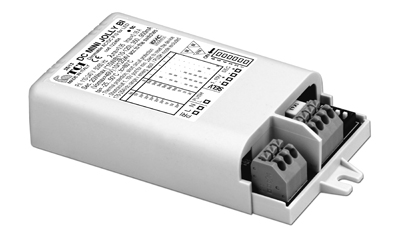

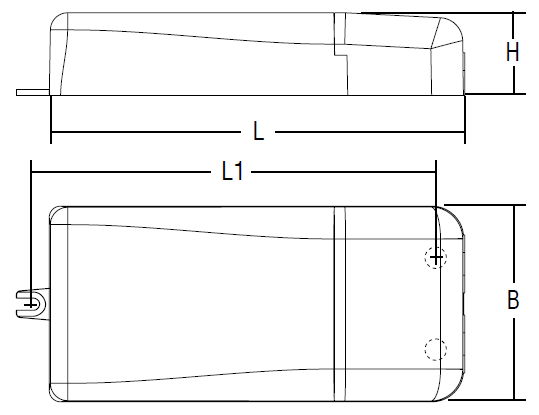

LED driver DC Mini Jolly 125400/125404 | 151400/151404

Proven LED driver 20W | 1-10V/touch dimming | 250mA - 900mA adjustable, (24V) | With strain relief or also as flush mount Version

TCI #125400/125404 and 151400/151404 are the new Mini Jolly | with hybrid dimming flicker optimized or completely flicker free with AM Control.

DC Mini Jolly is considered to be the "little brother" of the LED driver DC Maxi Jolly and fits through 68mm ceiling holes for e.g. recessed luminaires with LED.

  • Multi-current or multi-voltage converter - universally applicable
  • flicker (output ripple) <= 3%

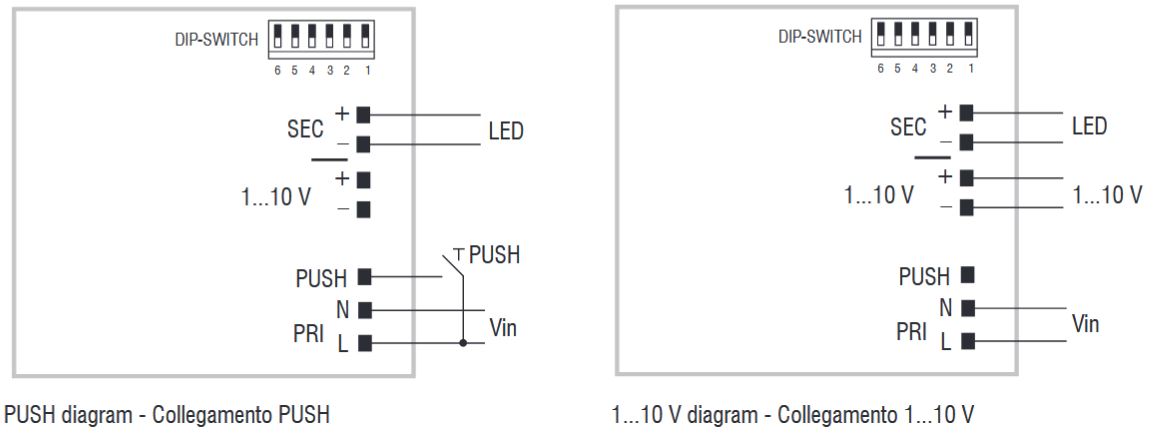

  • Control via 1-10V interface or push button
  • On/Off with a short key press, brightness change via held button
  • available in different versions (PWM, Hybrid, AM)

TCI 125400/125404 (20W) is the technologically improved successor of the #123400 and its innovation is the combination of PWM and AM control. This so-called hybrid control ensures absolutely flicker-free light in the range of 100% - 25% by linear control. Only in the range below 25% to 1% the known PWM control is switched over. Thus the advantages of both methods are used.
By removing a jumper (JP4) you can switch back to "PWM-only" (incl. activation of constant voltage mode). (see 123400).
In addition, further setting options for the currents have been added.


TCI 151400/151404 (20W) is a pure linear controller. The LED current can be dimmed linearly (AM) from 100% to 1%. Perfectly suited for use with Dim2Warm.
Attention: No constant voltage operation adjustable.

Please also read this technical article about PWM/AM/Hybrid dimming modes.

As a proven multi-current converter - universally applicable. Also available as Built-In version (125404, 151404)

TCI 151404 and 151400 are ripplefreeDimmable over 1-10V and Push Button for MinijollyFunctions for TCI 125400

TCI 125400 / TCI 125404 / TCI 151400 / TCI 151404

Dip-SW Performance Spg. sec Current sec # LED
Position 1 13 W 20...53 V 250mA const max 15
Position 2 15 W 20...52 V 300mA const max 14
Position 3 18 W 15...50 V 350mA const max 14
Position 4 20 W 15...50 V 400mA const max 14
Position 5 20 W 5...45 V 450mA const max 12
Position 6 20 W 5...40 V 500mA const max 11
Position 7 20 W 3...37 V 550mA const max 10
Position 8 20 W 3...34 V 600mA const max 9
Position 9 20 W 3...31 V 650mA const max 8
Position 10 20 W 3...29 V 700mA const max 8
Position 11 20 W 3...27 V 750mA const max 7
Position 12 20 W 3...25 V 800mA const max 7
Position 13 20 W 3...24 V 850mA const max 6
Position 14 20 W 3...23 V 900mA const max 6
Position 15* 10 W 12 V constant 830mA max -
Position 16* 20 W 24 V constant 900mA max -

*digit 15/16 only available for 125400/125404 (Remove JP4 for this)

Efficiency as a function of power:  84%  - 91%
Flicker ( Output Ripple ) <= 3%

New version of TCI 123400

Buttons and installation material are not included.

For detailed description, please refer to the data Sheets.

History (predecessor) of this proven TCI DC Mini Jolly 20W

TCI 123400 (formerly 122400) with 20 Watt. Constant current, resp. voltage. All adjustable via dip switches.
(123400 is identical successor of 122400 and already complies with the Ecodesign Directive).
The LED current is controlled via pulse width modulation (PWM) without exception.
