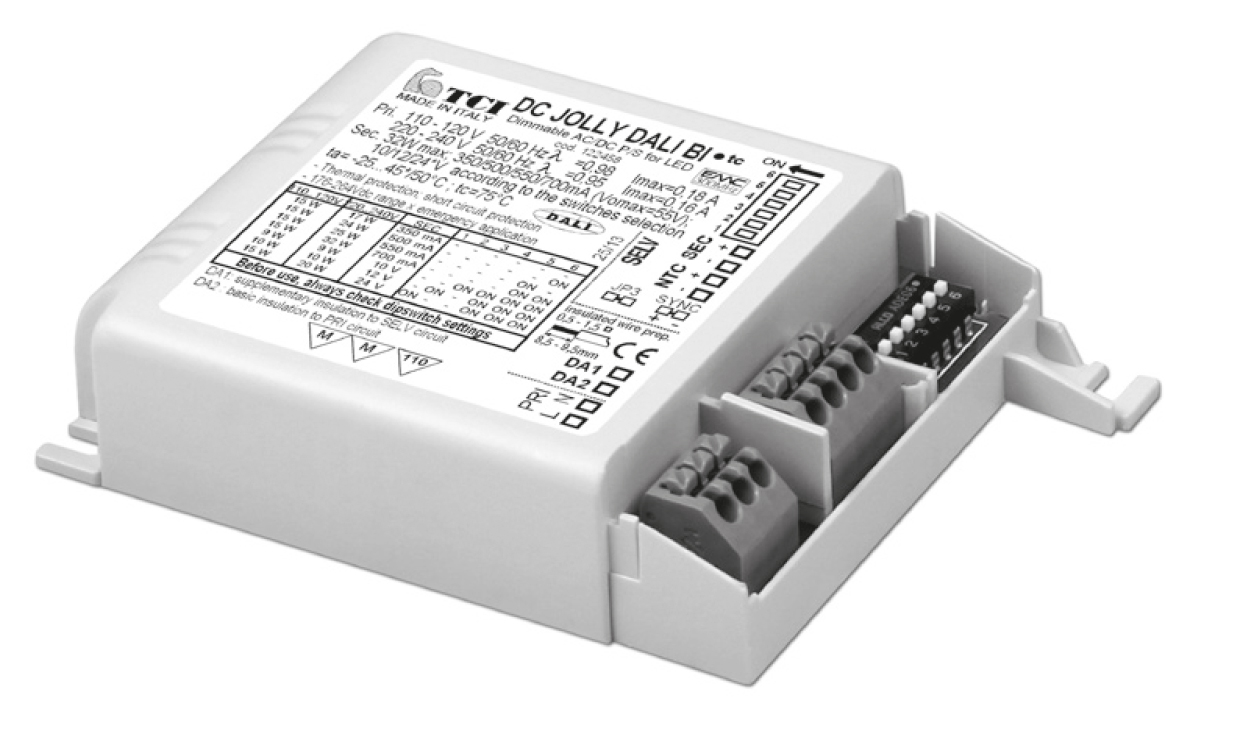

TCI DC Jolly DALI LED driver; dimmable; 32W
The little brother of the "Maxi Jolly DALI" is considered as a link between the LED drivers: Mini and Maxi Jolly.
Suitable for 68mm ceiling holes for e.g. ceiling installation of LED spots. (With sufficient ceiling distance!)
- TCI DC Jolly: Universally dimmable via DALI
- Easily adjustable constant current or constant voltage via dip-switch.
- Universally applicable multi-current or multi-voltage converter.
- Flicker ( Output Ripple ) <= 3%
- Available in different versions (PWM, Hybride, AM)
TCI 123424 (formerly 122424) with up to 32 Watt. Constant current or voltage. All adjustable via dip-switches.
(123424 is the identical successor to the 122424 and thus complies with the Ecodesign Directive)
The LED current is regulated without exception via pulse width modulation (PWM).
TCI 125424 (up to 32W) is the technologically improved successor of the #123424 and its innovation is the combination of PWM and AM control. This so-called hybrid control ensures absolutely flicker-free light in the range of 100% - 25% by linear control. Only in the range below 25% to 1% the known PWM control is switched over. Thus the advantages of both methods are used.
By short-circuiting the NTC input when switching on, it is possible to switch between "PWM-only" including activation of constant voltage mode (compare 123424) and hybrid mode. Confirmation by single flashing (PWM), double flashing (hybrid)
TCI 151424 (up to 32W) is a pure linear controller. The LED current can be dimmed linearly (AM) from 100% to 1%. Perfectly suited for use with Dim2Warm.
Attention: No constant voltage operation adjustable.
As a proven multi-current converter - universally applicable. Also available as Built-In version (123458, 125458, 151458).
|Dip-SW||Power Out||Voltage Out||Current Out|
|Position 1||12 W||10...48 V max.||250mA const.|
|Position 2||14 W||10...48 V max.||300mA const|
|Position 3||17 W||5...48 V max.||350mA const|
|Position 4||19 W||5...48 V max.||400mA const|
|Position 5||22 W||5...48 V max.||450mA const|
|Position 6||24 W||5...48 V max.||500mA const|
|Position 7||26 W||3...48 V max.||550mA const|
|Position 8||29 W||3...48 V max.||600mA const|
|Position 9||31 W||3...48 V max.||650mA const|
|Position 10||32 W||3...46 V max.||700mA const|
|Position 11||10 W||12 V constant||900mA max|
|Position 12||20 W||24 V constant||830mA max|
Efficiency depending of the power: 20W - 32W: 84% - 91%

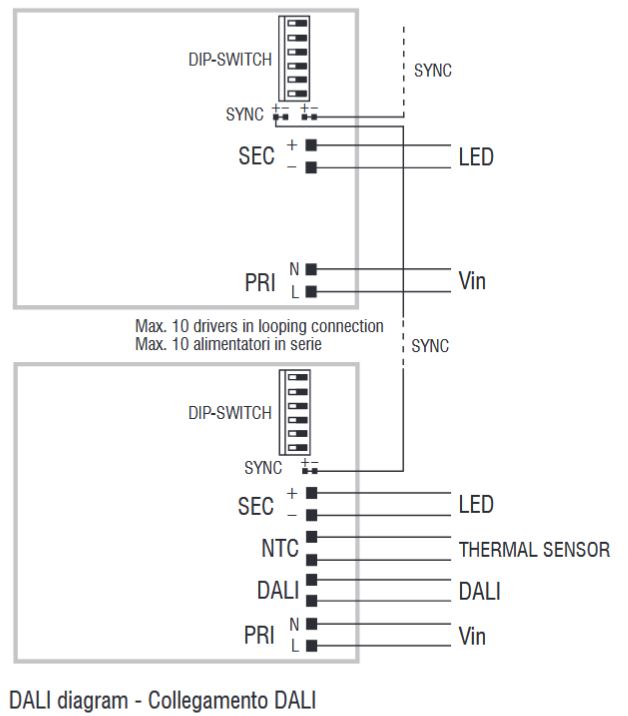

- DC Jolly DALI, as all TCI converters can be connected to each other via sync-cable. Thus, the control over only one button is possible.
- Maximum 10 drivers synchronization, is possible command only one driver (1 Master + 9 Slaves).
- Button and installation materials are not included in delivery.
- Savings tip: Master as DALI and the slaves use the cheaper variant DC Jolly without DALI.

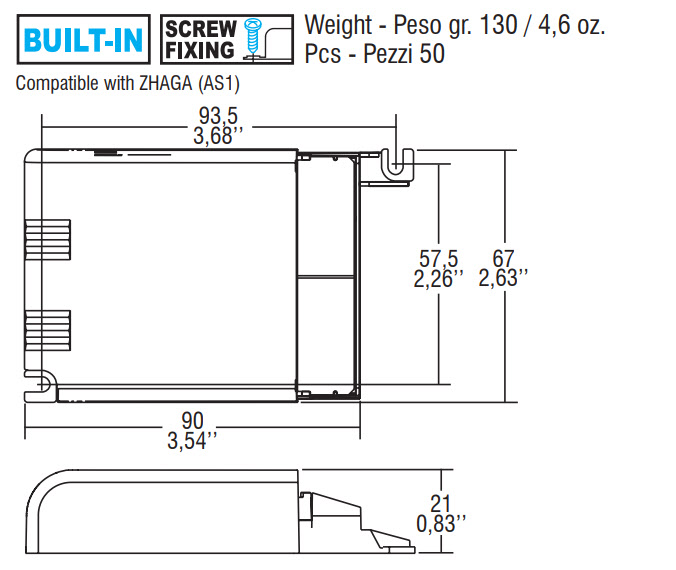

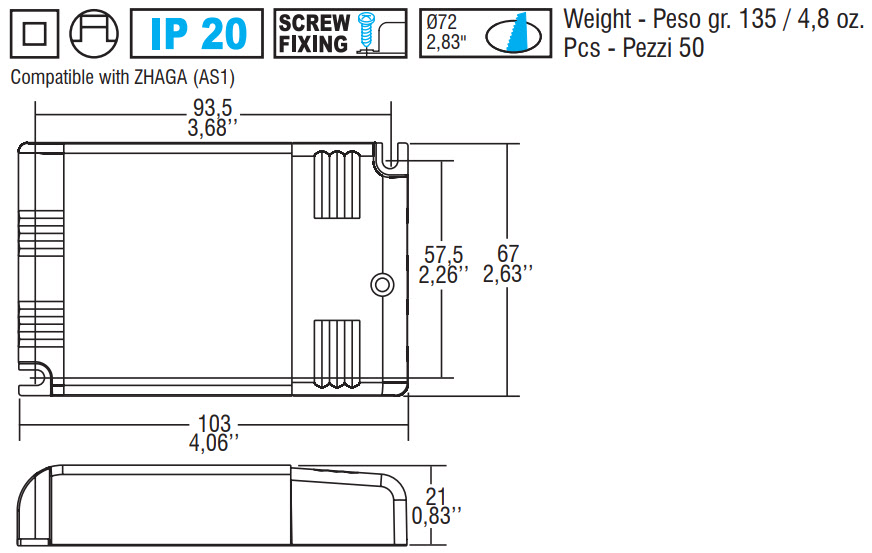

On request, this product is also available as a built-in version (ideal for device installation) with a modified design (see data sheet).
For detailed description please refer to the data sheet.
|Application/IP-Code:||IP20 - IP44 (Indoor)|
|Constant Current:||0,3A, 0,4A, 0,5A, 0,6A, 0,7A, 0,25A, 0,35A, 0,45A, 0,55A, 0,65A|
|Power range:||5 - 20 W, 20 - 50 W|
