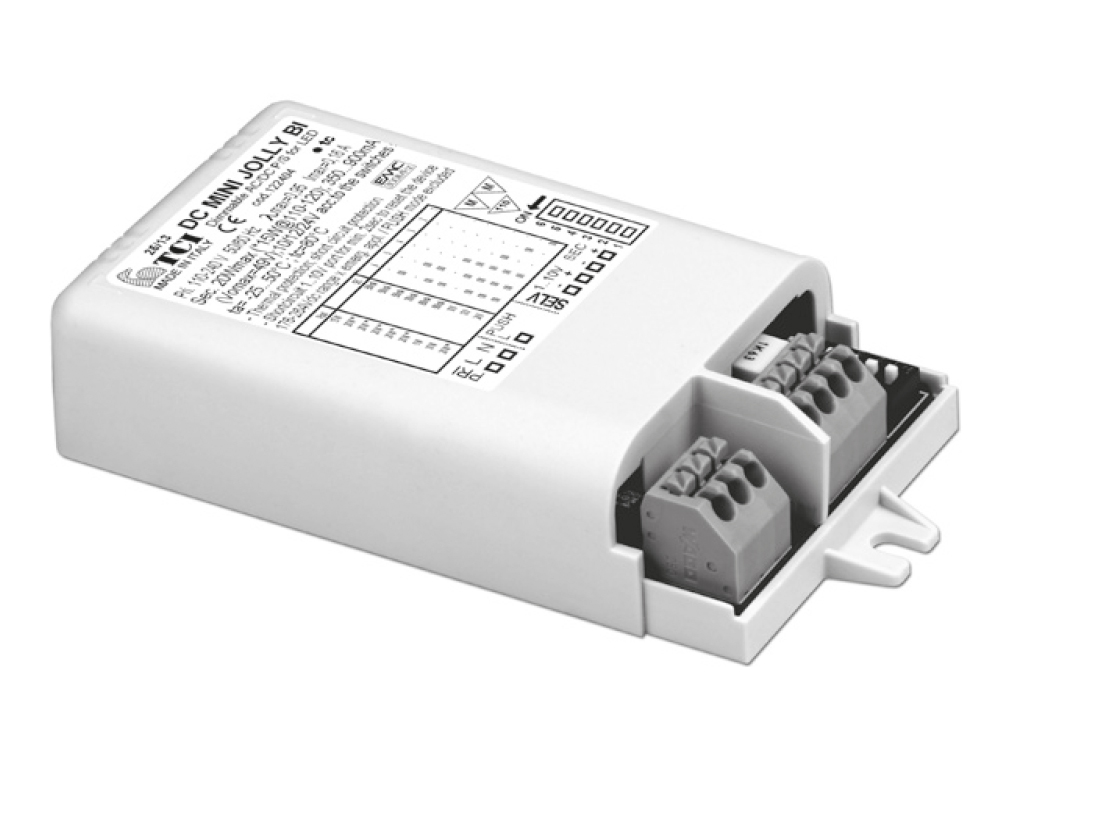

DC Mini Jolly LC
- Order number: 2957-123401
- Hersteller-Nr.: 123401
- Weight: 0.11 kg
- GTIN/EAN: 8010703374355
- Manufacturer: TCI
DC Mini Jolly LC 1-10V & Push - Constant current source for small currents dimmable... more
DC Mini Jolly LC 1-10V & Push - Constant current source for small currents dimmable
The TCI Driver 123401 Low Current can supply a constant current from 100mA to 380mA (in 8 steps via Dip-switch). In addition, it has a dip switch position to operate with 24 Volt constant voltage.
Dimming via 1-10V & push-button function.
- Multi-current or multi-voltage converter - universally applicable
- Flicker (output ripple) <= 3%
- Control via 1-10V interface or button
- On/Off with a short key press, brightness change via held button
(TCI 123401, successor to the 122401) is protected against
- Overheating
- Short circuits
- Mains voltage spikes
- Overloads
- Class II protection against electric shock
Built in version (TCI 123401 BI, ex 122401 BI):
- Modified design
- Ideal for device installation
- Suitable for lighting equipment of protection classes I and II
Version TCI 123401 has a terminal cover incl. strain relief
Dip switch overview with power, current and max. Voltage (TCI 1234012/ TCI 123401BI)
| Dip-SW | Power | Voltage out | Current out | # LED |
|---|---|---|---|---|
| Position 1 | 5,3 W | 20...53 V | 100mA const. | max. 15 |
| Position 2 | 7,5 W | 10...53 V | 140mA const. | max. 15 |
| Position 3 | 9,5 W | 2...53 V | 180mA const. | max. 15 |
| Position 4 | 12 W | 2...53 V | 220mA const. | max. 15 |
| Position 5 | 14 W | 2...53 V | 260mA const. | max. 15 |
| Position 6 | 16 W | 2...53 V | 300mA const. | max. 15 |
| Position 7 | 18 W | 2...53 V | 340mA const. | max. 15 |
| Position 8 | 20 W | 2...53 V | 380mA const. | max. 15 |
| Position 9 | 9 W | 24 V const. | 380mA max | - |
Efficiency of the 1-10V & Push constant current source as a function of power: >87%
Buttons and installation material are not included.
For detailed description please refer to the data sheet.
Related links to "DC Mini Jolly LC"
Low Current LED Driver 1-10V & Push constant current source 100mA to 380mA via... more
Features of the product family. Details on variants can be found in the description.
| Constant Voltage: | 24V |
| Constant Current: | 100mA, 140mA, 180mA, 220mA, 260mA, 300mA, 340mA, 380mA |
| Power: | 9W, 12W, 16W, 20W |
| Dimmable/Control: | 1..10V, Linear/AM, Push-Button |
