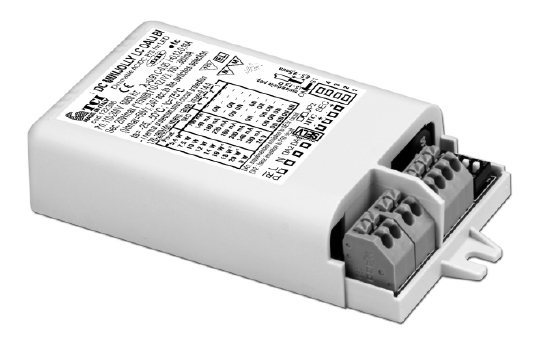

DC Mini Jolly LC DALI | 123395 | 151395

Product information "DC Mini Jolly LC DALI | 123395 | 151395"

DC Mini Jolly LC DALI - constant current source 100mA - 380mA, for low currents, dimmable

The TCI driver 123395 (PWM) and 151395 (AM version) low current with 20 Watt can be operated via dip switch in 8 steps from 100mA to 380mA constant current.

In addition, a dip switch position is available for operation with 24 volts constant voltage.

Multi-current or voltage converter - DC Mini Jolly LC DALI

This driver is currently available in four versions, corresponding to device installation (Built-In) without or with strain relief, e.g. for use in false ceilings.
In terms of dimming, this driver is available with pulse width modulation (PWM) or with linear control (AM = amplitude modulation) for flicker-free light.

(TCI 123395 / 151395, successor to the 122395) is protected against

  • Overheating
  • Short circuits
  • Mains voltage spikes
  • Overloads
  • Class II protection against electric shock

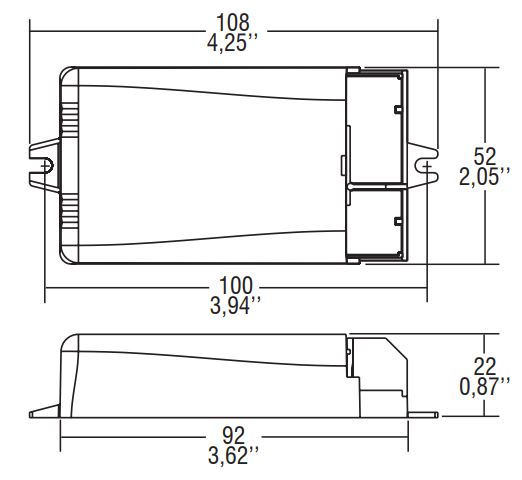

Built in version (TCI 123396, 151396):

  • Modified design
  • Ideal for device installation
  • Suitable for lighting equipment of protection classes I and II

constant current source 100mA TCI DC Mini Jolly LC DALIconstant current source 140mA TCI DALIconstant current source 100mA TCI DC constant voltageconstant current source 180mA TCI DC Mini Jolly LC DALI

Dip-SWPowerVoltage outCurrent out# LED
Position 15,3 W10...53 V100mA const.max. 15
Position 27,5 W10...53 V140mA const.max. 15
Position 39,5 W10...53 V180mA const.max. 15
Position 412 W10...53 V220mA const.max. 15
Position 514 W10...52 V260mA const.max. 15
Position 616 W10...52 V300mA const.max. 15
Position 718 W10...51 V340mA const.max. 15
Position 820 W10...51 V380mA const.max. 15
Position 99 W24 V const.380mA max-

Flicker ( Output Ripple ) <= 3%
Efficiency of the DALI constant current source as a function of power: >88%

constant current source 300mA DC Mini Jolly LC DALI

History (predecessor)

Article TCI 123395 is the predecessor of article TCI 151395

Article TCI 123396 is the predecessor of article TCI 151396

For detailed description please refer to the data sheet.

Properties "DC Mini Jolly LC DALI | 123395 | 151395"
·Constant Current: 0,1A, 0,14A, 0,18A, 0,22A, 0,26A, 0,3A, 0,34A, 0,38A
·Dimmable/Control: DALI
·Power range: 5 - 20 W
·Constant Voltage: 24V
Manufacturer "TCI TELECOMUNICAZIONI ITALIA S.R.L."

TCI TELECOMUNICAZIONI ITALIA S.R.L. (TCI Saronno)

is one of the leading manufacturers based in Italy and known for a wide range of LED converters, electronic ballasts and LED drivers. TCI attaches great importance to quality and reliability. Experience and trustworthiness are the keys to TCI's success.
For more than 10 years we have been offering more than 100 products from the manufacturer in Saronno/Italy (TCI IT) for Germany and Europe.

Below is our portfolio of products. Tip: Use the filter function to quickly find the driver you need, or give us a call.

Related links of the manufacturer

Datasheet TCI 123395, 123396
datasheet TCI 151395, 151396

AM-Version (flickerfree)
