TCI DC JOLLY US 32 |1-10 V & PUSH | 126421 | 151421

Product information "TCI DC JOLLY US 32 |1-10 V & PUSH | 126421 | 151421"

LED driver DC Jolly up to 32W dimmable via push button or 1-10V

Suitable for 68mm ceiling holes for e.g. ceiling installation of LED spots.

  • TCI DC Jolly: Universally dimmable over 1-10V
  • Touch dimmer input of the DC Jolly
    On/Off by briefly pressing the button, changing the brightness with the button held down.
  • Easily adjustable constant current or voltage via dip-switches.
    Thus a universally applicable multi-current or multi-voltage converter.
  • Flicker (output ripple) <= 3%
  • available in different versions (PWM, Hybrid, AM)

The Jolly US 32 can be used for to 32 watts power. Current versions offer PWM, Hybrid (AM+PWM) and AM-only regulation/dimming.

TCI 126421 (up to 32W) is the technologically improved successor of #125421. (Previous models in short description see below). Its innovation is the combination of PWM and AM control. This so-called hybrid control ensures absolutely flicker-free light in the range of 100% - 25% by linear control. Only in the range below 25% to 1% is there a switchover to the familiar PWM control. Thus the advantages of both methods are used.

By removing a jumper (JP3) it is possible to switch back to "PWM-only" (incl. activation of constant voltage operation). (see 125421).
In addition, further setting options for the currents have been added.

TCI 151421 (up to 32W) is a pure linear controller. The LED current can be dimmed linearly (AM) from 100% to 1%. Perfectly suitable for Dim2Warm.

Attention: No constant voltage operation adjustable as well as no operation with synchronization lines (Master-Slave) possible.

Please also read this technical article about PWM/AM/Hybrid dimming modes.

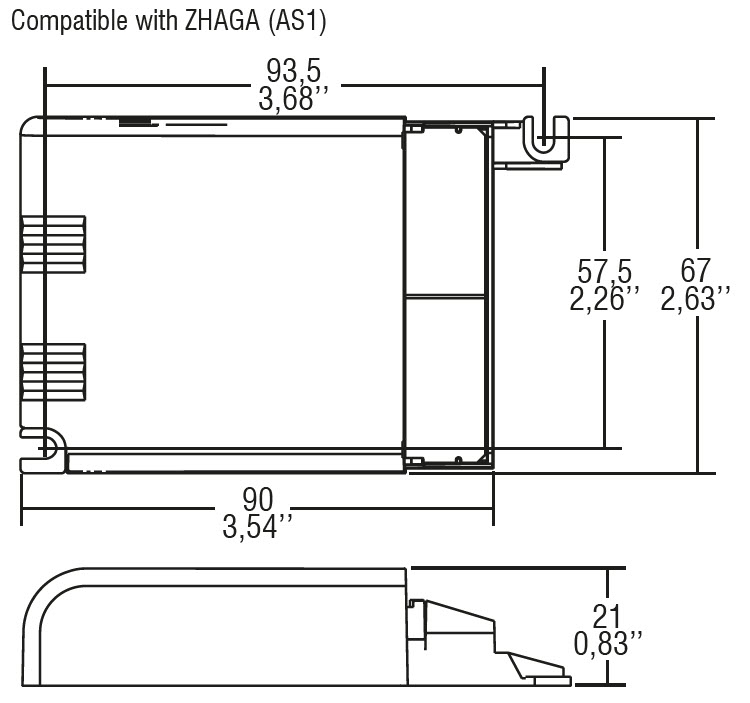

As a proven multi-current converter - universally applicable. Also available as Built-In version (TCI 126450, TCI 151450)

Setting options of the DC Jolly series

DC-Jolly US 32

Dip-SWPerformanceSpg. secCurrent sec# LED
Position 113 W15...53 V250mA const.15
Position 216 W15...53 V300mA const.15
Position 318 W10...53 V350mA const15
Position 421 W    10...53 V400mA const.15
Position 523 W5...52 V450mA const.15
Position 625 W2...50 V500mA const.14
Position 727 W2...50 V550mA const.14
Position 830 W2...50 V600mA const.14
Position 932 W 2...49 V650mA const.14
Position 1032 W2...46 V700mA const.13
Position 1120 W2...27 V750mA const.7
Position 1220 W2...25 V800mA const.7
Position 1320 W2...24 V850mA const.6
Position 1420 W2...22 V900mA const.6
Position 15*11 W12 V const.900mA max.-
Position 16*20 W24 V const.830mA max.-

*Position 15/16 only available for devices with PWM/Hybrid (Remove JP3 for this)
Efficiency (max.) depending on power: >88%
Flicker ( Output Ripple ) <= 3%

Pushbutton and installation material are not included in the package.

History ( predecessor ) of the approved LED driver DC Jolly 1-10V & PUSH

TCI 122420 with up to 25 Watt. constant current, or -voltage. Everything adjustable via dip switches. The LED current is regulated without exception via pulse width modulation (PWM) ( discontinued - successor 126421)

TCI 122421/123421 with up to 32 Watt. Almost identical to the 122420 with slightly higher power and wider setting ranges for the constant currents and constant voltage outputs ( discontinued - successor 126421)

TCI 125421 with up to 32 Watt. Almost identical to the 123421 but with considerably more setting ranges for the constant currents ( discontinued - successor 126421)

For a detailed description of the DC Jolly please refer to the corresponding data sheets.
See tab DOWNLOADS

Properties "TCI DC JOLLY US 32 |1-10 V & PUSH | 126421 | 151421"
·Power range: 5 - 20 W, 20 - 50 W
·Dimmable/Control: 1..10V, Linear/AM, PWM, Push-Button
·Constant Current: 0,25A, 0,3A, 0,35A, 0,4A, 0,45A, 0,5A, 0,55A, 0,6A, 0,65A, 0,7A, 0,75A, 0,8A, 0,85A, 0,9A
·Constant Voltage: 10V, 12V, 24V
Manufacturer "TCI TELECOMUNICAZIONI ITALIA S.R.L."

TCI TELECOMUNICAZIONI ITALIA S.R.L. (TCI Saronno)

is one of the leading manufacturers based in Italy and known for a wide range of LED converters, electronic ballasts and LED drivers. TCI attaches great importance to quality and reliability. Experience and trustworthiness are the keys to TCI's success.
For more than 10 years we have been offering more than 100 products from the manufacturer in Saronno/Italy (TCI IT) for Germany and Europe.

Below is our portfolio of products. Tip: Use the filter function to quickly find the driver you need, or give us a call.

Related links of the manufacturer

Switch-Dim Resync Manual
Datasheet TCI DC Jolly 125421

JOLLY US 32 - 1...10 V &amp; PUSH - Nachfolger des 122421 / 123421

DC Jolly 32W (AM/PWM)

Datenblatt zu TCI #126421 bzw. TCI #151421 (bzw. #126450 / #151450) - Hybrid-Dimmung bzw. AM-Dimmung
