conductor railsystem with data-bus ONETRACK DALI

Variants from 56.53€ *
Net price: 47.50€
Content: 1 Meter

Prices incl. VAT plus shipping costs

Please select a variant first

Length:

colour:


Meter

  • A575-10-1N
  • 575-101N
  • ALS GmbH
ONETRACK track system for all ALS DALI track lights, with data bus NEW: Eutrac changes its... more

ONETRACK track system for all ALS DALI track lights, with data bus

NEW: Eutrac changes its DALI rail system - ONETRACK by EUTRAC REPLACES EUTRAC 3 WITH DATA BUS

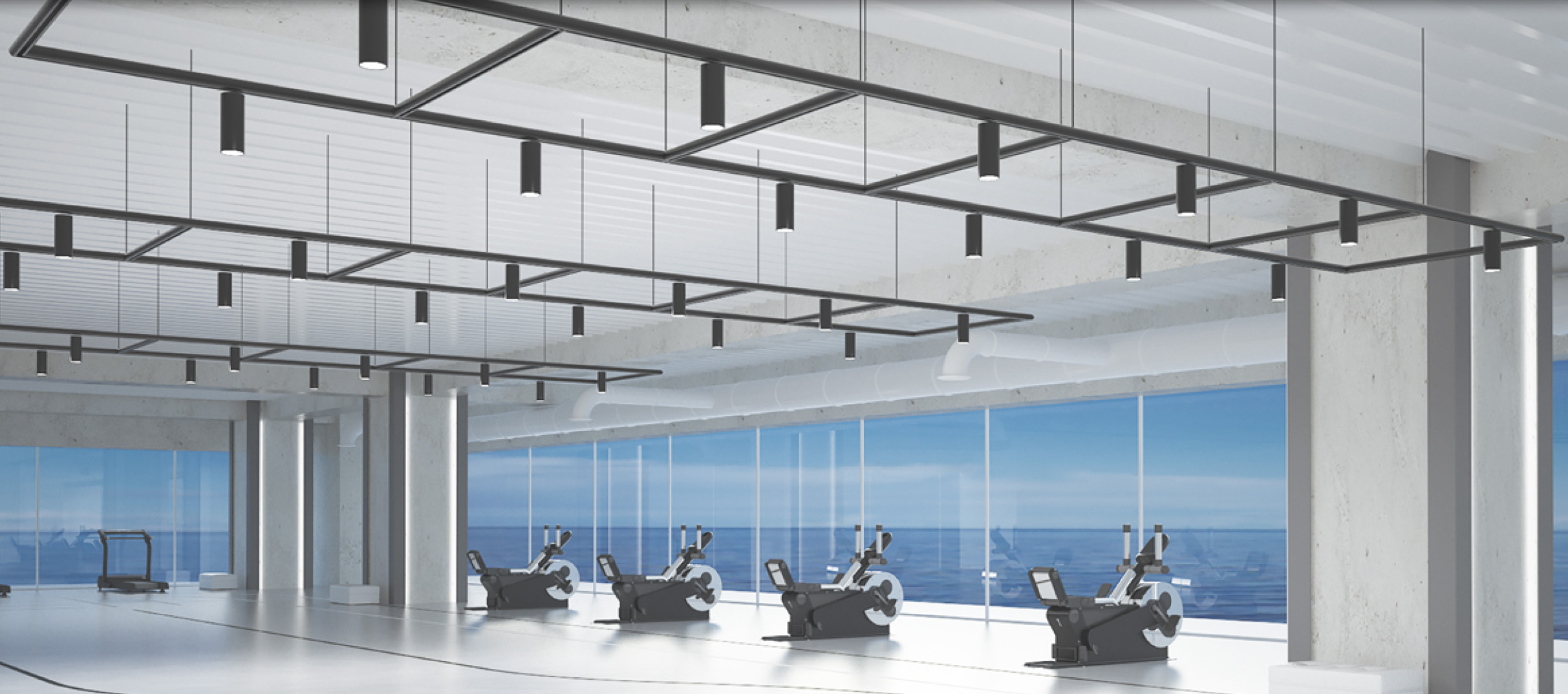

The shape of the new ONETRACK power rails is based on the proven EUTRAC design and enables the use of the previous EUTRAC adapter. The ONETRACK DALI busbar system is ideal for the individual illumination of your premises for restaurants, shops, exhibitions and much more.

Attention: Please note the compatibility of DALI spotlights with the respective track systems (ONETRACK new, TRACK previously).

Thanks to the integrated DALI data bus, all dimming and scene options or grouping of the track spotlights used are available.
Depending on the design of the busbar architecture, various electrical connectors for the function and various mounting accessories are provided.
You can access all of the options offered directly via the links below and via the Recommendation tab.
To simplify matters, we have created practical examples below to help you with configuration.

Technical features of the track system:

  • Extruded aluminium profile
  • Lengths from 1m to 4m selectable
  • flush adapter available with and without ballast
  • Ceiling mounted or pendant installation
  • Traffic white RAL9016 or painted coated, or silver anodized
  • Forward-looking 3-phase power rail with internal data bus ((DALI, DMX, others)
  • Pre-punched slotted holes for installation
  • Adaption of length by sawing
  • 220-240 V
  • Protection class: 1
  • Test certificate: CE
  • Weight: 1 KG/Meter
  • Surface: Die-cast aluminum

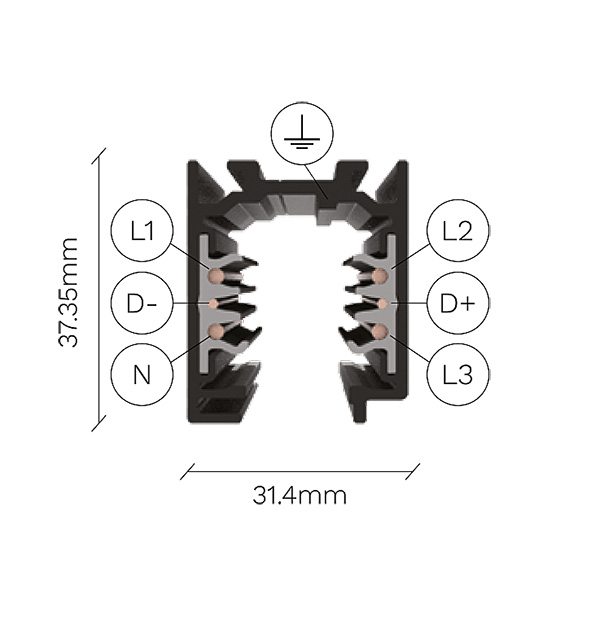

  • Dimensions: L=1000/2000/3000/4000mm / W=31,4mm / H=37,35 mm

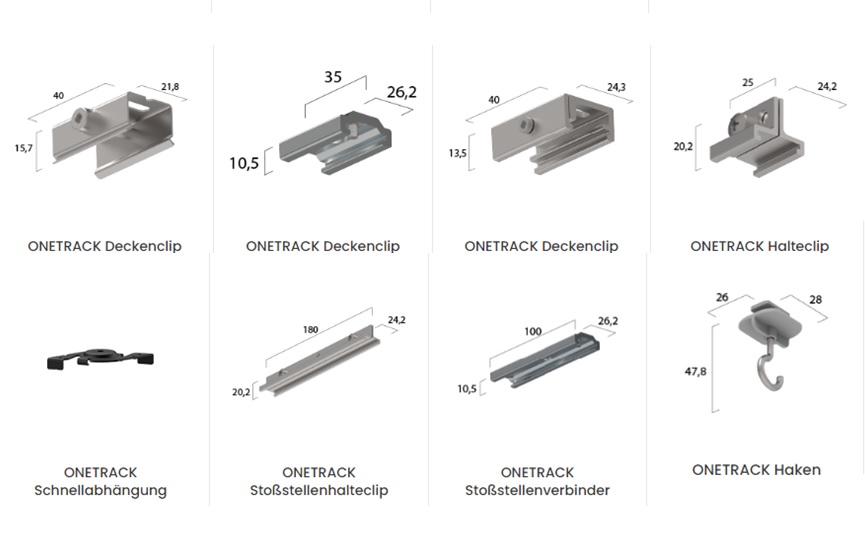

  • Large selection of connectors, feeders and mounting accessories

Planning example for the DALI track:

Example 1: Requirement: 3m power track black, surface mounting with DALI data bus, end feed
At least the following are required:

  • 1x 3 phase rail 1m --> 575 2 1101 2
  • 1x 3 phase rail 2m --> 575 2 1102 2
  • 1x Longitudinal electrical connector --> 575 2 12062
  • 1x End feeder with data bus --> 575 2 1201 2 (depending on the orientation of the protective conductor)
  • 1x End cap for the other side --> 575 0 3217 2

Example 2: Requirement: 2 x 90 ° arrangement of U-shaped busbar with partial lengths of 2m - 4m - 1m, white, feed in the middle of the 4m section, installation with DALI bus

  • 1x 3 phase rail 1m --> 575 2 1101 6
  • 1x 3 phase rail 2m --> 575 2 1102 6
  • 1x 3 phase rail 4m --> 575 2 1142 6
  • 2x Corner connector protection. inside --> 575 2 32106
  • 1x DALI Central feeder --> 575 2 52036
  • 2x End cap --> 575 0 3217 6

Note: The power rail with length of 4,0m is also available on request. (Use "Question to product?"-Button)
