DALI-2 BT5 Room Controller

199.80€ *
Net price: 167.90€

Prices incl. VAT plus shipping costs

Delivery time 1-3 weeks*

The DALI Room Controller serves as an interface between Bluetooth 5.0 and DALI. The... more

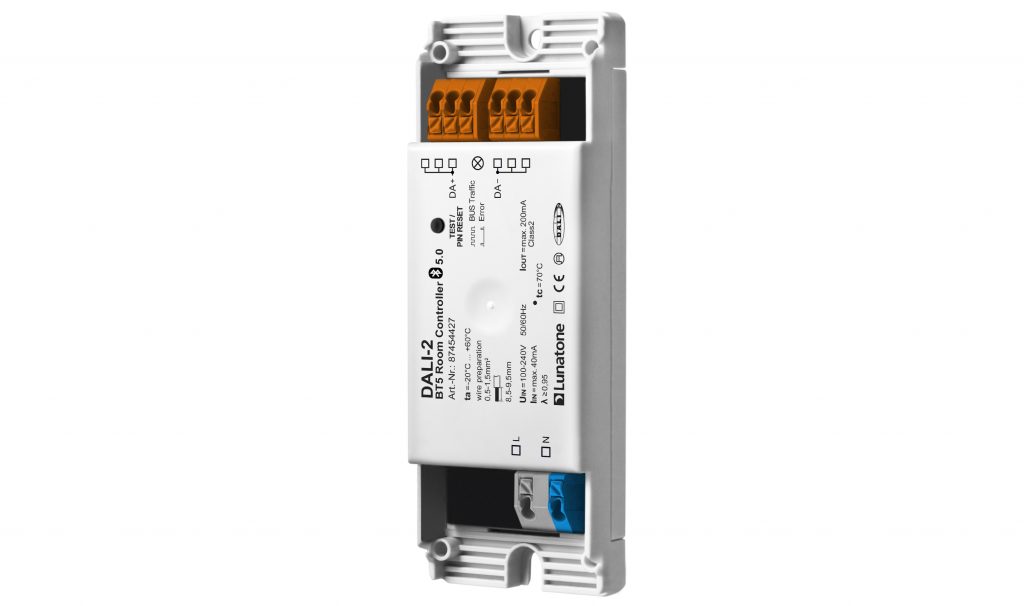

The DALI Room Controller serves as an interface between Bluetooth 5.0 and DALI.

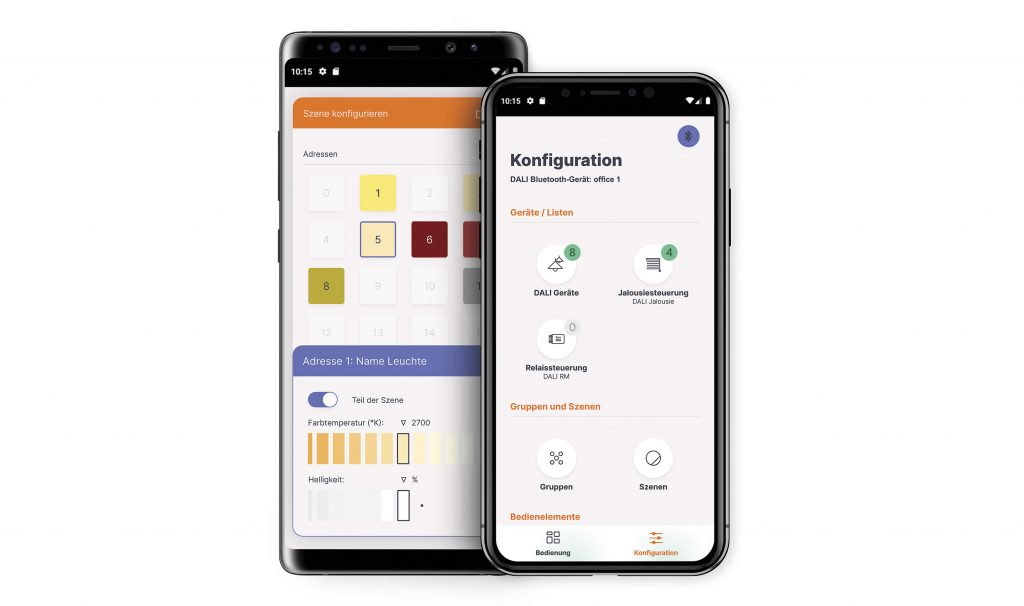

The Lunatone smartphone application DALI-Cockpit Mobile offers a clear and simple interface with an installation assistant, various configuration options and a configurable user interface to control connected devices.

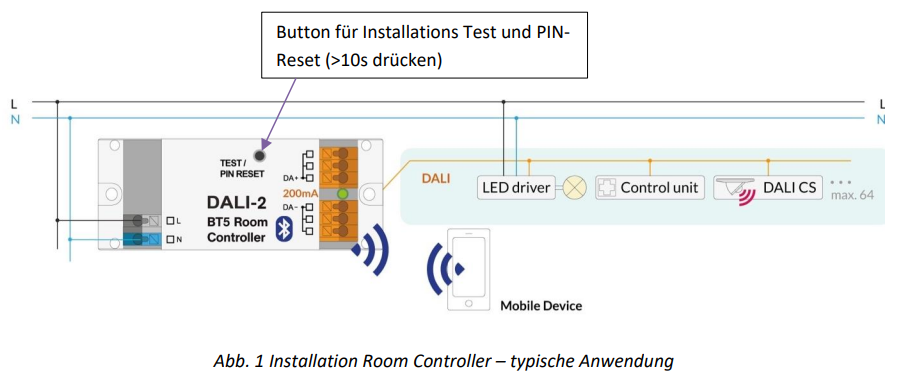

The module has an integrated bus supply (200mA) for a DALI system of up to 64 DALI devices. The independent control gear is suitable for remote ceiling installation or integration in luminaires.

Technische Daten
Umgebungstemperatur -20°C bis +75°C
Schutzart Gehäuse / Klemmen IP40 / IP20
Montage Zwischendeckeneinbau, Integration in Schutzklasse II Geräte
Elektrische Daten
Eingangsspannungsbereich 100Vac … 240Vac
Eingangsstrom max 40mA (@120Vac), 20mA (@240Vac)
garantierter DALI Ausgangsstrom 200mA
Eingang L, N
Ausgang DALI
Gerätetyp Bluetooth 5.0 Interface

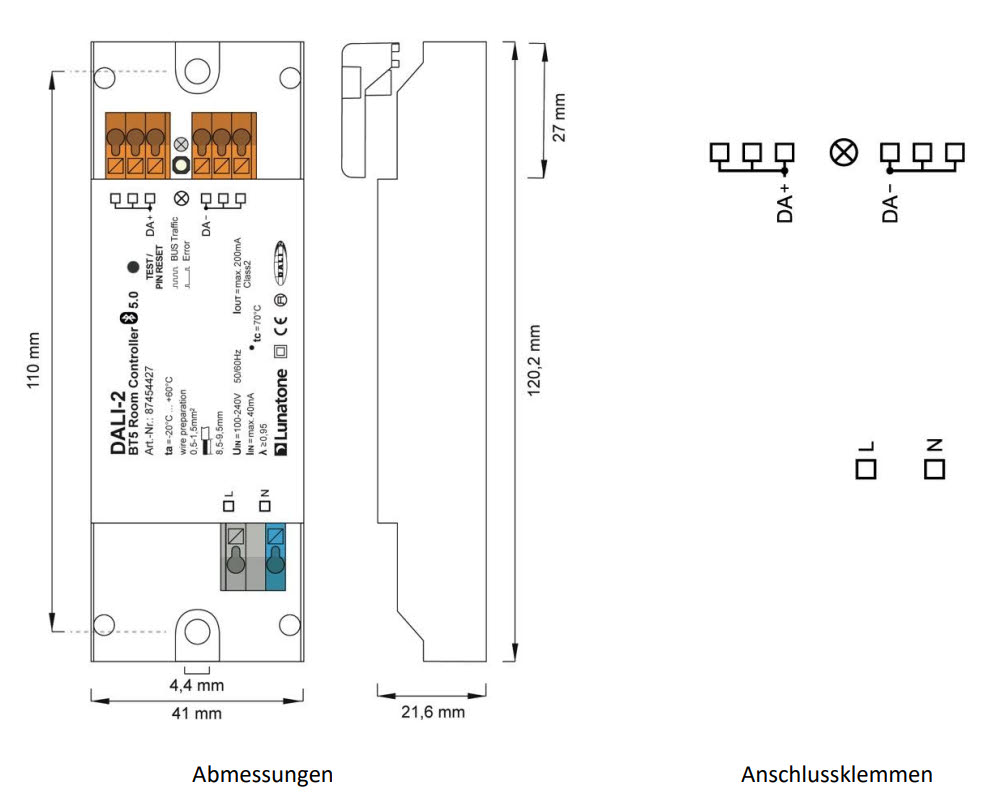

Gehäuse und Abmessungen
Abmessungen (L x B x H) 120mm x 41mm x 22mm
Farbe Grau
Related links to "DALI-2 BT5 Room Controller"
DALI-Geräte im Raum über Bluetooth via Smartphone steuern. Perfekte Erweiterung more
Features/tags of this product family. Please refer about the details in the description or datasheet.
Application/IP-Code: IP20 - IP44 (Indoor)
Dimmable/Control: BT4.0 (2,4 GHz), DALI, DALI2, DALI DT8
Datasheet to DALI-2 BT5
