DALI DT8 to DT6 DALI interface moduleThe module enables dimming and the setting of the colour temperature via DT8 commands, also for luminaires with two DALI DT6 LED-driver.
- For tunable white control of 2 DALI DT6 1-channel LED power supplies
- 1 DALI Address (DT8, Type Tc)

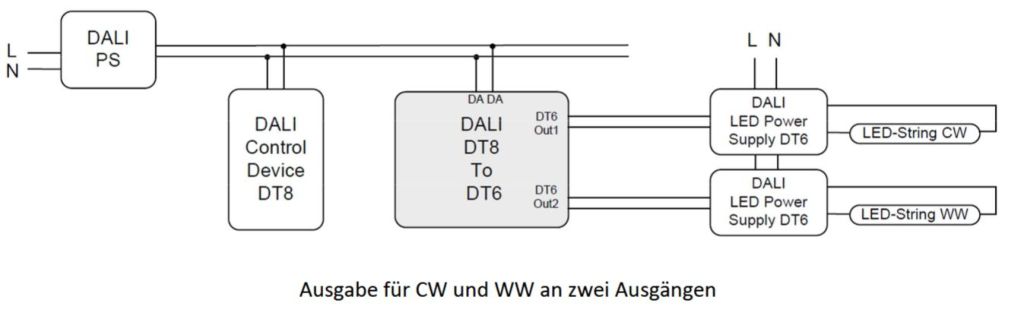

- Separate outpus for coldwhite and warmwhite channel (factory default)
- Alternative output mode: dimlevels for coldwhite and warmwhite channel are sent to groups (G0 and G1)
- Easy system expansion with the help of DALI Expander, DALI Expander3 or RepeaterPS
- Configuration with PC-software tool DALI-Cockpit and DALI USB interface
|Type||DALI DT8 to DT6|
|Current consumption||2mA + current consumption subnet|
|Number of DALI adresses||1 (DT8)|
|Behaviour after power on||Configurable via DALI|
|Connection wire cross section||max. 1.5mm²|

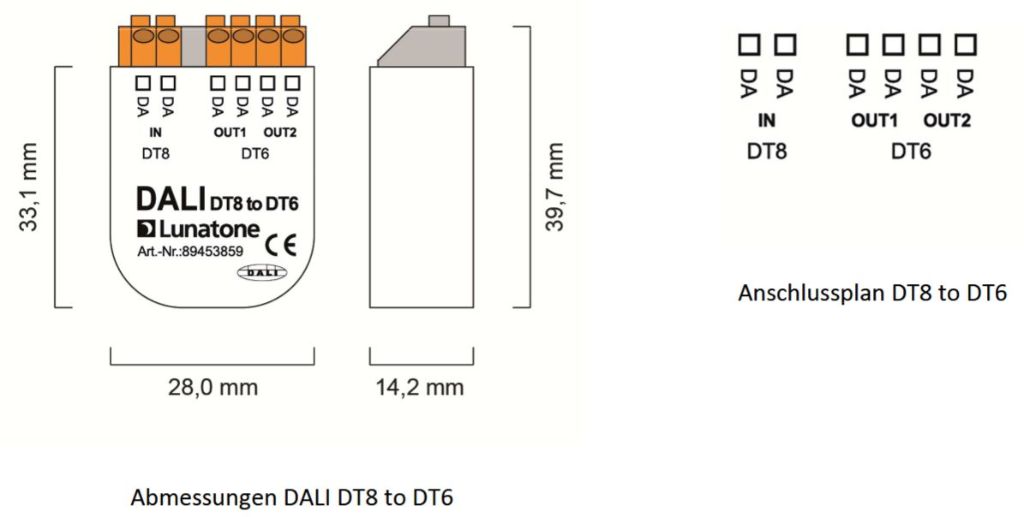

|Dimensions (LxWxH)||58mm x 33mm x 15mm|
For further information please refer to the data sheet in the Download tab.
Related links to "DALI DT8 to DT6 Converter"
DALI-interface module for the conversion of DALI DT8-Tc commands to DALI DT6 commands. more
Features/tags of this product family. Please refer about the details in the description or datasheet.
|Verwendung/IP-Code:||IP20 - IP44 (indoor)|
|Dimmbarkeit/Steuerung:||DALI, DALI DT8|
