Interface DALI 0-10V 86458508

Variants from 35.13€ *
Net price: 29.52€

Prices incl. VAT plus shipping costs

Please select a variant first

Attributes:


piece

Integration of 0-10V devices in a DALI system with  Lunatone DALI 0-10V interface This... more

Integration of 0-10V devices in a DALI system with  Lunatone DALI 0-10V interface

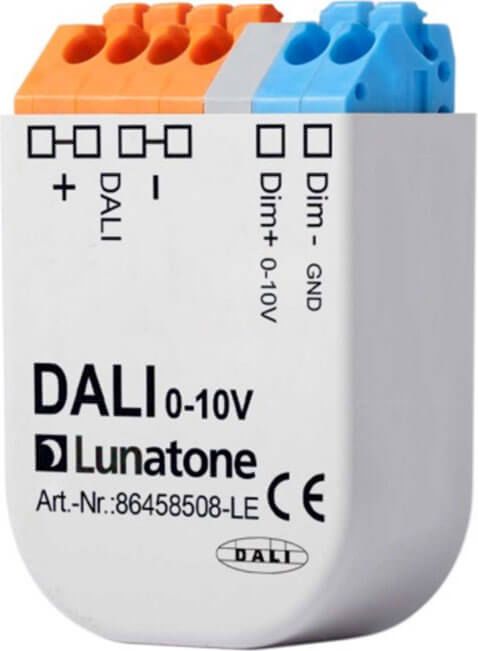

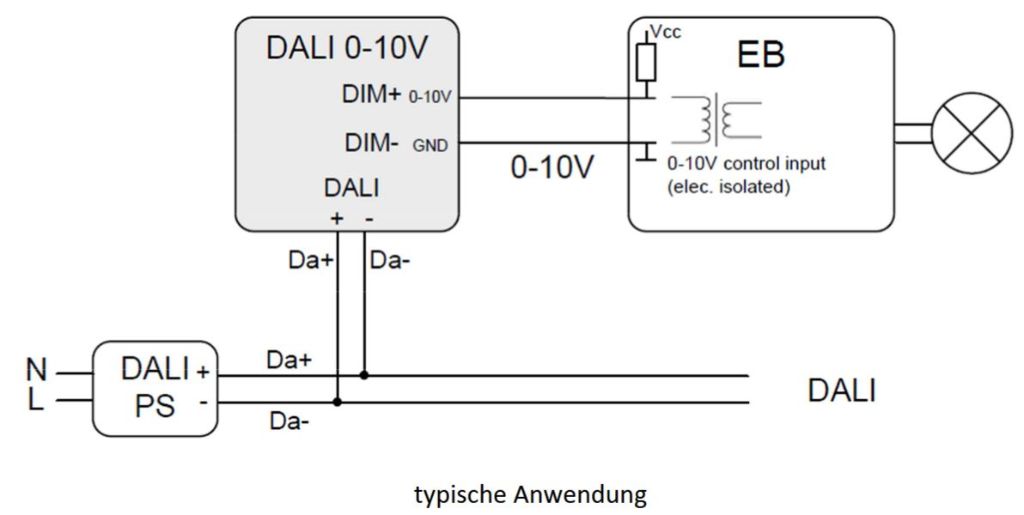

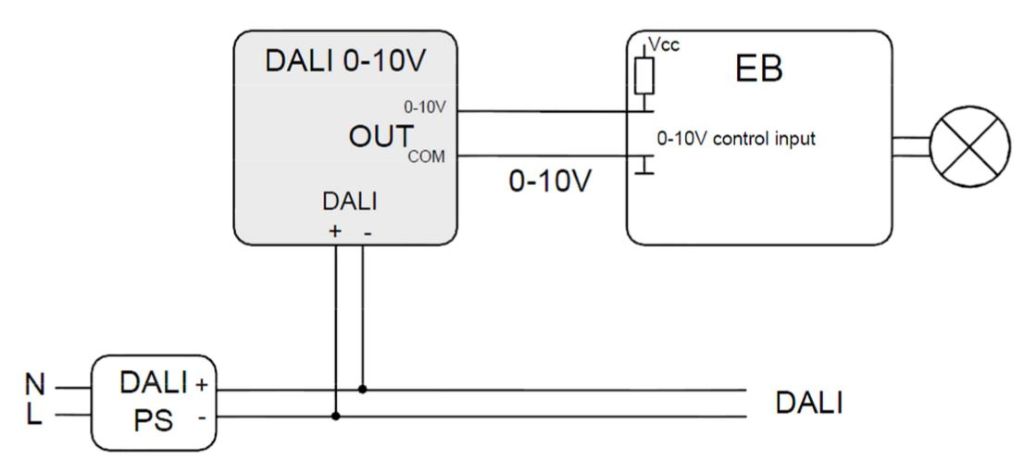

This interface DALI 0-10V by Lunatone, converts DALI-signals into an analog 0-10V signal. This makes the integration of LED-ballasts or electronic ballasts with 0-10V or 1-10V control input into a DALI-system possible.
By choosing a linear or logarithmic dimming curve and either from 0-10V or 1-10V output voltage range, the interface becomes DALI 0-10V IEC62386-206 compliant (DALI Device Type 5).

The following models are available here:
Converting a DALI signal into a galvanic isolated PWM signal (up to 1mA output current): 86458508-PWM
Converting a DALI signal into a galvanic isolated PWM signal (up to 100mA output current): 86458508-100
Converting a DALI signal into an 0-10V analog signal without galvanic isolation: 86458508-LE
Converting a DALI signal into an 0-10V analog signal with galvanic isolation: 86458508-AN

Product specifications:

  • Converting of the DALI 8-Bit Arc-Power-Level in an analog output voltage from 0V to 10V
  • Manufacturer-specific mode for the adjustment of the output voltage range (from Firmware 2.0)
  • Particular for devices with 0-10V control input
  • Output voltage range switchable between 0-10V and 1-10V
  • Choosing of linear or logarithmic dimming curve (DT5)
  • The DALI 0-10V has a DALI-adress and can be assigned to groups and scenes
  • Multiport for DALI
  • Max. current on the output: 1mA
  • Module for the converting of DALI signals into an 0-10V analog signal (DALI DT5)
  • The supply of the module happens directly via DALI-line, there is no additional supply needed.

Technical data

  • Inputs: DALI
  • Supply: via DALI
  • Typical current consumption DALI: <3 mA
  • Output: 0-10V (0%-100%) analog voltage 1mA max. (current sink)
  • Dimensions (L x W x H): 39,7 mm x 28,0 mm x 14,2 mm
  • Weight: ca. 10g
  • Temperature: 0 °C - 45 °C
  • Protection type: IP20
  • Cross-section of the connection wires: 0.5-1.5 mm2
