DALI PWM dimmer 4-channel DIN rail 4x5A

108.99€ *
Net price: 91.59€
Content: 1 Stück

Prices incl. VAT plus shipping costs

Delivery time 3-5 workdays*


DALI PWM dimmer of PUR LED with 4 channels and DIN rail mounting All channels are controlled... more

DALI PWM dimmer of PUR LED with 4 channels and DIN rail mounting

All channels are controlled separately.

The 4-channel DALI PWM dimmer from PUR-LED stores its last program and switch-on state in case of power interruption.

Technical data:

Voltageverse.: 12-36VDC
Current consumption: 4x5A max.
Control inputs: 1
Control signal: DALI/DSI with 4 addresses
PWM-frequency: 500 Hz
Output mode: constant voltage
Outputs: 4x separately addressable DALI channels,
common plus potential (acc. +) 12-36VDC
Output voltage: 4x12-36VDC
Output load: 4 x 5A
Power Output: 240W @ 12VDC / 480W @ 24VDC
/ 720W @ 36VDC
Temperature range: -15 bis 40°C
Dimensions (LxWxH) in mm: 110x54x65
Related links to "DALI PWM dimmer 4-channel DIN rail 4x5A"
DALI pulse width modulation dimmer from PUR-LED with 4 channels and DIN rail mounting. more
Features/tags of this product family. Please refer about the details in the description or datasheet.
Constant Voltage: 12V, 24V, 36V
Application/IP-Code: IP20 - IP44 (Indoor)
Dimmable/Control: DALI, PWM
Color Temperature/Color: RGB/3-Ch, RGBW/4-Ch, Tuneable White
Lamp shape: DIN Rail
Power range: 250 - 1000 W
Data sheet PWM Dimmer

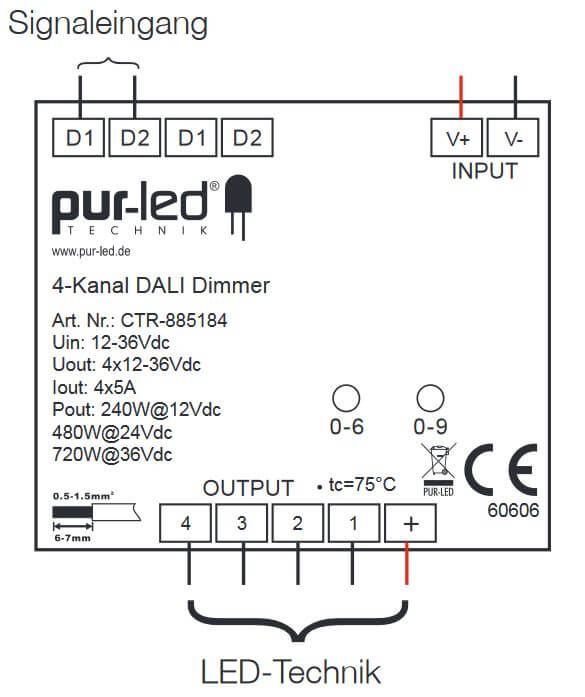

Applications example
