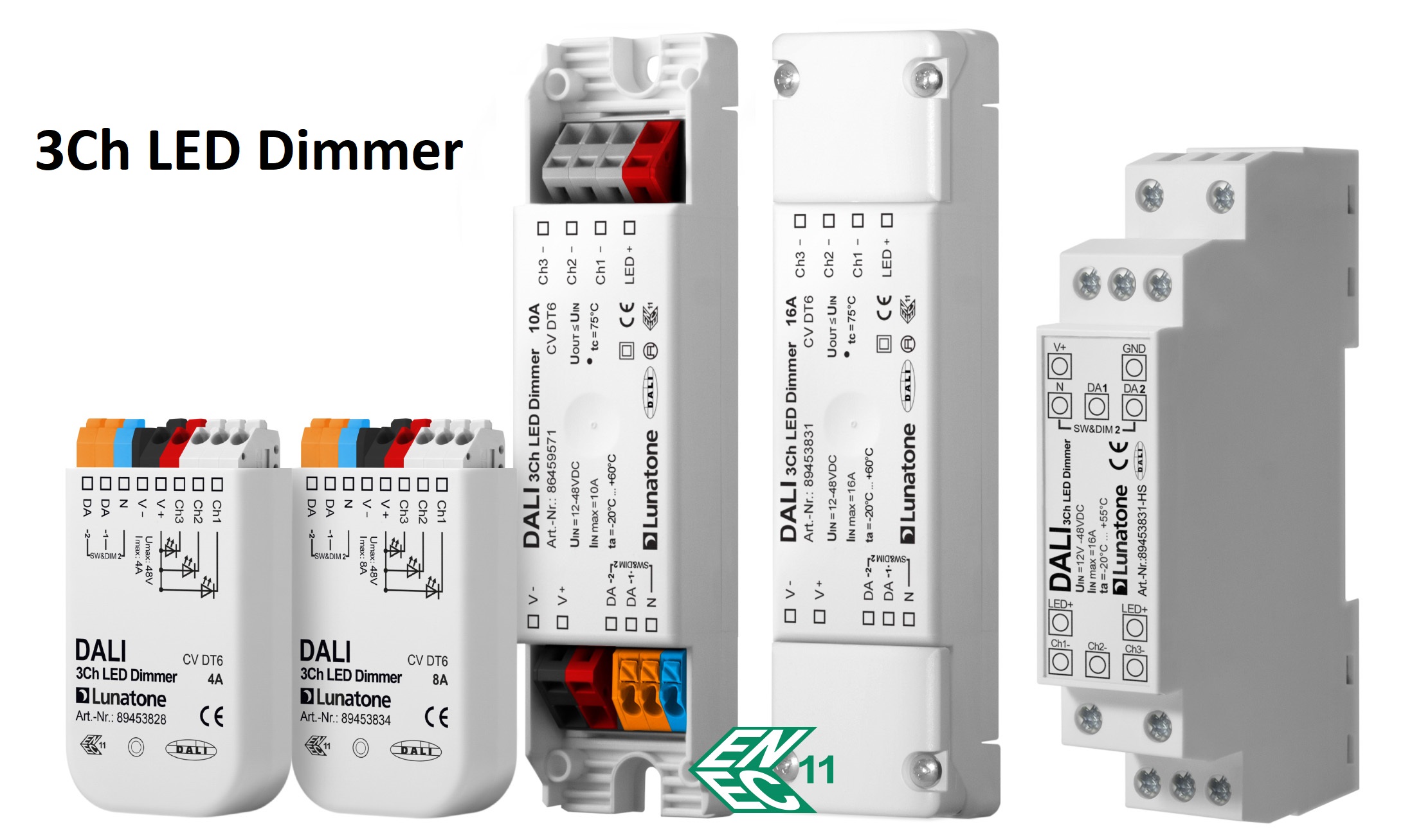

DALI LED Dimmer CV (multichannel)

Variants from 65.87€ *
Net price: 55.35€

Prices incl. VAT plus shipping costs

Please select a variant first

Version:


piece

DALI LED dimmer with constant voltage with 2, 3 resp. 4 separately controllable channels.... more

DALI LED dimmer with constant voltage

with 2, 3 resp. 4 separately controllable channels.


Every channel of the DALI LED dimmer by Lunatone has it's own DALI address and can therefore be controlled independently.
Input voltage of 12 to 48 V, depending on the model for connection currents up to 16A, 2-4 PWM outputs (16Bit).


Product specifications:

  • Allows a separated control of 2, 3 resp. 4 PWM outputs via DALI
  • Suitable for the control of constant voltage LED modules
  • Every output is 1% - 100% dimmable
  • Configuration via DALI cockpit softwaretool and DALI USB-interface

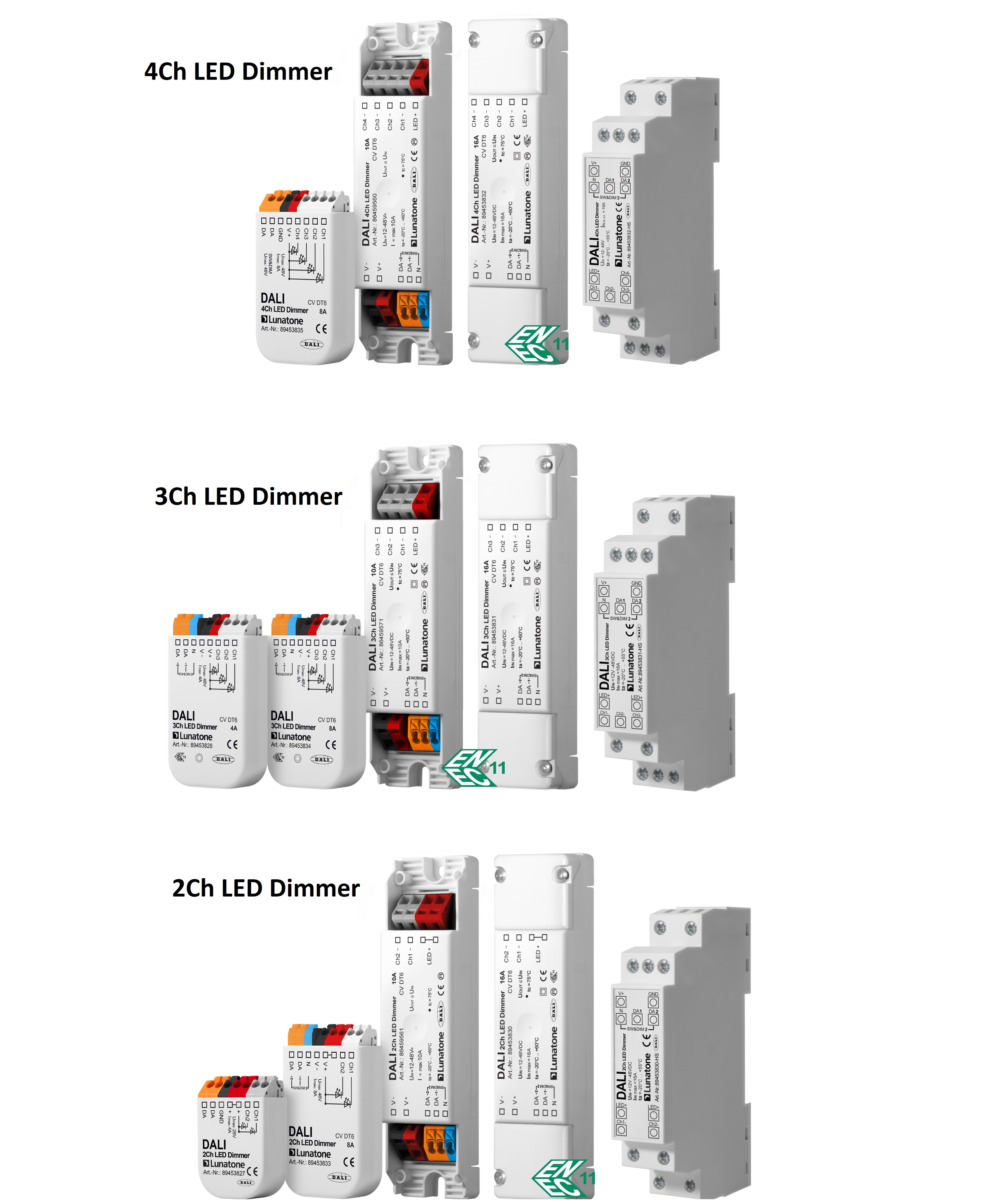

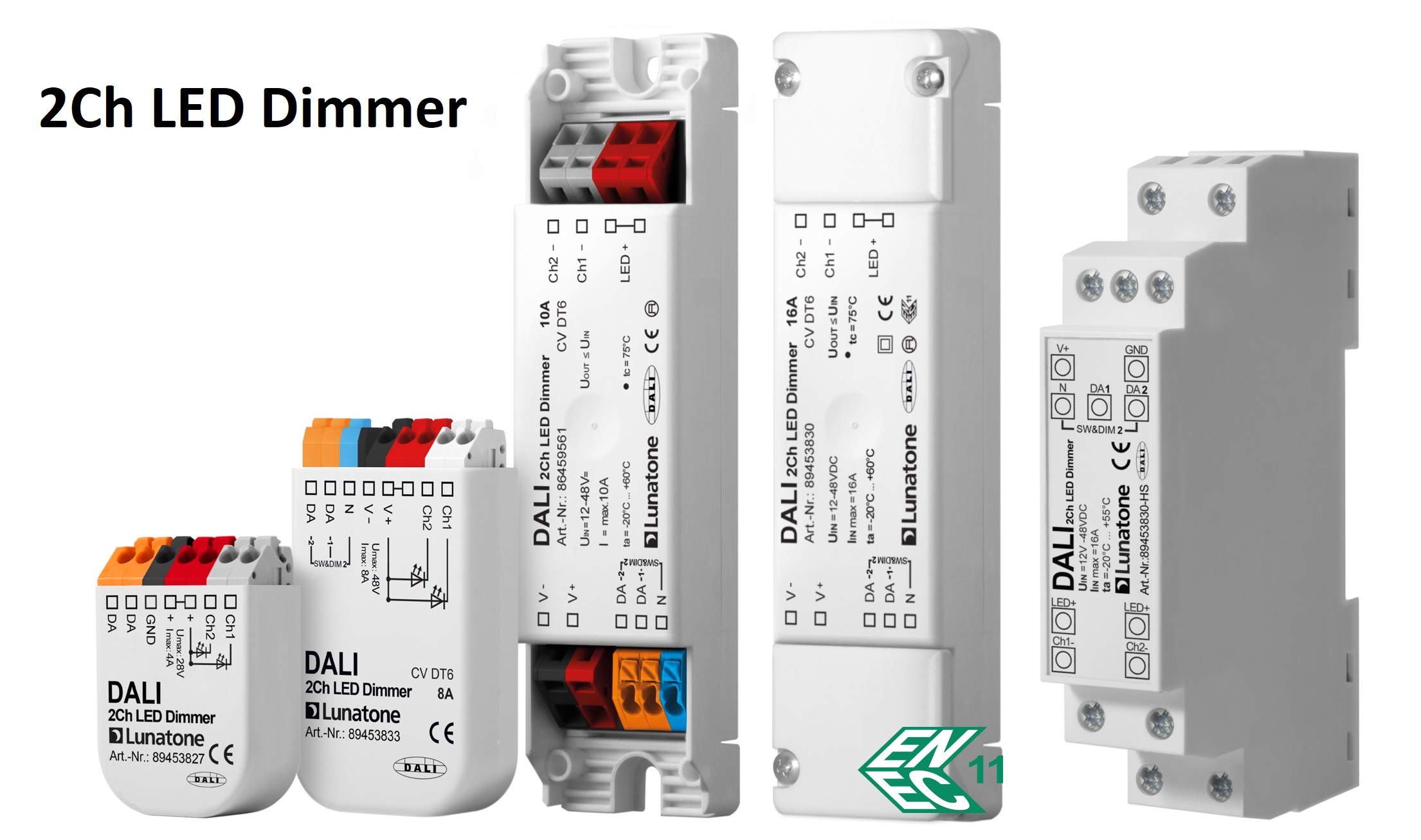

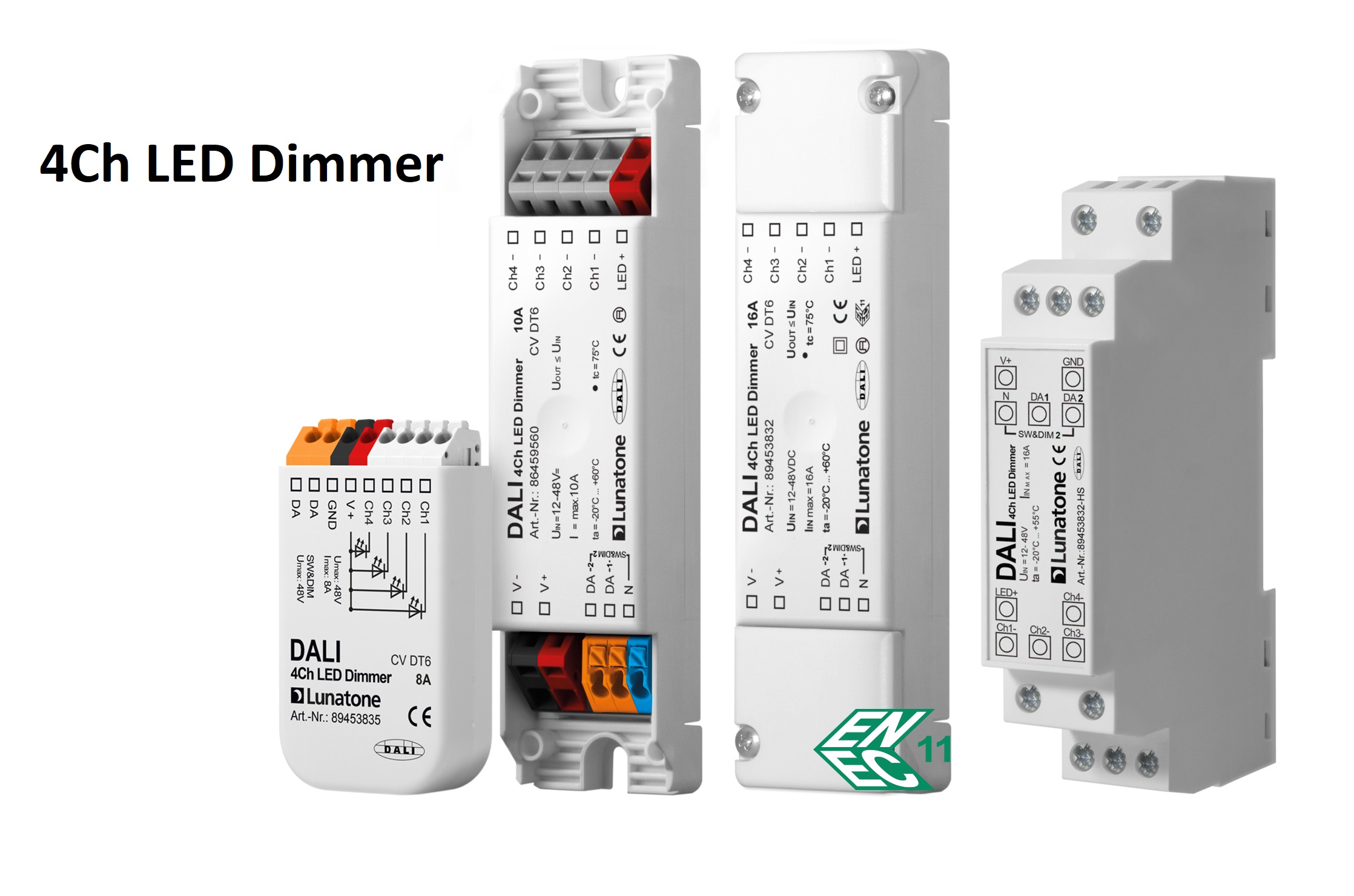

  • LED-dimmer with 2, 3 resp. 4 separated channels
  • Every channel has it's own DALI address
  • Different housing variants depending on the type (check data sheet)
  • Supply voltage 12V to 48V DC (depending on the type, check the data sheet)
  • Max. connection currents of 4A, 8A, 10A or 16A depending on the type
  • The maximum connection current can be spread on the channels arbitrarily, the sum current musn't exceed the connection current.
Ströme / Kanäle 2Ch 3Ch 4Ch

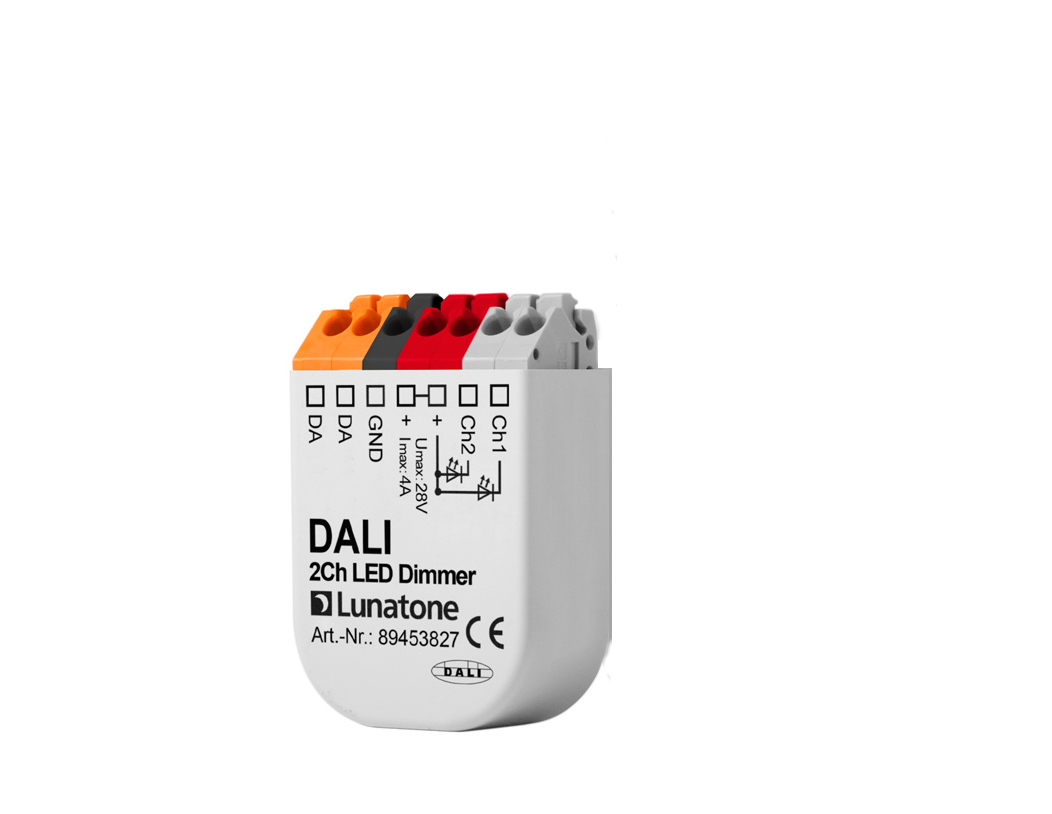

4A 89453827 89453828 --
8A 89453833 89453834 89453835
10A 86459561 86459571 86459560
16A 89453830 89453831 89453832
16A(HS) 89453830-HS 894538318945383189453831-HS 89453832-HS

Technical data

  • Supply voltage: Check the data sheet
  • Control input: DALI
  • Temperature: Check the data sheet
  • Protection type: IP20
  • Condition after return: depends on the DALI configuration
  • Max. wire cross-section: Check the related picture or the data sheet

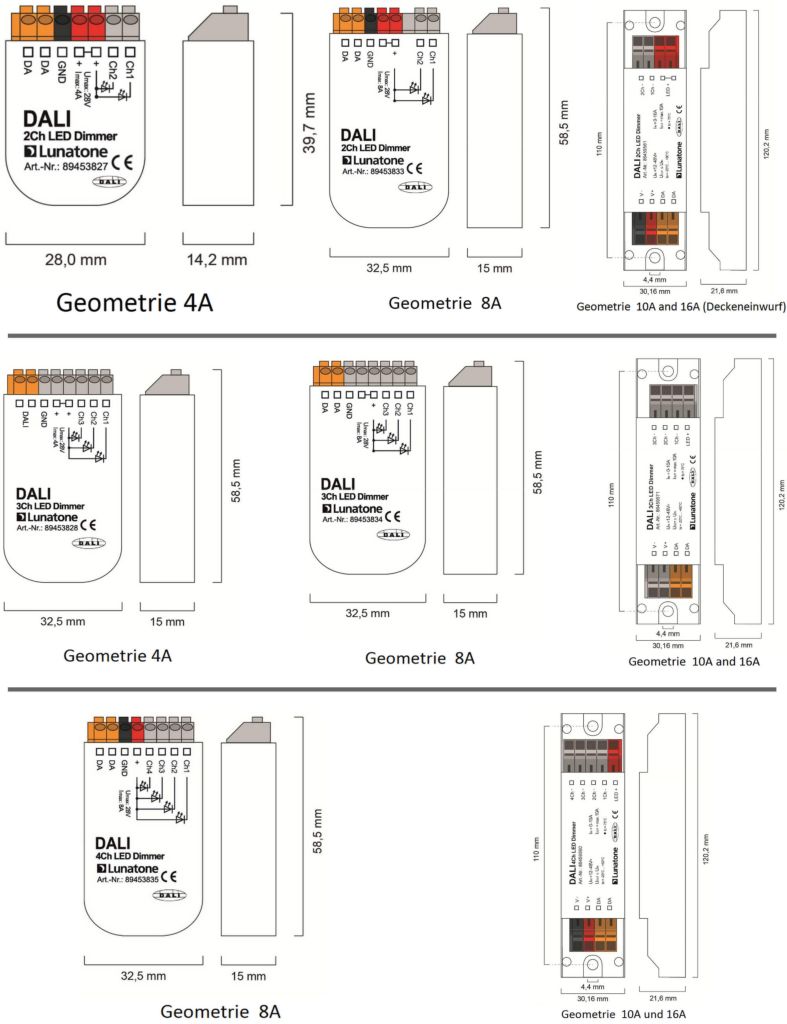

  • Dimensions (LxWxH): Check the related picture or the data sheet
Related links to "DALI LED Dimmer CV (multichannel)"
LED Dimmer with 2 to 4 independently controllable DALI channels from 4 to 16A more
Features/tags of this product family. Please refer about the details in the description or datasheet.
Constant Voltage: 12V, 24V, 48V
Application/IP-Code: IP20 - IP44 (Indoor)
Dimmable/Control: DALI, PWM
Color Temperature/Color: RGBW/4-Ch
Datasheet 2 Ch
Datasheet 3CH
Datasheet 4CH
Lunatone overview
Read, write and discuss reviews... more
Customer evaluation for "DALI LED Dimmer CV (multichannel)"
Write an evaluation
Evaluations will be activated after verification.
I have read and understood the Privacy policy.

The fields marked with * are required.

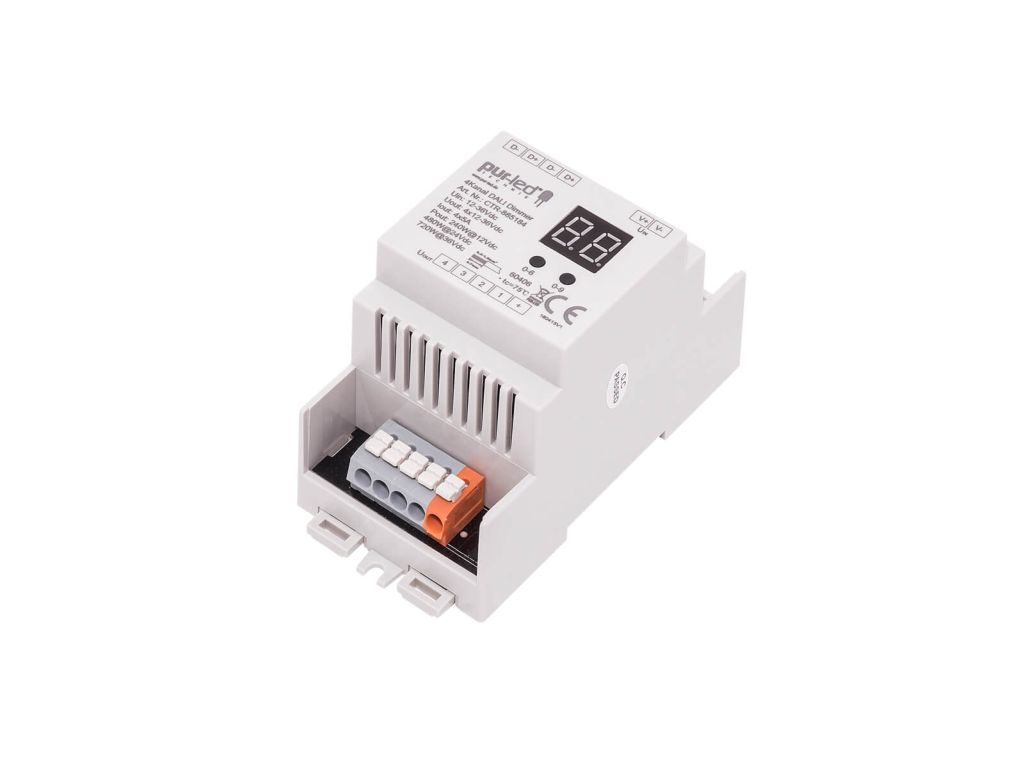

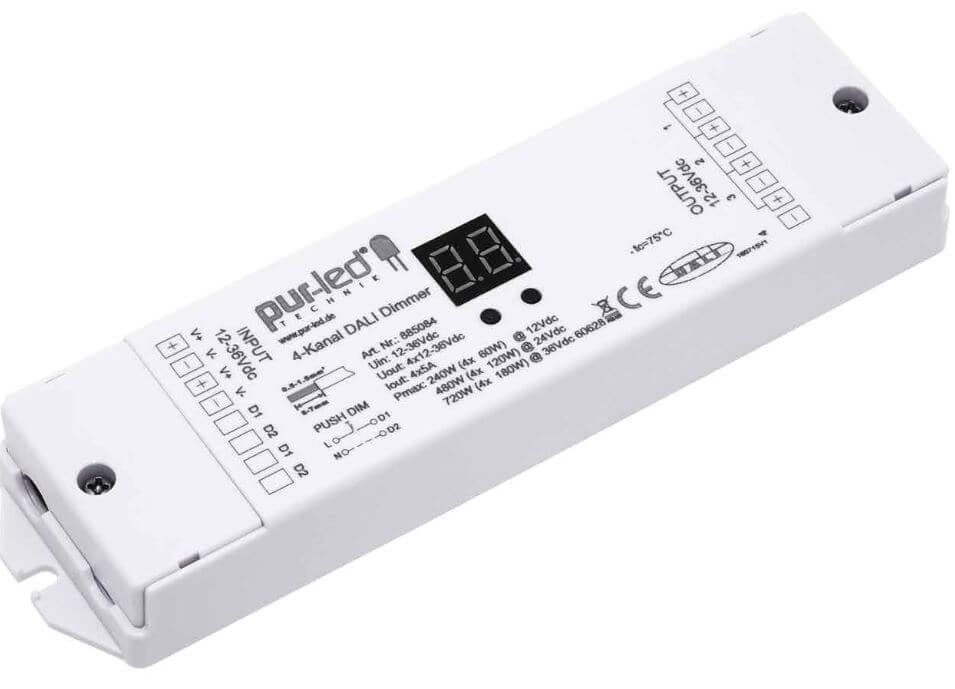

DALI PWM dimmer 4-channel DIN rail 4x5A DALI PWM dimmer 4-channel DIN rail 4x5A
Content 1 Stück
108.99€ *
Order number: CTR-885184

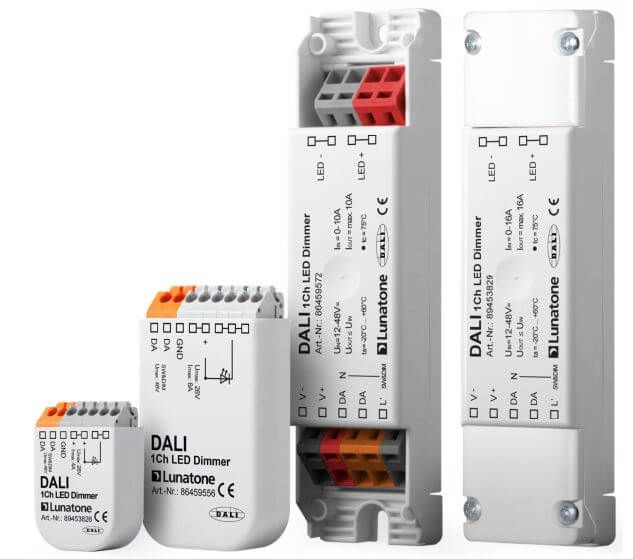

Switch Dim 89453829 Single-channel LED dimmer CV Switch Dim
