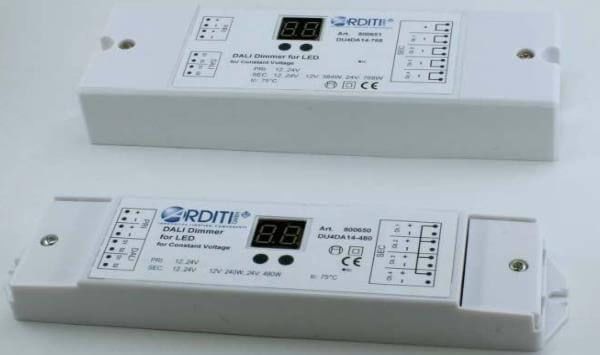

4-channel DALI Dimmer | DU4DA

Product information "4-channel DALI Dimmer | DU4DA"

4-channel DALI dimmer for 12V and 24V / DT8 mode


8006504-channel LED dimmer 800650:

  • 4-channel LED dimmer for constant voltage
  • control only by DALI with SELV potential,
  • 4 channels with consecutive addresses, adjustable:
    ?Press a button for a long time until display flashes (address of first channel).
    ? press right/left to set
    ?Press long to save or address by DALI Control.

4-channel LED dimmer DALI2 DT8 808660:

  • 4-channel DALI² DT8 LED dimmer for LEDs for constant voltage.
  • Suitable for control via CASAMBI interfaces in DT8 mode
  • Controlled only by DALI with SELV potential
  • DALI Select start address (4 consecutive addresses):
    - press right button (0..9) long until display flashes (address of first channel)
    - press right / left to set
    - press right long to save
    - or addressing by DALI Control
  • Set operating mode:
    - Press both buttons long until display flashes, press one button to select working mode
    - nn: for single-colour LED strips, all channels the same
    - R9: for RGBW LED bands
    - 7c: for Tunable White LED bands
    - H4: for settings via XY-coordinate
    - Press and hold both buttons to confirm selection

Specifications of the 4-channel LED dimmers:

Product No.808660 (DT8 Version)800650800651 (only on request)
TypeDU4DA8-14-480
4-channel DALI²
DT8 LED dimmer

DU4DA14-480
4-channel DALI
LED Dimmer
DU4DA14-768
Input voltage12..24 VDC12..24 VDC12..24 VDC
Output voltage12..24 VDC12..24 VDC12..24 VDC
Output power at 12V4x60 W4x60 W4x60 W4x96 W
Output power at 24V4x120 W4x120 W4x192 W
PWM frequency1500 Hz2000 Hz2000 Hz
Control current max.2 mA1,5 mA1,5 mA
Max. Rated temperature tc75 °C75 °C75 °C

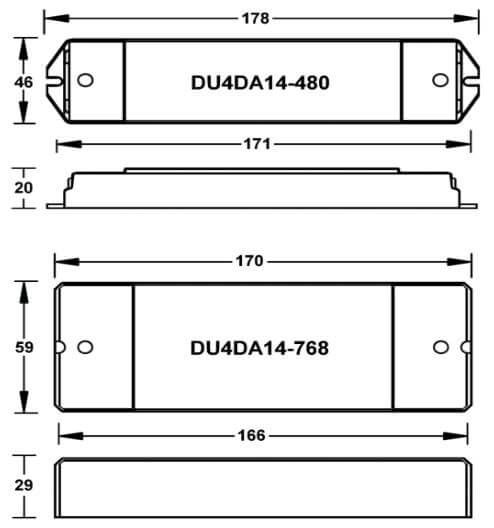

Dimensions

170 x 53 x 29 mm

178x46x20 mm170x59x29 mm


For more information please refer to the data sheets in the Download-Tab.

Properties "4-channel DALI Dimmer | DU4DA"
·Color Temperature/Color: RGBW/4-Ch
·Dimmable/Control: DALI, DALI2, DALI DT8
·Power range: 50 - 100 W, 100 - 250 W
·Constant Voltage: 12V, 24V
Manufacturer "Arditi GmbH Lighting Components"

Arditi GmbH is a subsidiary of the Italian Arditi Spa near Bergamo. The range is broadly diversified and includes switches, dimmers, sockets, bases, wires, transformers and accessory. In the meantime, Arditi has made a name in the sector of LED-technology. The company offers LED-modules in various forms, transformers and drivers, as well as LED-suppliers.

Related links of the manufacturer

Data sheet LED Dimmer 800650

Datasheet LED Dimmer 4 Channel DALI

Datasheet LED Dimmer 808660

Datasheet LED Dimmer 4 Kanal DALI2 DT8
