Casambi Dimmer for 230V light control TED | SKII with strain relief

Dimmer for mains voltage via CASAMBI light control TED housing protection class II with strain relief

This small dimmer is excellently suited for convenient dimming by phase section via the CASAMBI app.

Product specifications:

• Trailing edge dimmer for convenient operation with smart devices
• Configurable and versatile with the CASAMBI app
• Gateway is not required, but setup is possible
• For the operation of dimmable
  • Incandescent lamps, mains halogen lamps
  • LED lamps (retrofit LED)
  • Compact Fluorescent Lamps (CFL Lamps)
  • Mains LED modules
  • Drivers for LEDs and 12 Vdc halogen lamps
• Only connect one type of load / one type of lamp!
• Not suitable for inductive loads such as wound transformers or electric motors!
• Some loads may flicker when dimmed, especially at low dimming levels. This can be avoided by using a profile with an excluded lower dimming range (profile 13-100% is preset).
• *Mains current: max. 0.43 A (including reactive current), inrush current max. 10 A (100 ms)
• Comparative tracking number: < 600. Degree of pollution: 1

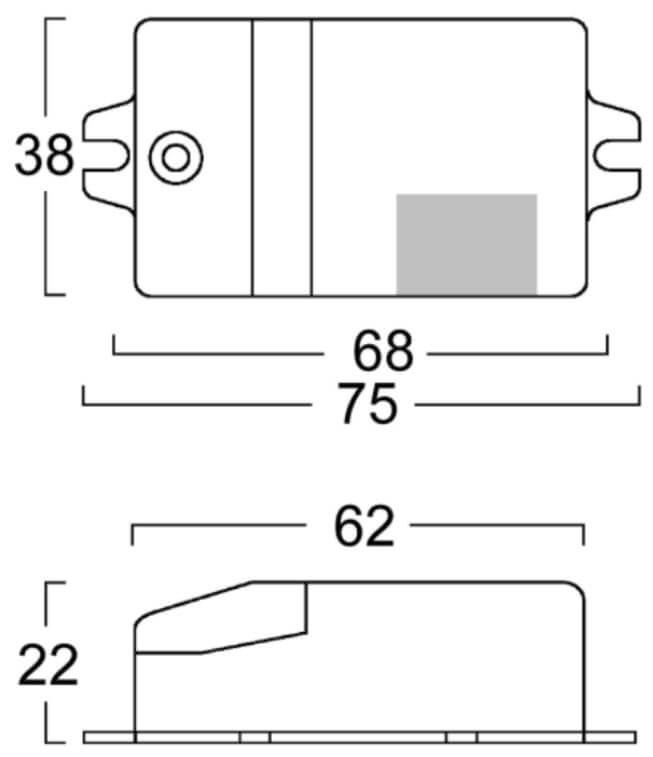

  Non-replaceable fuse F2A / 250 Vac. Integrated antenna (drawing: gray area, do not cover with metal housing)
• In built-in box or in independent box with terminal cover (protection class: 2); for permanent installation

Technical properties:

Casmabi Dimmer Class II using phasecut CBU-TED

High quality and compact Casambi phasecut-dimming CBU TED. It can be replaced with traditional
switch, only one installation in a switch case or a ceiling connection with lamps.

Casambi dimmer for actuating LED and halogen lamps

With your smartphone or tablet, you can dim lamps, actuate switches, create light scenes and form desired
lighting effects. You need only a BT 4.0 (2,4 GHz) connection and the appropriate app from Casambi.

The activation of the Casambi CBU TED via BT 4.0 (2,4 GHz) saves complicated installation of cables.
The 2,4 GHz radio wireless Mesh-Network allows to control several lighting units.

You have lights or lamps and want instead a wall dimmer (trailing edge dimmer) to control the brightness
from your mobile phone? A Casambi dimmer like this one works instead of a wall dimmer. Connect the
Casambi dimmer between a switch and light lamps. Now you have a smart lighting control in your house.

An additional highlight:

Dimming the lights with your conventional light switch:

1. Switch on illumination with a usually switch.
2. Short off and on again withing 1 second. The illumination slowly dims up.
3. Another short off and on again at the desired dimming level. The current dimming value is stored.
4. If the second off / on is not switched between 8 seconds, will the illumination dim up to 100%.

All product by Casambi family have following features:

• Creates automatically a wireless Mesh-Network with other Casambi products.
•  Wireless control using the free Casambi App for smartphones and tablets.
• Integrate the use of regular wall switches for dimming and scene control.
• Support for external on / off motion sensors.

Compatible devices and minimum requirements for Casambi App:

These functions does the freed Casambi App:

• Dimming of single or multiple lights with simple touch gestures.
• Controlling the lighting of your stores, offices, or personal spaces.
• Installation of single or complex scenarios with one or more lightings.
• Define the security of the network. There are four different levels of security for access control.
• Also support Philips HUE.

Specifications of Casambi CBU ASD Unit:

History (predecessor) of this proven phase cut dimmer

Article 800680

For further technical data please refer to data sheet:
