Casambi Module Class II light control via app 1-10V

76.45€ *
Net price: 64.24€

Prices incl. VAT plus shipping costs

Ready to ship today,
Delivery time appr. 1-3 workdays*


Casambi Module Bluetooth Class II - Dimming via App with 0-10V and 1-10V Compact... more

Casambi Module Bluetooth Class II - Dimming via App with 0-10V and 1-10V

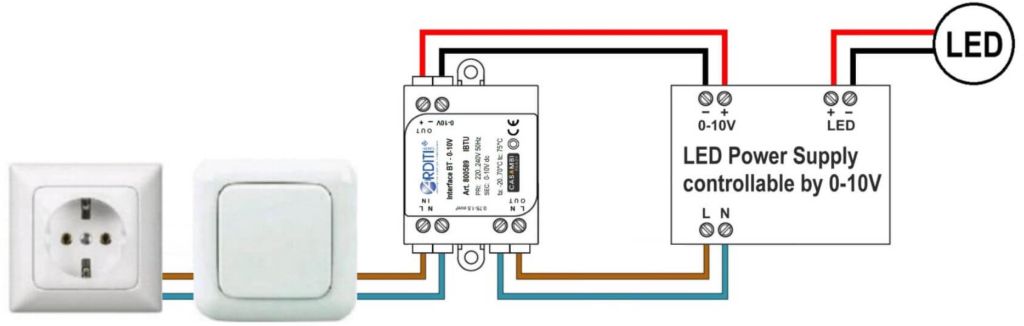

Compact Casambi Module Class II for integrating with 0-10V (alternatively 1-10V) enabled LED driver in your lighting unit.

Casambi module - light control via BT

Dimm a lamp via smartphone with the Casambi Bluetooth App for the Casambi Module ...

... to create a perfect lighting control system

Through a Bluetooth connection and appropriate App you can dim your Smart Device lamps, switch
individual lights on and off, create light scenes and a desired mood in your own 4 walls.

Another Casambi highlight:

Even with your conventional light switch you can dim and switch your lights.

Conceived as backup when the phone is straight not with, or as a simple alternative, if cables for DALI
are missing and you still want to dim. So you can easily adjust with Casambi reduce lights.

Casambi Bluetooth Unit dim with the light switch

1. Switch on illumination with a usually switch.
2. Short off and on again withing 1 second. The illumination slowly dims up.
3. Another short off and on again at the desired dimming level. The current dimming value is stored.
4. If the second off / on is not switched between 8 seconds, will the illumination dim up to 100%.

All products by Casambi family have following features:

  • Creates automatically a wireless Mesh-Network with other Casambi products.
  • Wireless control using the free Casambi App for smartphones and tablets.
  • Integrate the use of regular wall switches for dimming and scene control.
  • Support for external on / off motion sensors.

Compatible devices and minimum requirements for Casambi App:

Android  iOS
 min. Android 4.4 KitKat with Bluetooth 4.0 from iPhone 4S
 recommended: Android 5.0 Lollipop with Bluetooth 4.0 from iPad 3
 or current Android versions from iPod 5

Product specification:

  • Housing in protection class 2 (Casambi Bluetooth housing class II)
  • Easily operated interface to control LED control gear with 0-10 V signal-input by smartphone or tablet (Apple, Android) via Bluetooth
  • Free App from CASAMBI (Apple/Android):
    • Lighting control (dim level)
    • Configuration of luminaires and luminaires networks
    • Creation of scenes and animations (colour gradient)
    • Intelligent timer and gallery function
    • Automatic detection of new devices
    • Protection settings of your luminaires network („just me“, „with password“,...)
  • You can setup a gateway, but it is not necessary
  • Integrated antenna
  • Full switch-off only by switched mains output - use only with relay between!
  • Also controllable via mains switch or wall switch RWBT Xpress and RW...EBT
  • Apple Watch compatible

Casambi App free download:

Casambi App in Appstore Casambi App in Appstore
Casambi App for Android Casambi App for Android

Specifications of Casambi CBU ASD Bluetooth Unit:

 Input voltage  220-240VAC (50Hz)
 Max. input voltage  1.2A
 Standby power  220-240VAC (50Hz)
 Voltage  0-10V
 Current max. 7mA
 Radio transceiver
 Frequency range  2,4-2,483 GHz
 Max. output power  +4 dBm
 Mechanical data
 Dimensions  56.5 x 35.8 x 22.3 mm
 Weight  48g
 Protection  IP20
 Protection class  Built-in class II

For further technical data to Casambi Modules please refer to data sheet (ref Download)
