DALI and Push-Dimmer for RGB-W LED-Stripes

108.99€ *
Net price: 91.59€
Content: 1 Stück

Prices incl. VAT plus shipping costs

Delivery time 3-5 workdays*


Stück

LED dimmer DALI RGB(W) 12-36V, 4x5A with push button input Push Dim for 230V The... more

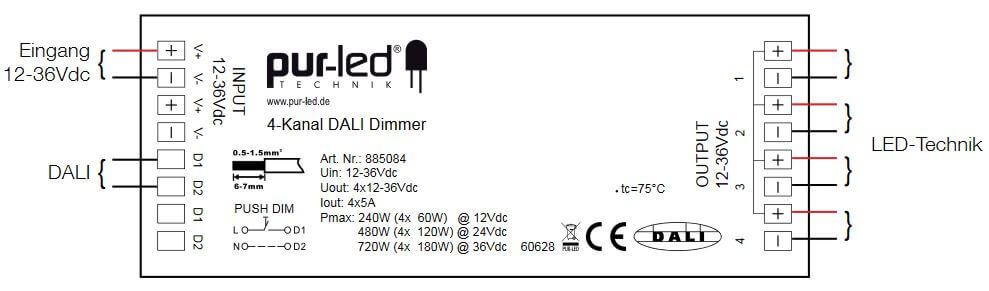

LED dimmer DALI RGB(W) 12-36V, 4x5A with push button input Push Dim for 230V

The 4-channel LED DALI PWM dimmer from PUR-LED offers the universal possibility to dim e.g. LED strips. Simply switch between power supply (12-36V) and your 1 to 4 LED strips or RGB(W) strips. Dimming / brightness control can then be performed via Push Dim or DALI.


The special feature of this device is that not only the addresses themselves but also the number of DALI addresses used can be set individually.
If one of the two buttons on the device is held down, the display flashes and the number of addresses can be set manually. 4 addresses are preset ex works. Details in the data sheet.
Independent of this, this dimmer is push dim capable: All addresses are dimmed together with pushbuttons.


Technical data of the Push Dim or DALI dimmer:

<
Voltageverse.: 12-36VDC
Current consumption: 20A max.
Control inputs: 1
Control signal: DALI/DSI with 4 addresses (adjustable),
Push Dim (button input)
PWM-frequency: 500Hz
Output mode: constant voltage
Outputs: 4 separately addressable PWM outputs,
common plus potential (acc. +)
Output voltage: 4x12-36VDC
Output load: 4 x 5A
Power output: 240W @ 12VDC / 480W @ 24VDC
/ 720W @ 36VDC
Temperature range: -20 bis 50°C
Dimensions (LxWxH) in mm: 177x46x22
