eldoLED LINEARdrive 720D DALI/DMX

128.00€ * 135.90€ * (5.81% saved)
Net price: 107.56€

Prices incl. VAT plus shipping costs

Ready to ship today,
Delivery time appr. 1-3 workdays*


piece

  • LIN720D3
  • LIN720D3
  • 0.14 kg
  • eldoLED B.V.
eldoLED LINEARdrive 720D LED converter Dimmable constant voltage LED supply with 4 LED... more

eldoLED LINEARdrive 720D LED converter

Dimmable constant voltage LED supply with 4 LED outputs that can be controlled individually via DMX or DALI. 100W

You can configure the driver over its intuitive, 3-button user interface with display:

  • The number of channels
  • DMX or DALI settings
  • Colour and dim values

Furthermore, e.g. an astronomical clock (night-time reduction) or a motion sensor can be connected to the external input.

Technical Data eldoLED LINEARdrive 720D:

 Input:
 Input voltage DC  12-48V
 Input  current  24A max, irrespective of PSU voltage

 Output:
 RGBW @ 12V  6A
 RGB @ 12V  6A
 RGBW @ 24V  6A
 RGB @ 24V  6A
 RGBW @ 48V  6A
 RGB @ 48V  6A
 LED output voltage  5V, 12V, 24V, 48V
 LED Outputs  4
 Control channels  4

 Dimming protocol  DMX and DALI
 Dimming range  100%-0% (HydraDrive)
 Dimming curve  linear, logarithmic, square
 Driver configuration  via 3-button user interface on driver
 Dimension (LxWxH)  153x50x23mm
 Weight  144g
Related links to "eldoLED LINEARdrive 720D DALI/DMX"
eldoLED LINEARdrive 720D LED driver dimmable via DMX and DALI, 720 Watt, 4 constant voltage LED... more
Features/tags of this product family. Please refer about the details in the description or datasheet.
Konstantspannung: 12V, 24V, 48V
Verwendung/IP-Code: IP20 - IP44 (indoor)
Dimmbarkeit/Steuerung: DALI, DMX
Farbtemperatur/Lichtfarbe: RGB/3Kanäle, RGBW/4Kanäle
Datasheet
Quick Start Guide

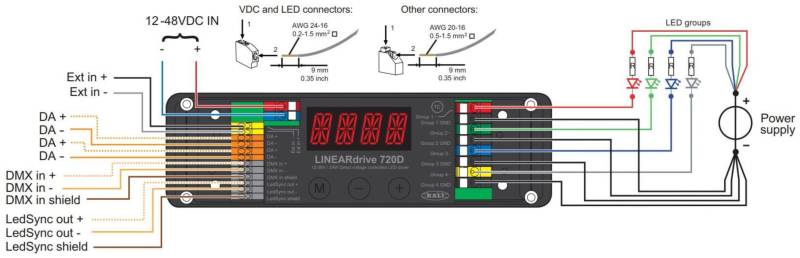

wiring diagram
Tech sheet LINEARdrive 720D
Additional Downloads

Link to the download page of the manufacturer eldoLED for more documents
Read, write and discuss reviews... more
Customer evaluation for "eldoLED LINEARdrive 720D DALI/DMX"
5 Aug 2021

16 Jan 2021

Write an evaluation
Evaluations will be activated after verification.
I have read and understood the Privacy policy.

The fields marked with * are required.

DALI and Push-Dimmer for RGB-W LED-Stripes DALI and Push-Dimmer for RGB-W LED-Stripes
Content 1 Stück
108.99€ *
Order number: CTR-885084
eldoLED POWERdrive 180D DALI/DMX eldoLED POWERdrive 180D DALI/DMX
148.25€ * 162.57€ *
Order number: PWR180D2

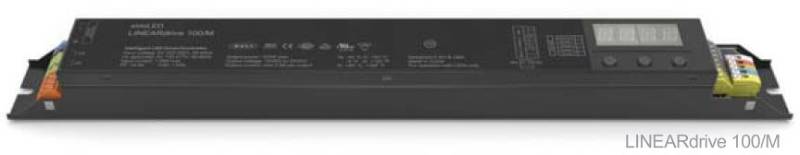

lineardrive 100 bauform m eldoLED LINEARdrive 100 DALI/DMX
Variants from 169.50€ * 209.52€ *
Order number: LIN100-A1

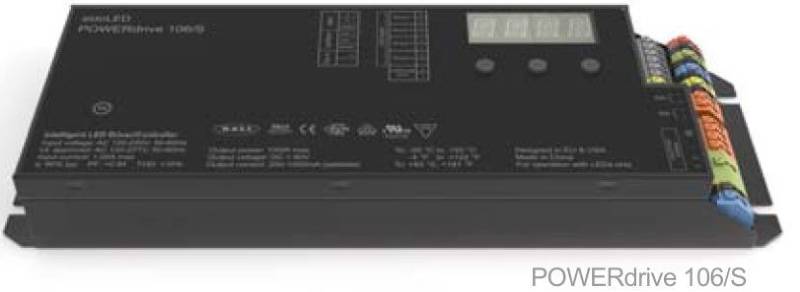

eldoLED POWERdrive 106 DALI/DMX eldoLED POWERdrive 106 DALI/DMX
