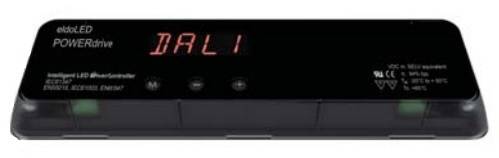

eldoLED POWERdrive 180D DALI/DMX

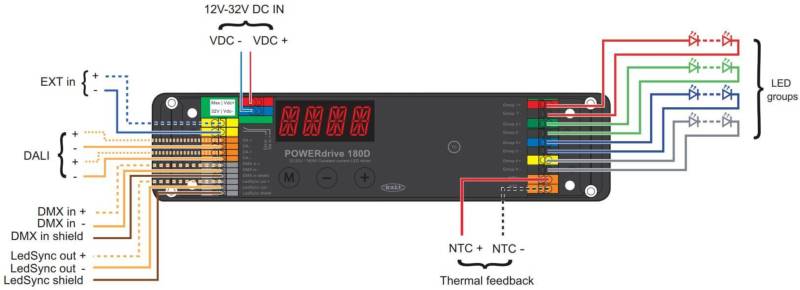

Verdrahtungsbeispiel LED Treiber
Preview: eldoLED POWERdrive 180D DALI/DMX Preview: Verdrahtungsbeispiel LED Treiber


eldoLED POWERdrive 180D DALI/DMX

eldoLED B.V.
130.50€ *
Net price: 109.66€

Prices incl. VAT plus shipping costs

Delivery time 5-10 workdays*


piece

  • Order number: PWR180D2
  • Hersteller-Nr.: PWR180D2
  • Weight: 0.19 kg
  • Manufacturer: eldoLED B.V.
Description Features Downloads Evaluations 0
Description
eldoLED POWERdrive 180D LED driver Dimmable constant current LED driver with 4 LED outputs... more
Close menu

eldoLED POWERdrive 180D LED driver

Dimmable constant current LED driver with 4 LED outputs that can be controlled individually via DMX or DALI.

You can configure the driver over its intuitive, 3-button user interface with display:

  • The number of channels
  • DMX or DALI settings
  • Colour and dim values

Furthermore, e.g. an astronomical clock (night-time reduction) or a motion sensor can be connected to the external input.

Technical Data eldoLED Powerdrive 180D:

 Input:
 Input voltage DC  12-32V
 Input  current  6,16A max.

 Output:
 LED output power  180W max.
 LED output current range  200-1400mA
 LED output current resolution  50mA
 LED output current tolerance  +/- 5%
 LED outputs  4
 LED output voltage range  11-31V (Vsup=1V)
 Control channels  4

 Dimming protocol  DMX and DALI
 Dimming range  100%-0% (HydraDrive)
 Dimming curve  linear, logarithmic, square
 Driver configuration  via 3-button user interface on driver
 Dimension (LxWxH)  193x50x23mm
 Weight  191g
Related links to "eldoLED POWERdrive 180D DALI/DMX"
Features
eldoLED POWERdrive 180D LED driver dimmable via DMX and DALI, 180 Watt, 4 constant current... more
Close menu
Features/tags of this product family. Please refer about the details in the description or datasheet.
Application/IP-Code: IP20 - IP44 (Indoor)
Constant Current: 0,2A, 0,5A, 0,7A, 0,25A, 0,35A, 1,05A, 1,2A, 1,4A
Dimmable/Control: DALI, DMX
Color Temperature/Color: RGB, RGBW
Downloads
more
Close menu
Datasheet
Quick Start Guide
Additional Downloads
Evaluations 0
Read, write and discuss reviews... more
Close menu
Customer evaluation for "eldoLED POWERdrive 180D DALI/DMX"
Write an evaluation
Evaluations will be activated after verification.
I have read and understood the Privacy policy.

The fields marked with * are required.
