eldoLED POWERdrive 106 DALI/DMX

Variants from 195.50€ * 230.60€ * (15.22% saved)
Net price: 164.29€

Prices incl. VAT plus shipping costs

Please select a variant first

Type:


piece

  • PWR106-A1
  • PW1060A1
  • 0.68 kg
  • eldoLED B.V.
eldoLED POWERdrive 106 LED driver Dimmable constant current LED driver with 4 LED outputs... more

eldoLED POWERdrive 106 LED driver

Dimmable constant current LED driver with 4 LED outputs that can be controlled individually via DMX or DALI. 100W

POWERdrive 106 led driver have four separately controllable LED outputs, which can be used for wide range of full-colour (RGBW), dynamic LED lighting applications.

You can configure the driver over its intuitive, 3-button user interface with display:

  • The number of channels
  • DMX or DALI settings
  • Colour and dim values

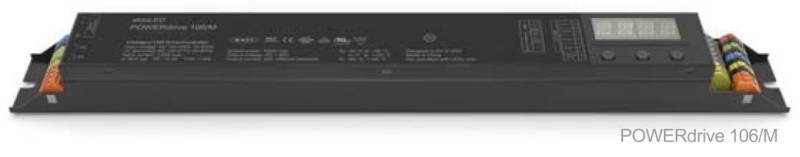

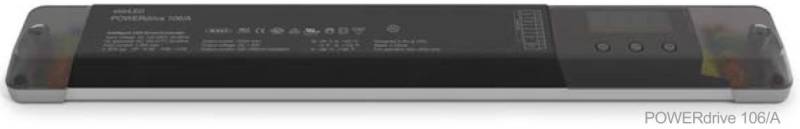

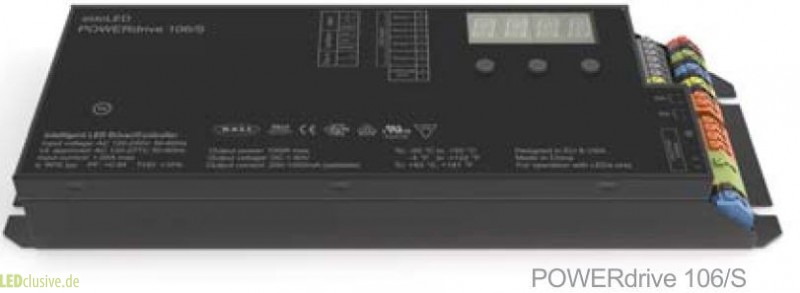

The POWERdrive 106 Series is available in 3 different versions, which differ only in dimensions and weight:

eldoLED POWERdrive 106 DALI/DMX

Furthermore, e.g. an astronomical clock (night-time reduction) or a motion sensor can be connected to the external input.

Technical Data eldoLED POWERdrive 106:

 Input:
 Input voltage AC

 120-250V (ENEC approved)

 120-277V (UL approved)

 Input voltage DC  120-275V
 Input  current

 1.05A max @ 120V/60Hz

 0.5A max @ 230V/50Hz

 0.45A max @ 277V/60Hz


 Output:
 LED output power  100W max.
 LED output current range  200-1050mA
 LED output current resolution  50mA
 LED output current tolerance  +/- 5%
 LED outputs  4
 LED output voltage range  2-57V
 Control channels  4

 Dimming protocol  DMX and DALI
 Dimming range  100%-0% (HydraDrive)
 Dimming curve  linear, logarithmic, square
 Driver configuration  via 3-button user interface on driver
 Dimension (LxWxH)  depending on version
 Weight  depending on version
Related links to "eldoLED POWERdrive 106 DALI/DMX"
eldoLED POWERdrive 106 LED driver dimmable via DMX and DALI, 100 Watt, 4 constant current... more
Features/tags of this product family. Please refer about the details in the description or datasheet.
Verwendung/IP-Code: IP20 - IP44 (indoor)
Konstantstrom: 0,2A, 0,5A, 0,7A, 0,35A, 1,05A
Dimmbarkeit/Steuerung: DALI, DMX
Farbtemperatur/Lichtfarbe: RGB/3Kanäle, RGBW/4Kanäle
Datasheet
PWR106/M; PWR106/S; PWR1060/A
Tech sheet POWERdrive 106
Quick Start Guide

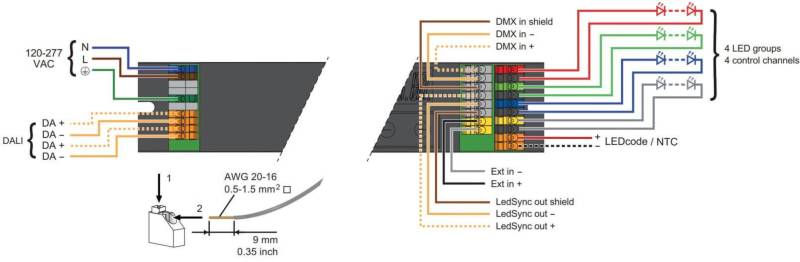

Instruction wiring diagram
Operating with astronomical cloc
Operating with motion sensor
Additional Downloads 106/S
Additional Downloads 106/M
Read, write and discuss reviews... more
Customer evaluation for "eldoLED POWERdrive 106 DALI/DMX"
22 May 2022

Sehr freundlich und schnelle Lieferung.

28 Apr 2020

Enwandfrei

Sehr gutes Produkt.

Write an evaluation
Evaluations will be activated after verification.
I have read and understood the Privacy policy.

The fields marked with * are required.

eldoLED LINEARdrive 720D DALI/DMX eldoLED LINEARdrive 720D DALI/DMX
128.00€ * 135.90€ *
Order number: LIN720D3
eldoLED POWERdrive 180D DALI/DMX eldoLED POWERdrive 180D DALI/DMX
148.25€ * 162.57€ *
Order number: PWR180D2

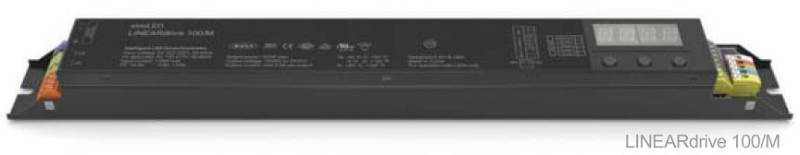

lineardrive 100 bauform m eldoLED LINEARdrive 100 DALI/DMX
