E27 socket with wireless module side

87.24€ *
Net price: 75.21€

Prices incl. VAT plus shipping costs

Please select a variant first

Version:

Construction:


piece

E27 Lamp Socket with integrated Phasedimmer with Casambi Wireless Modul You like to pimp your... more

E27 Lamp Socket with integrated Phasedimmer with Casambi Wireless Modul

You like to pimp your luminaire with bulb inside, but do not have space in the lamp for installiing additional wireless modul.
This is the solution. Just change the E27 lamp socket with this one and you can control the lamp with the integreted phasedimmer from Casambi (TED).
This works fine with most of the dimmable LED-bulbs or ESL and sure with incandelescent bulbs.

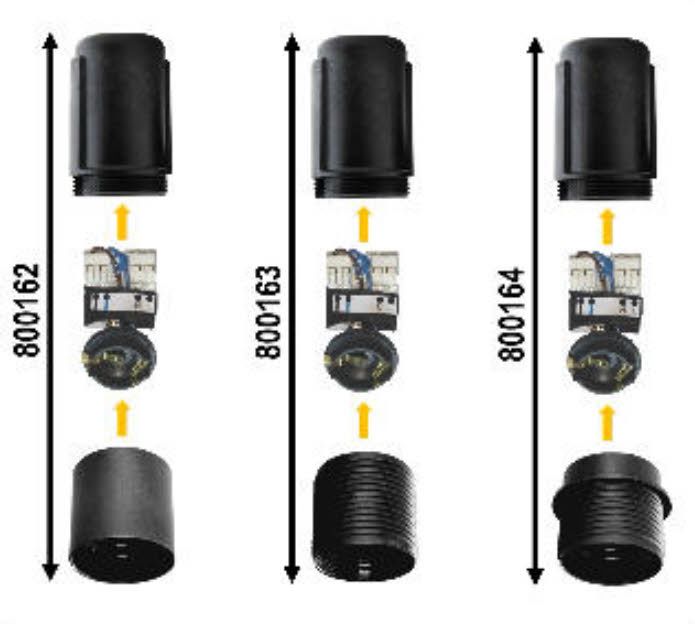

The Product comes with three different sets (plain skirt, threaded skirt or partly threaded skirt) and differs in its construction: There is a version including a dome with a threaded hole as well as one including a dome with a key hole.

Functions of the Casambi wireless controlled lamp socket

Easily operated E27 lampholder with dimmer to control lamps with smartphone or tablet (Apple, Android)

  • For operation of incandescent lamps, dimmable LED lamps and dimmable CFL lamps
  • Free App from Casambi (Apple / Android):
    • Lighting contol - configuration of luminaires and networks
    • Creation of scenes and animations
    • Photo of luminaires in the room turns to push button
    • Automatic detection of new devices
  • A gateway is not necessary
  • Integrated antenna
  • Also controllable via standard wall switch or Xpress remote control
  • Apple Watch compatible
  • The link to the app and Installationguides you will find on our website
  • Wire 0.5-1.5mm², strip 6-8mm, ferrules
  • Pollution degree: 2

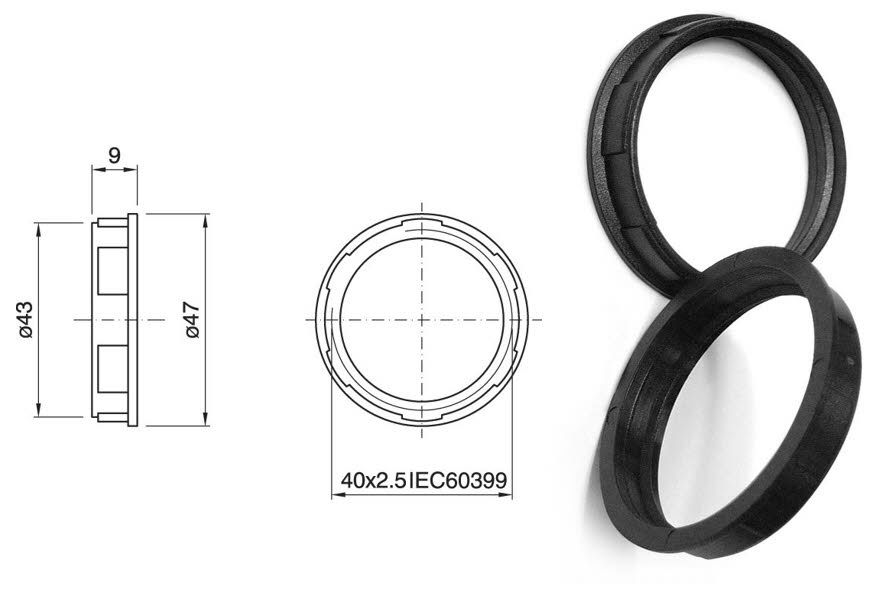

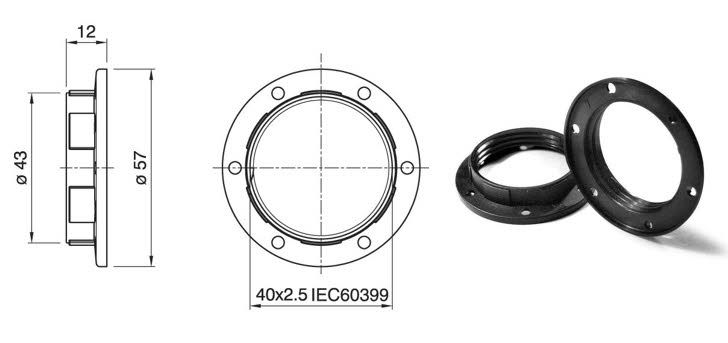

  • Matching strainers and shade holder rings you will find in our assortment

Technical data of CASAMBI – E27 Lamp Socket

Article number Ar-800162 Ar-800163 Ar-800164 Ar-800165 Ar-800166 Ar-800167
Construction Dome with key hole Dome with threaded hole
Version Plain skirt Threaded skirt Partly threaded skirt Plain skirt Threaded skirt Partly threaded skirt
Type A800TPBT230-25ASSB A801TPBT230-25ASSB A802TPBT230-25ASSB A800TPBT230-25NIPB A801TPBT230-25NIPB A802TPBT230-25NIPB
Power supply input 220..240 VAC
Signal input BT 4.0 (2,4GHz) lite @ Smart-Geräte
Radio signal 2,4..2,483 GHz; 4 dBm
Frequency 50..60Hz
Max. Power at 230Vac 1..25 W
Ambient temperature (ta) -20..+30 °C
Portection level IP20
Dimensions (mm) 38x89 40x89 46x89 38x98 40x98 46x98


You can download the appe for free here:

QR Code casambi App in Appstore Casambi App in Appstore
QR Code Casambi App for Android Casambi App for Android

Slideshow about wireless controlled lamp socket E27 with Casambi

Related links to "E27 socket with wireless module side"
E27 socket with integrated Casambi wireless modul (TED) inside.To pimp up your luminaire just... more
Features/tags of this product family. Please refer about the details in the description or datasheet.
Application/IP-Code: IP20 - IP44 (Indoor)
Base: E27
Dimmable/Control: BT4.0 (2,4 GHz), Casambi radio
Data sheet E27 Casambi Funk
For 800162, 800163, 800164
Data sheet E27 Casambi Funk
For 800165, 800166, 800167
Casambi app operating instructions
