EnOcean handheld transmitter 4-channel

Product information "EnOcean handheld transmitter 4-channel"

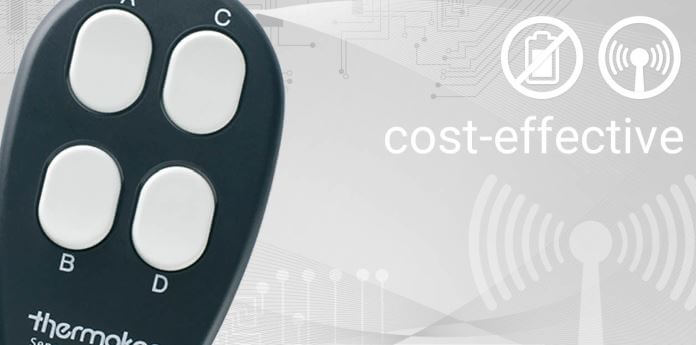

Handheld Transmitter 4-Channel for Remote Control of EnOcean Receivers

This cost-efficient EasySens® handheld transmitter can be used to implement lighting control via EnOcean radio. The device is suitable for a variety of  applications, such as room climate control, lighting control, scene control and shading control. Four buttons are available for operation, with data being transmitted immediately when one button is pressed. Another highlight is the integrated electrodynamic energy generator, regulating the power supply.

Product Overview / Features:

  • Handheld transmitter with EnOcean (IEC 14543-3-10) radio technology with a transmission power <10mW
  • Robustness against temperatures from -25°C to 65°C as well as up to 85% humidity
  • Maintenance-free electrodynamic energy generator for power supply

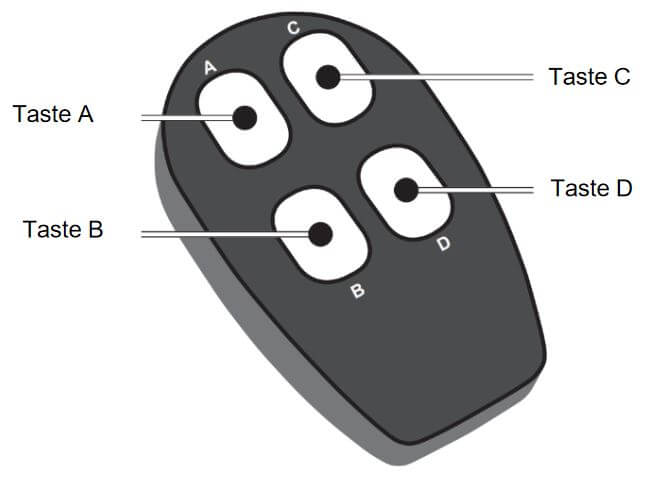

  • Operation via 4 buttons (4-channel) with labeling A to D

Notes on operating functions:

The actuating force of each button is 7 N, with an actuating travel of 2 mm. The corresponding number of switching cycles is greater than 50,000.

Further References:

Technical Data:

Intended useRoom climate, lighting, scene and shading control
Radio technologyEnOcean (IEC 14543-3-10), EEP F6-02-01 (RPS)
Transmitting power<10 mW
Frequency868 MHz, 902 MHz, 928 MHz
Operating elements4 buttons (4-channel)
Data transmissionImmediately when button is pressed
Transmission intervalWhen switch is pressed
Operating range temperature-25°C to 65°C
Operating range humidityMax. 85% rH, non-condensing
Power supplyMaintenance-free electrodynamic energy generator
ColorBlack, light gray
Dimensions (LxWxH)82x50x21 mm
Type of packagingSustainable folding carton
Dimensions packaging (LxWxH)90x90x35 mm

For more information, please refer to the data sheet in the download tab.

Properties "EnOcean handheld transmitter 4-channel"
·Dimmable/Control: Enocean (868 MHz)
Manufacturer "Thermokon"
Related links of the manufacturer

Data Sheet Remote Transmitter

4-channel, EnOcean radio,
