Flexible 12V LED Stripe Single Cut | 72 LEDs/m
Net price: 9.66€
Stückpreis: 1.15€ *
Prices incl. VAT plus shipping costs
- Order number: STR-372-14-805501
- Hersteller-Nr.: STR-372805501
- Weight: 0.005 kg
- Manufacturer: PUR-LED GmbH & Co .KG

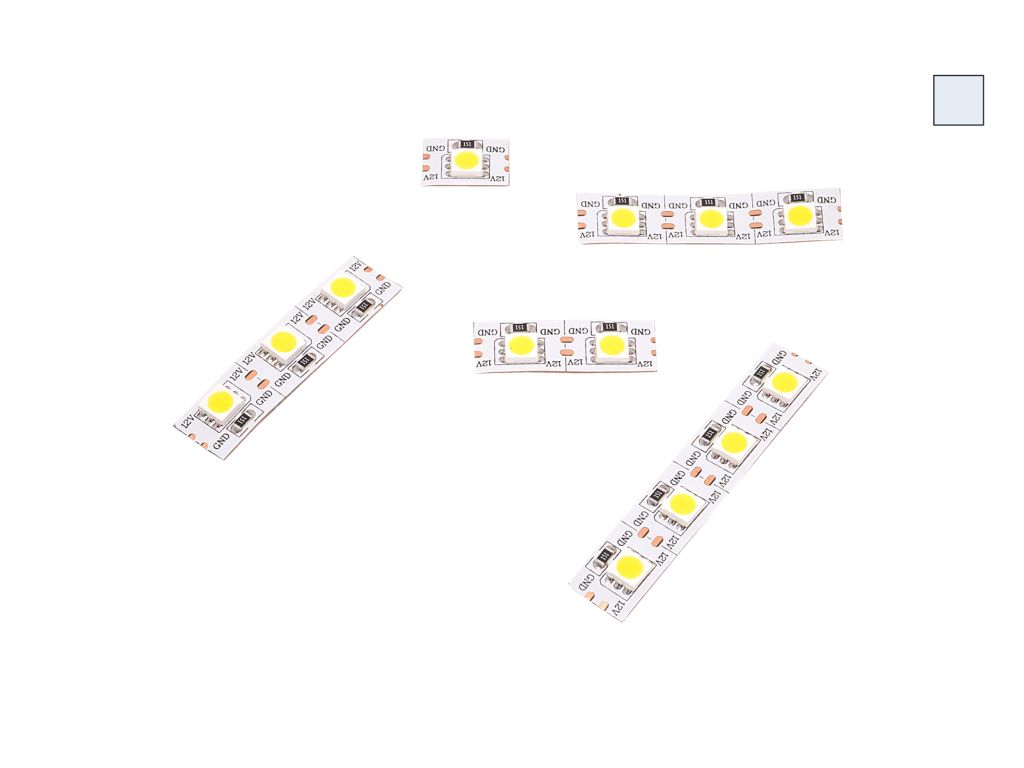

Flexible 12V LED Stripes Single Cut white for indoor applications with 72 LEDs/m
These LED Stripes can be cut individually after each LED (every 14mm). Thus, you can adapt these innovative LED Stripes Best as possible to your needs. Order only as many LEDs as you need. To get several LEDs in one piece, simply select the desired quantity when ordering. You will receive a maximum of 353 LEDs in one piece. With these LED stripes, things like shelves, showcases or individual pieces of furniture can be optimally illuminated by exact adaptability and thus brought to bear. In this version, the LED strips can be combined with all of our ALU profiles, which are also used for cooling.
For a sustainable operation, please note the information in the data sheet.
The most important features
- The supply voltage of 12V allows a large selection of LED transformers and the use in the vehicle interior
- The beam angle of 120° ensures large-area illumination
- The assembly density of 72 LEDs/m ensures uniform light distribution
- With a pitch of 14mm you can customize the LED Stripes exactly to your needs
Available color temperatures
- Cold white: 5,700 - 6,300 K
- Warm white: 2,900 - 3,200 K
- Effect lighting of cabinets, showcases and shelves
- Highlighting individual pieces of furniture through targeted lighting
- Lighting in the vehicle interior, eg for motorhomes
- Increase accessibility by illuminating stairs and other tripping hazards
- Atmospheric lighting in party cellars
- Indirect lighting for suspended ceilings
- Backlighting for TV sets
- Many other indoor applications possible
- Applications for which maximum adaptability is necessary
Scope of delivery:
• Order unit: 3-CHIP SMD - single cut with a length of approx. 14mm.
Order example: With 22 pieces, 22 x 14mm = 308mm = approx 30cm are delivered in one piece.
These can then be cut into individual elements with multiples of 14mm.
|Version||Indoor Flexible Single Cut|
|Power supply||12V dc|
|Luminous flux|| |
cool white: 430 lm/m
warm white: 430 lm/m
|Packing density||72 LEDs/m|
|Length||14 - 4.950 mm|
For further technical information, please refer to the data sheet.
In our shop you will find a large selection of matching 12V LED Transformers
|Application/IP-Code:||IP20 - IP44 (Indoor)|
|Lamp shape:||flexible (stripes)|
|rated luminous flux lm/m:||<500 lm/m|
|Color Temperature/Color:||3000K, >5000K|
|Amount LEDs/m:||72 LEDs/m|
