Flexible LED strips 24V white 72LEDs/m

Variant

€24.69*

net-price: €20.75

Content: 1 Meter

Prices incl. VAT plus shipping costs

1 Review

delivery time 3-5 Working days*

Product number: 665STR-100-8424705500

Manufacturer: PUR-LED GmbH & Co. KG

Manufacturer product number: STR-8424705500-100

Weight: 0.11 kg

Min. order quantity: 1

Our benefits

Purchase and advice from the LED expert
Professional products from over 15 years of experience
LED technology is our passion
Free shipping for orders over €150 (DE)

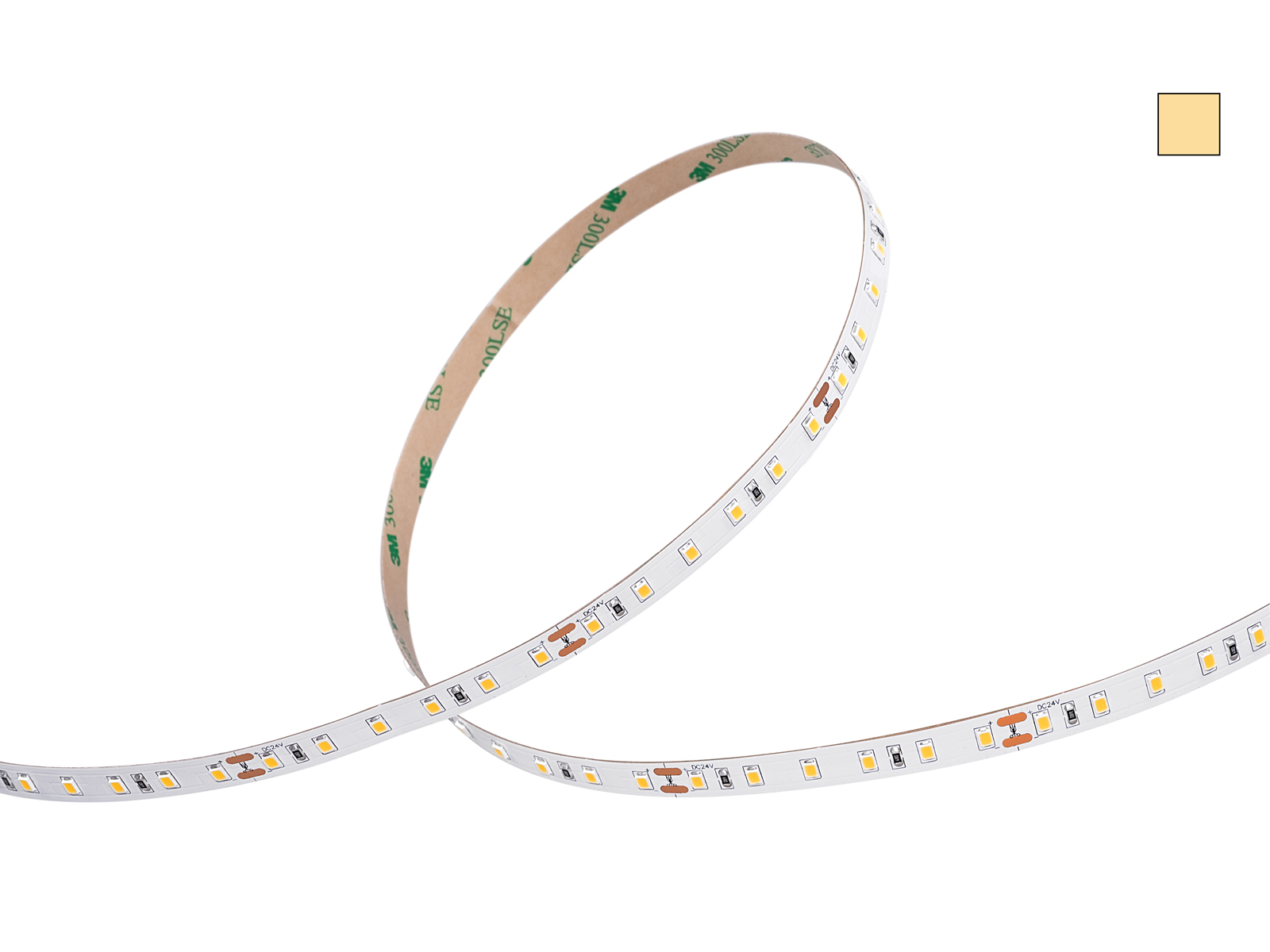

Product information "Flexible LED strips 24V white 72LEDs/m"

Flexible 24V LED strips white for indoor applications with 84 LEDs/m - different light colours available

These flexible LED Stripes ‘Flex 84’ are suitable for indoor applications and are ideal for room lighting and effect lighting for special requirements. These flexible LED strips can be used to illuminate cabinets, for example, or to emphasise individual pieces of furniture through targeted installation. In this version, the Stipes can be combined with all the aluminium profiles we offer, which also serve as cooling. The self-adhesive backing (double-sided, heat-resistant Scotch 3M adhesive tape) allows the LED strip to be installed quickly and easily. Equipped with a high-quality white backing material, the LED strip with its 84 SMD LEDs per metre ensures improved light reflection and homogeneous illumination.

For sustainable operation, please note the information on cooling the LED strips in the data sheet.

The most important features

The supply voltage of 24V allows a large selection of power supplies and use in the truck interior
The beam angle of 120 ° ensures large-area illumination
The assembly density of 84 LEDs / m ensures even and homogeneous light distribution
With a pitch of 71,5mm, you can customize the LED bar exactly to your needs
Different colour temperatures for versatile applications
A maximum of 5 metres can be operated at a time

Available color temperatures

Cold white 5.700 - 6.300 K
Neutral white 4.200 - 4.600 K
Warm white 2.900 - 3.200 K
Warm white Comfort 2.500 - 2.750 K

Application examples:

Illumination of cabinets and drawers
Highlighting individual pieces of furniture through targeted lighting
Lighting in the truck interior eg in holds
Increase accessibility by illuminating stairs and other tripping hazards
Atmospheric lighting in party cellars
Indirect lighting of suspended ceilings
Backlight of TV sets
Many other indoor applications possible

Technical data for the LED strips

Versions	indoor, flexible
Power supply	24V dc
Luminous flux	1350-1450 lm/m depending on the color temperature
Power	16 W/m
Packing Density	84 LEDs/m
Beam angle	120°
dimmable	with pwm
Width	10 mm
Height	2 mm
Division	71.5mm with 6 LEDs

For further technical information, please refer to the data sheet.

In our shop you will find a large selection of matching 24V power supplies

Properties "Flexible LED strips 24V white 72LEDs/m"

·Amount LEDs/m:	84 LEDs/m
·Application/IP-Code:	IP20 - IP44 (Indoor)
·Color Temperature/Color:	2700K, 3000K, 4000K, >5000K
·Constant Voltage:	24V
·Lamp shape:	flexible (stripes)
·Power/Meter:	10-20W/m
·rated luminous flux lm/m:	1000-2000 lm/m

Datasheet & further Infos about this product

Datasheet 24 V LED Stripe 84 LEDs/m

Manufacturer "PUR-LED GmbH & Co. KG"

PUR-LED GmbH & Co.KG

was founded in 2004 and transformed into PUR-LED GmbH & Co. KG IN 2009. The company specializes in LED strips, LED panels, power supply units, control units/controllers and LED aluminium profiles.

For more than 10 years we have been offering products from the manufacturer PUR-LED worldwide. Below is our portfolio of products. Tip: Use the filter function to quickly find the Items you need, or give us a call.

PUR-LED GmbH & Co. KG
Dr.-Dieter-Curschmann-Str.9 - 55278 Undenheim - Germany

E-Mail: info@pur-led.de

Safety instructions

Devices with 230V connection terminals are considered safety-relevant and may only be fitted or installed by qualified electricians or specialist personnel (e.g. IEC 60364, VDE0100, VDE0105).
