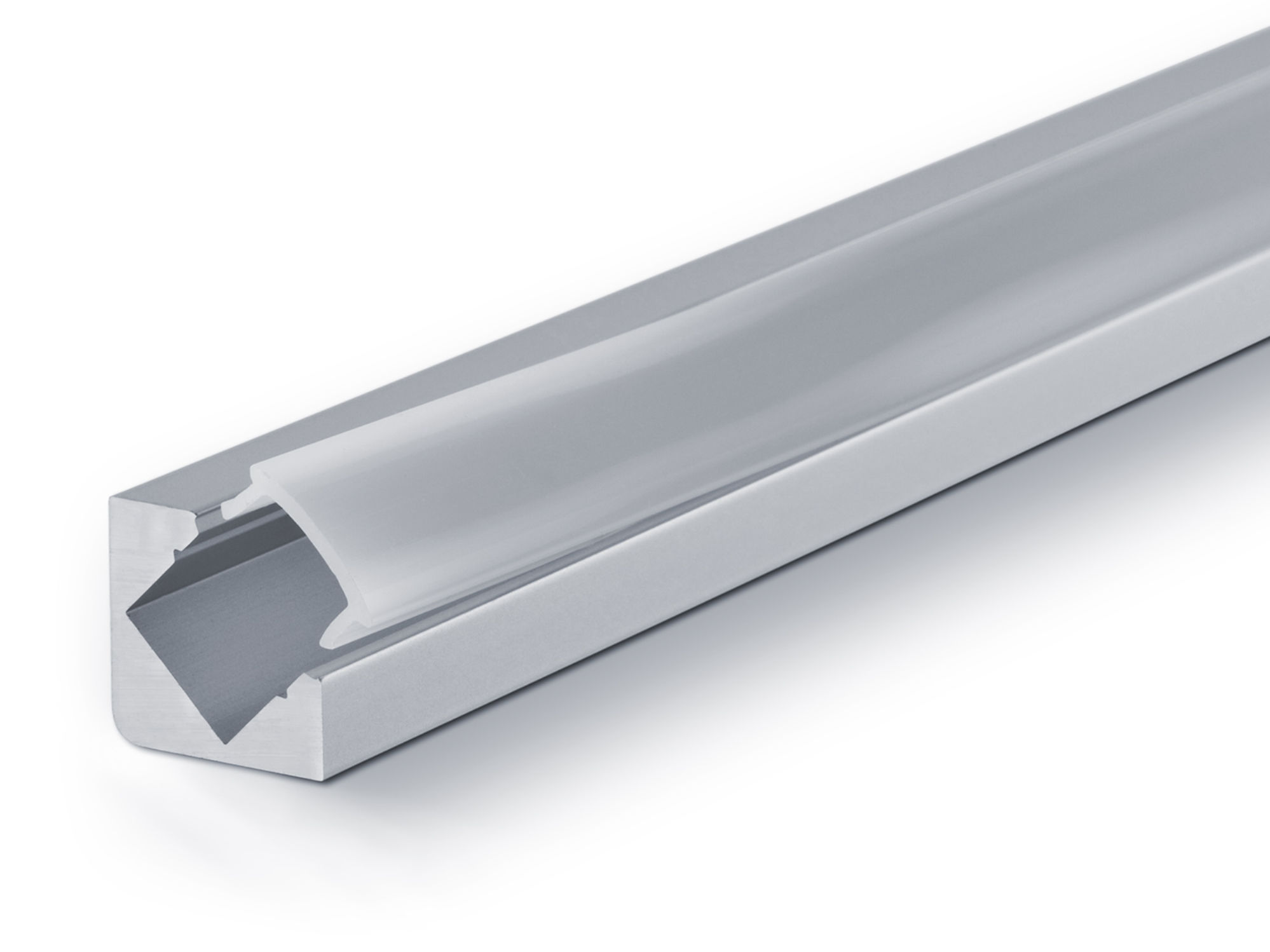

LED aluminum angle profile 45°

Variants from 107.14€ *
Net price: 90.03€
Content: 2 Meter (53.57€ * / 1 Meter)

Prices incl. VAT plus shipping costs

Please select a variant first

Length:

Cover:


Meter

  • ALU-945830-200-13
  • ALU-945830-200-13
  • 0.5 kg
  • PUR-LED GmbH & Co .KG
LED Winkelprofil 45° aus Aluminium für bis zu 25W/m Dieses LED Winkelprofil  in einer... more

LED Winkelprofil 45° aus Aluminium für bis zu 25W/m

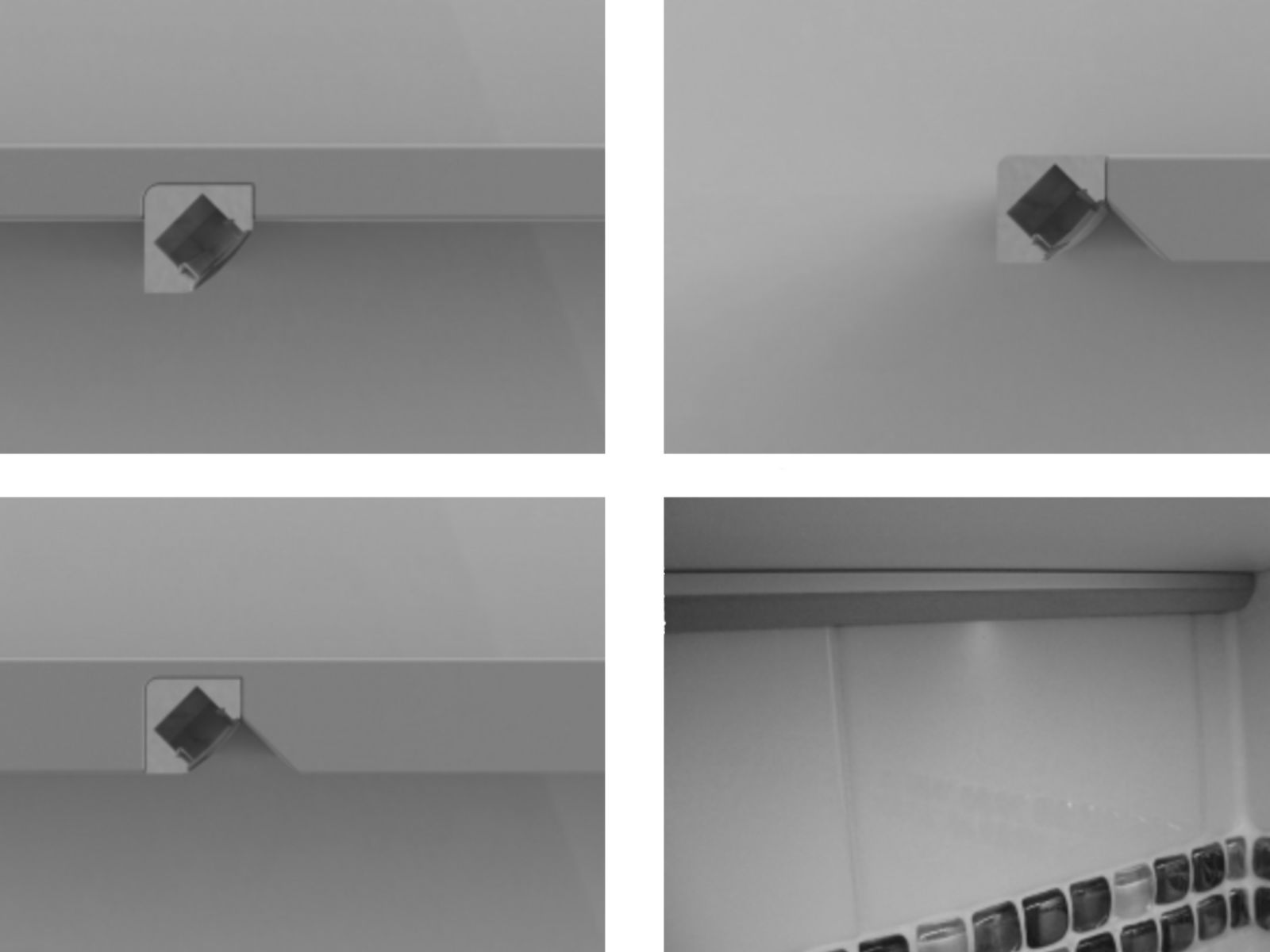

Dieses LED Winkelprofil in einer extra massiven Ausführung bietet neben der sehr stabilen Ausfühung gleichzeitig eine sehr schönes und zeitloses Erscheinungsbild. Die Kunststoffabdeckung kann ganz einfach in das 45°-Winkelprofil aus eloxiertem Aluminium eingeklippst werden und bietet eine optimale Kühlung für Ihre LED-Leiste. Mit diesem Profil lassen sich unsere LED Leisten platzsparend direkt in Ecken montiert werden.
Das hier angebotene LED Aluminium WInkelprofil 45° lässt sich mit den von uns angebotenen LED-Leisten kombinieren.

Do you want an individual cut? Please contact us, so we can make you a perfect offer for your needs!

Selectable covers

  • Opal white (strong light scattering, so the light is glare-free)
  • Transparent (provides the highest light transmission)

Aviable Lengths

  • 1m
  • 2m

Application examples:

  • Showcases
  • Furniture production (kitchens, office, etc.)
  • Cabinets
  • Stairs
  • Shop windows

Technical data for this LED profile

Version Angle profile 45°

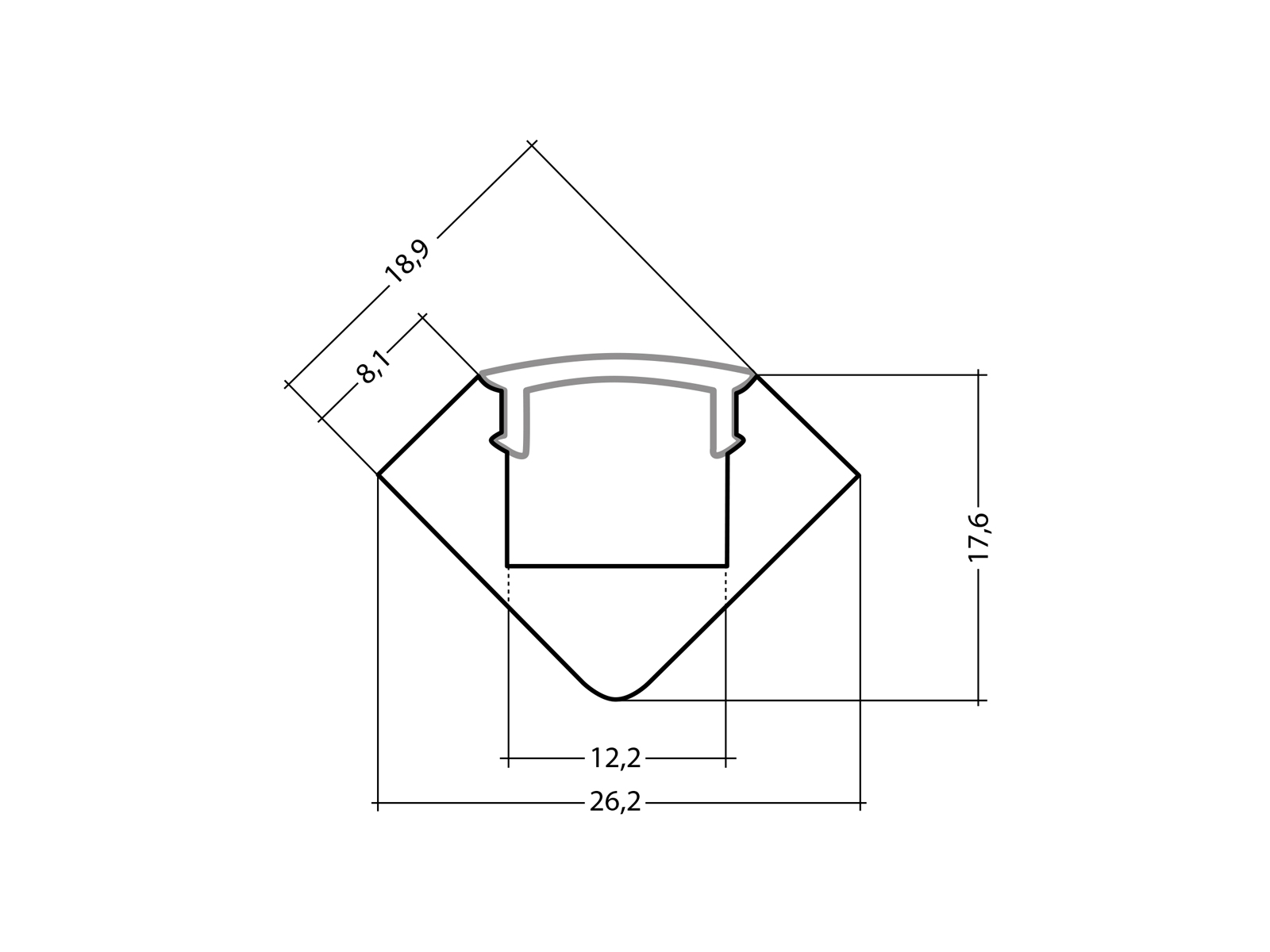

Dimension (LxWxH) in mm 1000/2000 x 26.2 (leg) x 17.6 (side)
Internal dimension in mm td> 12.2 (Für bis zu 12mm breite LED Leisten)
Material Anodized aluminum nature
Suitable for LED bars up to 25 W/m

Technical data of the cover

Dimension (LxWxH) in mm 1000 x 20 x 10
Material PMMA


Package contents

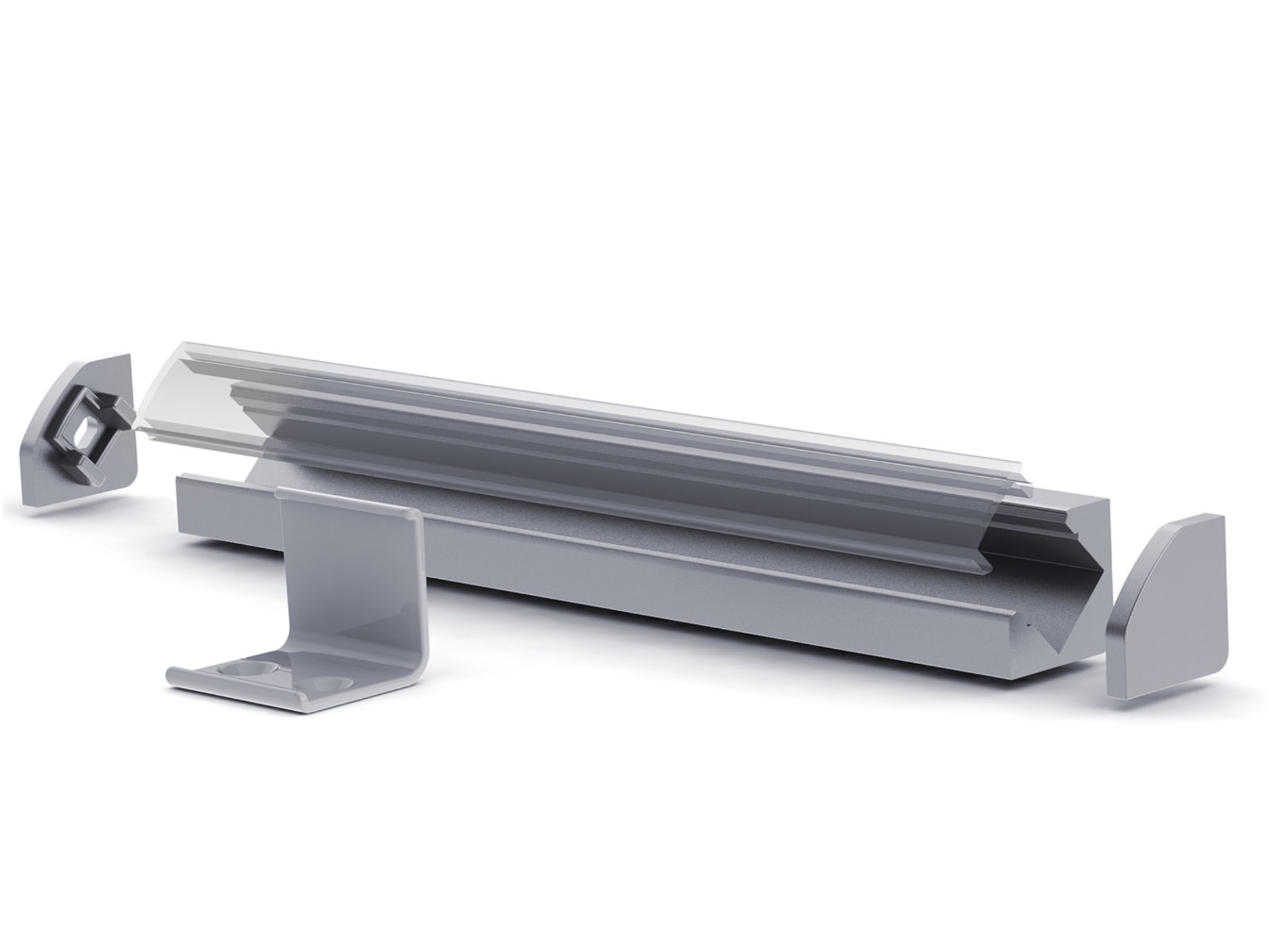

  • LED angle profile 45 ° made of aluminum optionally in 1m or 2m length
  • The chosen cover
  • Without LED strips or other bulbs

In our shop you will find a large selection of matching LED stripes such as this 24V LED stripe white with 72 LEDs/m
Related links to "LED aluminum angle profile 45°"
Angle profile 45° made of aluminum for LED strips up to 25W/m. Various covers available. more
Features/tags of this product family. Please refer about the details in the description or datasheet.
Lamp shape: Cooling profile gen.
Power/Meter: 10-20W/m, < 10W/m, > 20W/m
Read, write and discuss reviews... more
Customer evaluation for "LED aluminum angle profile 45°"
Write an evaluation
Evaluations will be activated after verification.
I have read and understood the Privacy policy.

The fields marked with * are required.

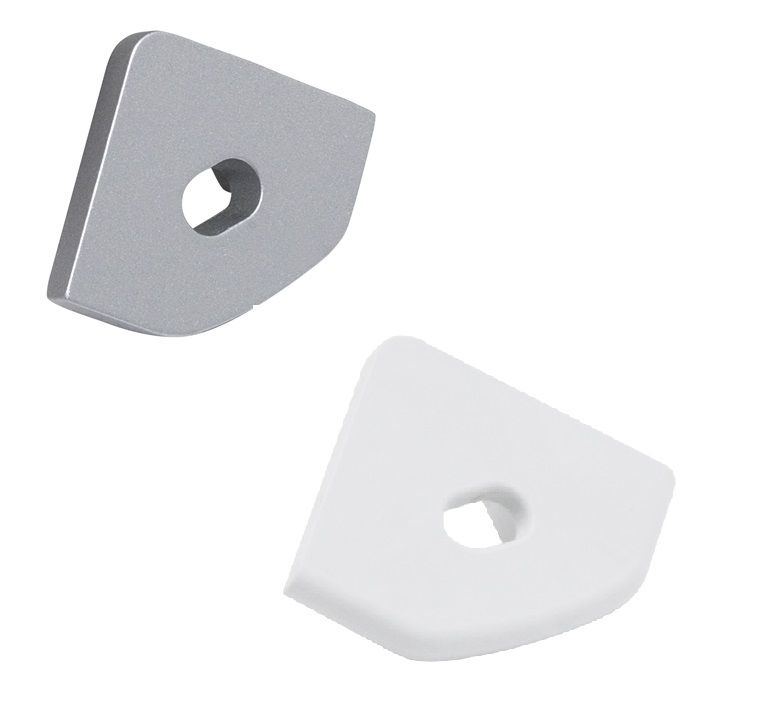

Endkappe Winkelprofil Alu End cap LED angle profile aluminum 45°
Content 1 Stück
4.34€ *
Order number: 795-ALU-9458303-G

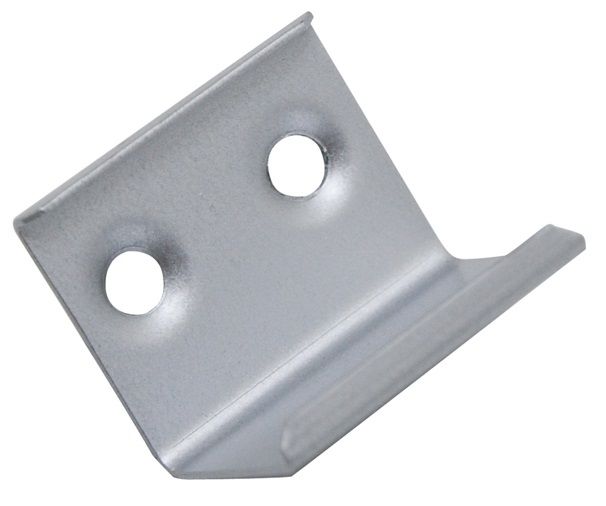

Mounting clip 45° angle profile Mounting clip 45° angle profile
Content 1 Stück
4.36€ *
Order number: ALU-9458308

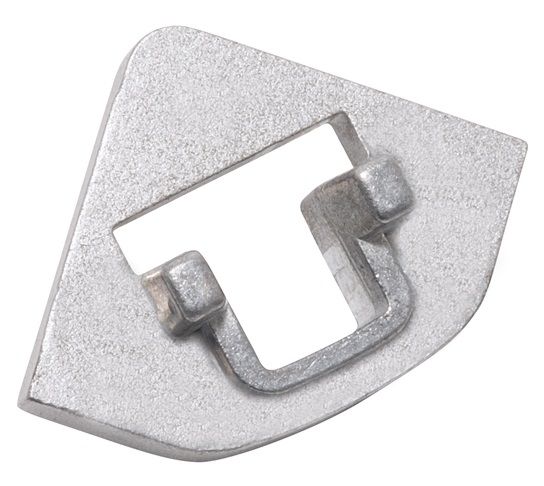

Connector Angle profile 45° Connector Angle profile 45°
