LED corner profile 45° angle 2m edge-line

Product information "LED corner profile 45° angle 2m edge-line"

LED corner profile (aluminum) with 45° inclination 200cm

This LED corner profile in elegant edge-design offers a wide range of covers and at the same time ensures cooling for LED strips up to 16W/m. The corner profile is made of anodised aluminum and the cover of choice can easily be clipped into it.
With this profile, our LED strips can be mounted directly on the intended object to save space. The edges, which are pronounced at an angle of 45°, allow the profile to be ideally mounted in corners and fit harmoniously into the overall concept.
The LED corner profile in edge-design offered here can be combined with the LED strips we offer too. Please pay attention to the respective power/W. A too weak designed cooling profile could create too much heat for the LED strips, which leads to premature aging but it affects also color location and color temperature change.

Do you want an individual cut? Please contact us, so we can make you a perfect offer for your needs!

Selectable covers

  • Opal white (strong light scattering, so the light is glare-free)
  • Transparent (provides the highest light transmission, available with lens optics from 45° to 90°)
  • Diffuse linear lens (beam angle from 30° to 90° along the longitudinal axis)

Diffuse covers are ideal for RGB strips, as they mix the base colors perfectly and produce fewer individual color errors.

Application examples:

  • Use in showcases for optimal lighting
  • For wooden furniture for visual enhancement or lighting
  • Workplace lighting
  • Wallwasher
  • Ceiling lights

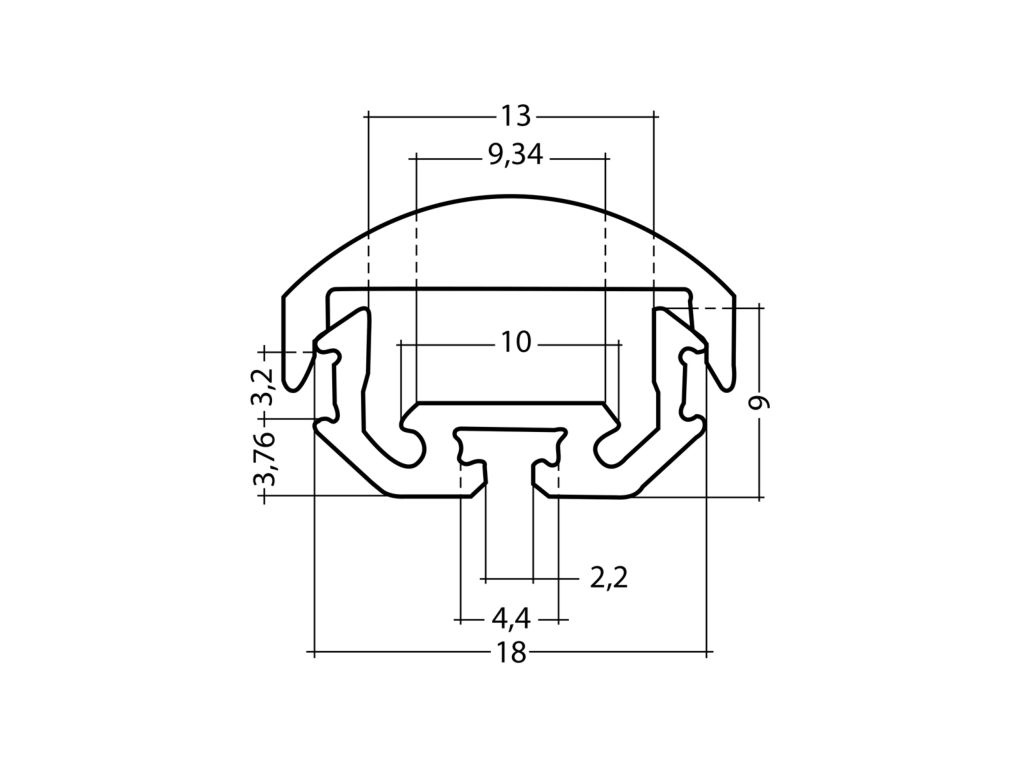

Technical data for this LED profile

Version45 degrees 1m
Dimension (LxWxH) in mm2000 x 18 x 9
Internal dimension in mm 13 (Für bis zu 12mm breite LED Leisten)
Width downside in mm18
MaterialAnodized aluminum nature
Suitable for LED bars up to16 W/m

Technical data of the cover

Dimension (LxWxH) in mm2000 x 20 x 10
MaterialPMMA


Package contents

  • LED corner profile made of aluminum 2m
  • The chosen cover
  • Without LED strips or other bulbs
This profile is also available in 1m version here

In our shop you will find a large selection of matching LED stripes such as this 24V LED stripe white with 72 LEDs/m
Properties "LED corner profile 45° angle 2m edge-line"
·Lamp shape: Edge profile
·Power/Meter: 10-20W/m, < 10W/m
Manufacturer "PUR-LED GmbH & Co. KG"

The company made it to their goal, to produce environmental friendly, innovative and especially in high quality. With the brand Trelight, PUR-LED® especially covers the control sector of multicolored LEDs. The Trelight-series can be controlled via wallswitch, radio or downloadable app, depending on the product.

Related links of the manufacturer

0 of 0 reviews

Leave a review!

Share your experiences with other customers.


Related Products

ALU-945460

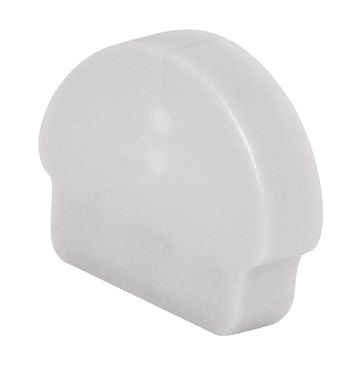

End cap LED profiles edge-line
To finish off our edge-line LED profiles.
Product number: 782-ALU-945460

€0.73*

Similar Products

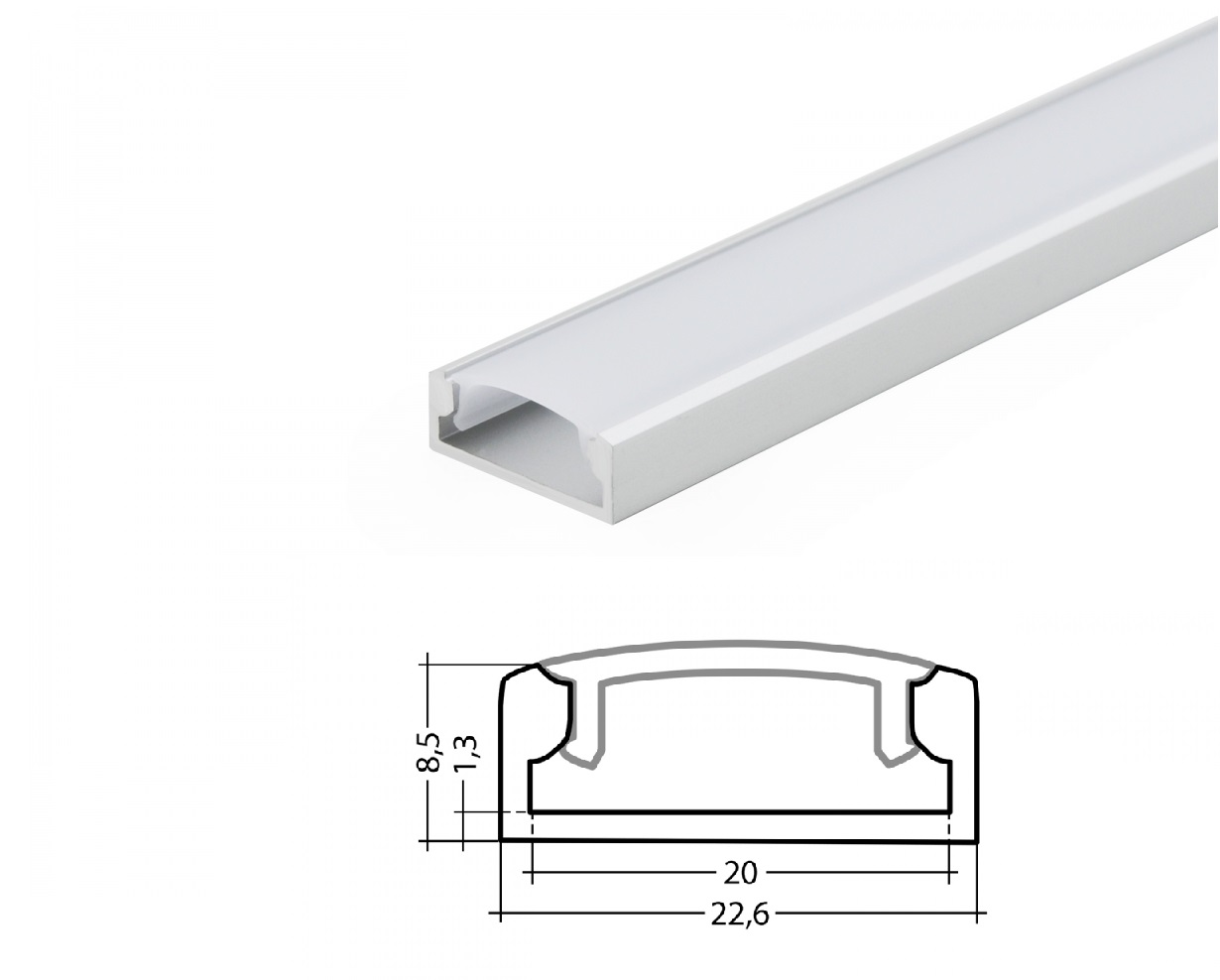

LED Alu U-Profile Slim XL 8mm silver with cover
