LED cooling profile 2m edge-line

Variants from 54.92€ *
Net price: 46.15€
Content: 2 Meter (27.46€ * / 1 Meter)

Prices incl. VAT plus shipping costs

Please select a variant first

Covering:


Meter

  • ALU-9454501-200-12
  • ALU-9454501-200-12
  • 0.88 kg
  • PUR-LED GmbH & Co .KG
LED cooling profile 200cm (aluminum) for up to 30W/m This LED cooling profile in elegant... more

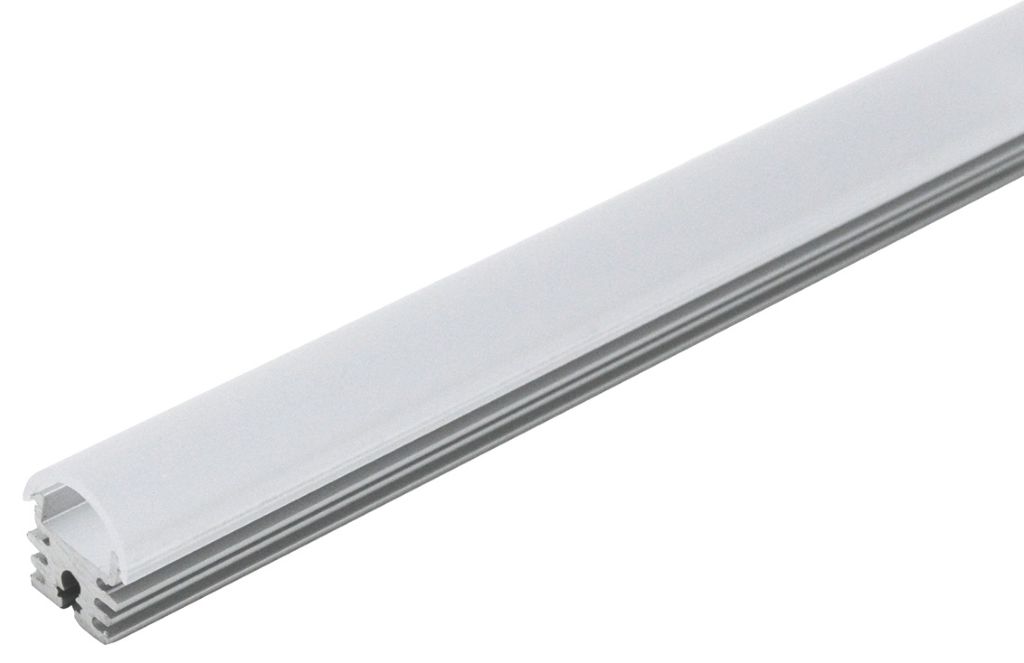

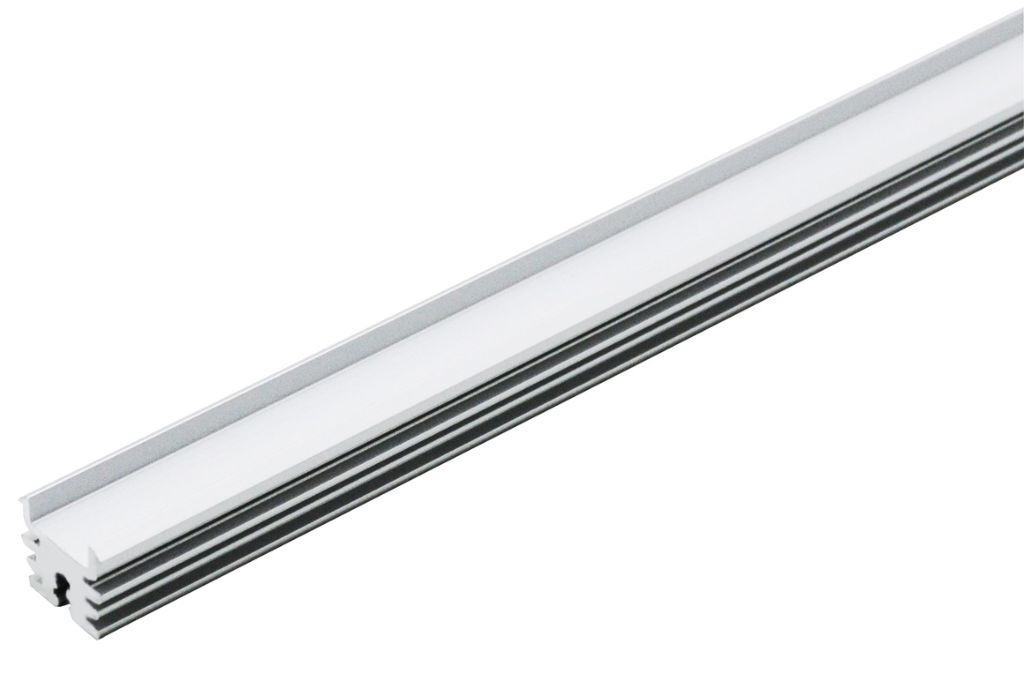

LED cooling profile 200cm (aluminum) for up to 30W/m

This LED cooling profile in elegant edge-design offers a wide range of covers and at the same time ensures cooling for LED strips up to 30W/m. The cooling profile is made of anodized aluminum and let you clip it in the cover of your choice.
With this profile, our LED strips can be mounted directly on the intended object to save space. The additional cooling fins allow the cooling profile to optimally cool powerful LED strips.
This LED aluminum profile in edge-design can be combined with LED strips we offer too.

Do you want an individual cut? Please contact us, so we can make you a perfect offer for your needs!

Selectable covers

  • Opal white (strong light scattering, so the light is glare-free)
  • Transparent (provides the highest light transmission, available with lens optics from 45° to 90°)
  • Diffuse linear lens (beam angle from 30° to 90° along the longitudinal axis)

Diffuse covers are ideal for RGB strips, as they mix the base colors perfectly and produce fewer individual color errors.
By using a 30 ° lens, a far-reaching light image is generated, which is suitable for wallwashers, workplace lighting or ceiling lights.

Application examples:

  • Use in showcases for optimal lighting
  • For wooden furniture for visual enhancement or lighting
  • Workplace lighting
  • Wallwasher
  • Ceiling lights

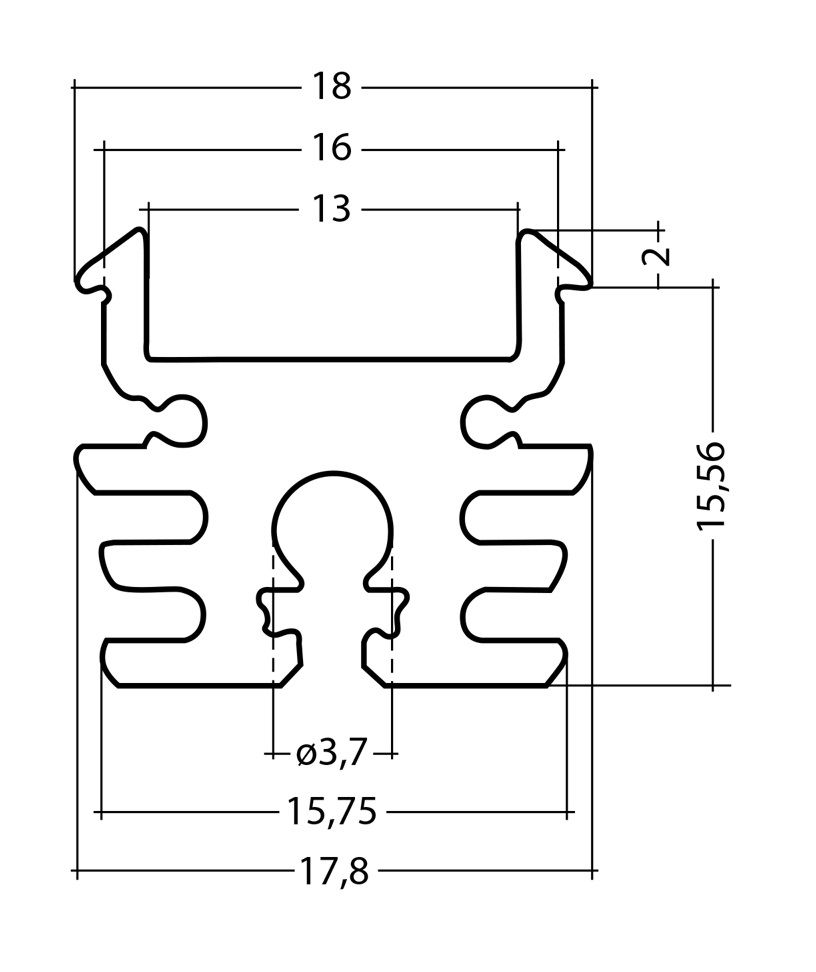

Technical data for this LED profile

Version Cooling profile 2m
Dimension (LxWxH) in mm 2000 x 18x 16
Internal dimension in mm  13 (For up to 12mm wide LED strips)
Width downside in mm 17.8
Material Anodized aluminum nature
Suitable for LED bars up to 30 W/m

Technical data of the cover

Dimension (LxBxH) in mm 2000 x 20 x 10
Material PMMA


Package contents

  • LED aluminum cooling profile (200cm)
  • The chosen cover
  • Without LED strips or other bulbs

This profile is also available in 1m version here

In our shop you will find a large selection of matching LED stripes such as this 24V LED stripe white with 72 LEDs/m
Related links to "LED cooling profile 2m edge-line"
Cooling profile with 200cm length for LED strips up to 30W/m. Various covers available. For high... more
Features/tags of this product family. Please refer about the details in the description or datasheet.
Lamp shape: Cooling profile gen., Edge profile
Power/Meter: 10-20W/m, < 10W/m, > 20W/m
Read, write and discuss reviews... more
Customer evaluation for "LED cooling profile 2m edge-line"
Write an evaluation
Evaluations will be activated after verification.
I have read and understood the Privacy policy.

The fields marked with * are required.

Edge Profil LED corner profile 45° angle 2m edge-line
Content 2 Meter (19.61€ * / 1 Meter)
Variants from 39.22€ *
Order number: ALU-945451-200-12
LED Kühlprofil mit Abdeckung LED cooling profile 1m edge-line
Content 1 Meter
Variants from 32.69€ *
Order number: ALU-9454501-100-12
LED Eckenprofil LED corner profile 45° angle 1m edge-line
Content 1 Meter
Variants from 26.16€ *
Order number: ALU-945451-100-12
G
A G
Flexible 24V LED Stripe | 120 LEDs/m Flexible 24V LED Stripe | 120 LEDs/m
Content 1 Meter
Variants from 20.98€ *
Order number: AR1452-WW23-100
Flexible 24V LED Stripe KSQ | 72 LEDs/m Flexible 24V LED Stripe KSQ | 72 LEDs/m
Content 1 Meter
Variants from 35.83€ *
Order number: STR-396XX572-60-100
LED U-profile AL-PU6 17mm with cover 2.0m LED U-profile AL-PU6 17mm with cover 2.0m
Content 2 Meter (10.89€ * / 1 Meter)
21.78€ *
Order number: ALU-945776-ws-11
G
A G
LED Band Indoor flexibel 24V in warmweiß comfort Flexible LED strips 24V white 60LEDs/m
Content 1 Meter
Variants from 12.41€ *
Order number: STR124-705500-200
F
A G
Flexible 24V LED Stripe KSQ| 120 LEDs/m Flexible 24V LED Stripe KSQ| 120 LEDs/m
Content 1 Meter
Variants from 48.14€ *
Order number: STR-81016835-100
G
A G
5m outdoor LED strip 24V white 120LEDs/m IP67 5m outdoor LED strip 24V white 120LEDs/m IP67
Content 5 Meter (27.73€ * / 1 Meter)
138.67€ *
Order number: O24W120-KW
LED Kühlprofil mit Abdeckung LED cooling profile 1m edge-line
Content 1 Meter
Variants from 32.69€ *
Order number: ALU-9454501-100-12
Edge Profil LED corner profile 45° angle 2m edge-line
Content 2 Meter (19.61€ * / 1 Meter)
Variants from 39.22€ *
Order number: ALU-945451-200-12
Place of Antenna Casambi, IP65 waterproof, PWM dimming,...
109.35€ *
Order number: 808885
Double wire ZUB-21011 1m 2x 0.75mm² double wire / cable white
Content 1 Meter
2.86€ *
Order number: ZUB-21011
5-pin cable ZUB-21018 1m 4x 0,25mm² + 1x 0,34mm² 5-pol. RGBW cable...
Content 1 Meter
9.96€ *
Order number: ZUB-21018

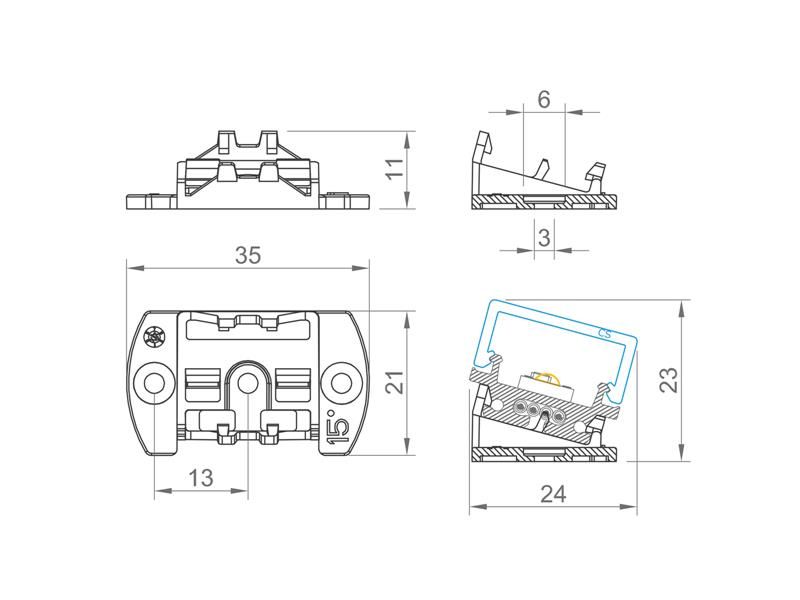

Mounting clip 45° angle profile Mounting clip 45° angle profile
Content 1 Stück
4.36€ *
Order number: ALU-9458308

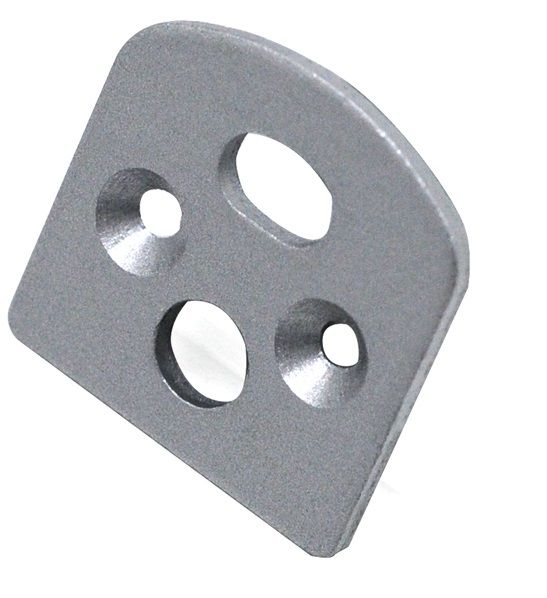

End cap LED cooling profiles edge-line End cap LED cooling profiles edge-line
