Flexible 24V LED Stripe 25 w/m KSQ| 140 LEDs/m

Product information "Flexible 24V LED Stripe 25 w/m KSQ| 140 LEDs/m"

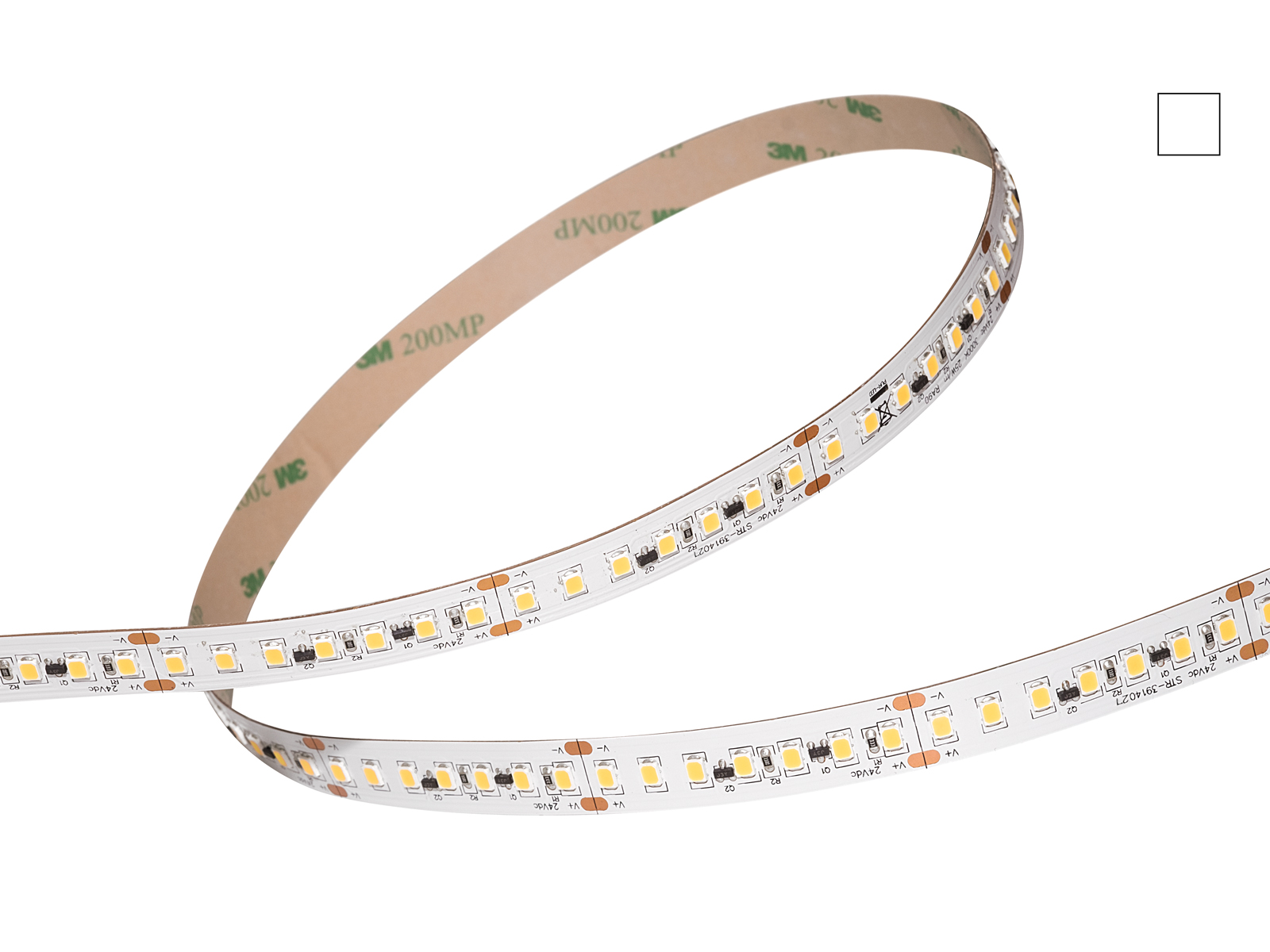

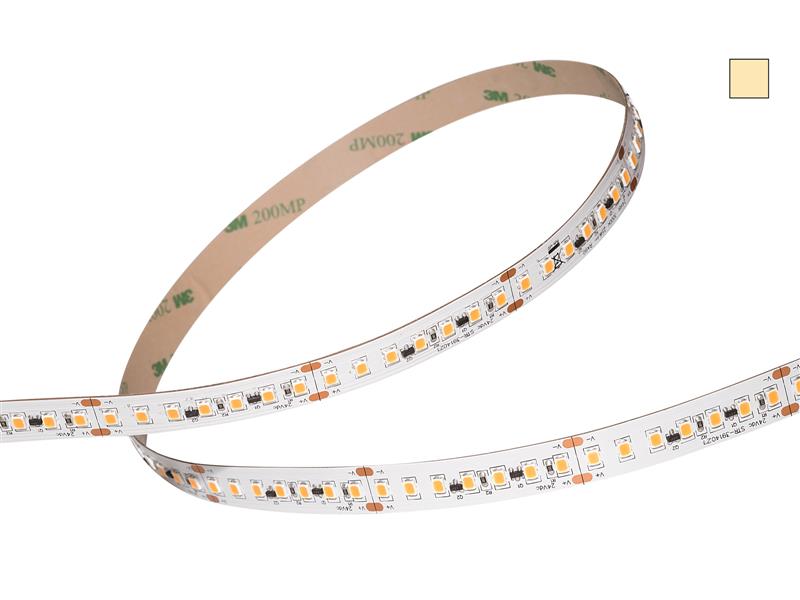

Flexible 24V LED Stripes white for indoor applications with 140 LEDs/m and built-in constant current sources

These LED stripes are suitable for Indoor applications and are ideal for room and general lighting. The constant current sources installed here ensure uniform light distribution over the entire length of the stripes. At the same time, voltage fluctuations in the power supply are automatically compensated, as the stripes achieve the same brightness at a voltage between 22Vdc and 27Vdc. With these flexible LED strips, shelves or showcases can be optimally illuminated or individual pieces of furniture can be accentuated by targeted mounting. The integrated constant current sources make the Stripes ideal for battery operation.  In this design the LED strips can be combined with all the aluminium profiles we offer, which also serve for cooling.

For sustainable operation, please refer to the information on cooling of the LED strips in the data sheet.



The most important features

  • The supply voltage of 24V allows a wide range of LED transformers.
  • The beam angle of 120° ensures large-area illumination.
  • The placement density of 140 LEDs/m ensures sufficient light distribution.
  • With a 50mm pitch you can adjust the LED strips to your needs.
  • integrated constant current sources.


Available color temperatures

  • Warmwhite: 3.000 K
  • Warmwhite Comfort: 2.700 K


Application examples:

  • Effect lighting of cabinets, showcases and shelves.
  • Highlighting individual pieces of furniture with targeted lighting.
  • Increase accessibility by illuminating steps and other tripping hazards
  • Emotional lighting in party basements.
  • Indirect lighting of suspended ceilings.
  • backlighting of TV sets.
  • Lighting of truck cabins / camper vans.
  • Lighting in cabins that only have a solar system with battery.
  • Many other indoor applications possible.


Technical data for LED strips

VersionIndoor Flexible KSQ
Power supply24V dc
Luminous flux



Warmwhite: 2350 lm/m

Warmwhite Comfort: 2250 lm/m

Power25 W/m
Assembly density140 LEDs/m
Beam angle120°
Width12 mm
Height2 mm
Division50 mm
Length1000 - 5000 mm

For further technical information please refer to the data sheet.

In our shop you will find a large selection of matching 24V LED transformers

Properties "Flexible 24V LED Stripe 25 w/m KSQ| 140 LEDs/m"
·Application/IP-Code: IP20 - IP44 (Indoor)
·Color Temperature/Color: 2700K, 3000K
·Lamp shape: flexible (stripes)
·Power/Meter: > 20W/m
·rated luminous flux lm/m: higher 2000 lm/m
·Amount LEDs/m: 140 LEDs/m
·Constant Voltage: 24V
Manufacturer "PUR-LED GmbH & Co. KG"

The company made it to their goal, to produce environmental friendly, innovative and especially in high quality. With the brand Trelight, PUR-LED® especially covers the control sector of multicolored LEDs. The Trelight-series can be controlled via wallswitch, radio or downloadable app, depending on the product.

Related links of the manufacturer

Datasheet LED Stripe 25 W/m 24Vdc Flex 140

STR-3914060, STR-3914040, STR-3914030, STR-3914027

0 of 0 reviews

Leave a review!

Share your experiences with other customers.


Similar Products

LED Band Indoor flexibel 24V in neutralweiß
Flexible LED strips 24V white 120LEDs/m
23W/m in different color temperatures available and excellently suitable for indoor areas with the highest demands such as room and workplace lighting.
Product number: 666STR
Length
+4

€48.12*
Flexible 24V LED Stripe KSQ | 72 LEDs/m
Flexible 24V LED Stripe KSQ | 72 LEDs/m
23W/m ideal for indoor applications for room lighting
Product number: STR396XX572
Length
+4

€35.83*

delivery time 3-5 Working days*

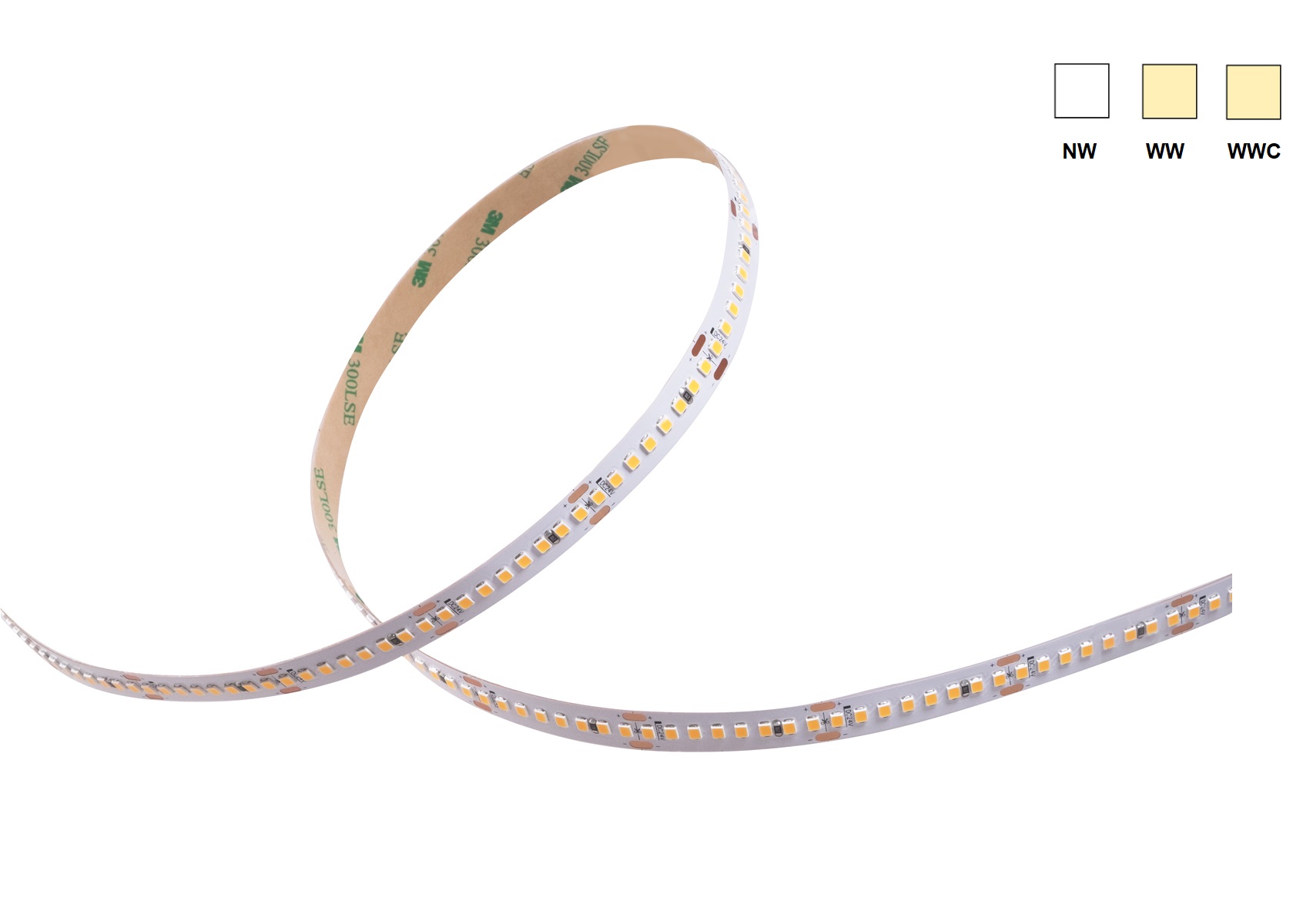

LED 1-CHIP Band/Stripe 24Vdc Highpower 192
