HVGC-65 watt LED Driver

Product information "HVGC-65 watt LED Driver "

65W Constant Current Mode LED Driver for 350mA - 1050mA incl. 3 in 1 Dimming Function

Product Description:

HVGC-65 series is a 65W LED AC/DC power supply featuring the constant current mode and high voltage output. The module operates from 180VAC - 528VAC and offers models with different rated current ranging between 350mA and 1050mA. Thanks to the high efficiency up to 90.5%, with the fanless design, the entire series is able to operate for -40°C to +80°C case temperature under free air convection. The design of metal housing and IP67/IP65 ingress protection level allows this series to fit both indoor and outdoor applications.
HVGC-65 is equipped with various function options, such as dimming methodologies, in order to provide the optimal design flexibility for LED lighting system.

Version HVGC-65 Type -xx-"A":

  • IP65 protection level
  • Output voltage and current limiting adjustable through built-in potentiometer
  • Smart timer dimming possible

Version HVGC65 Typ -xx-"B":

  • IP67 protection level

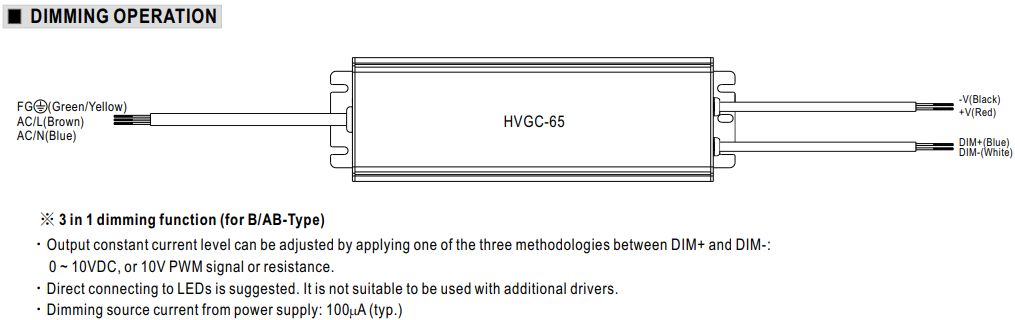

  • 3 in 1 dimming function (0-10 Vdc, 10V PWM signal and resistance)
  • Smart timer dimming possible

HVGC_65 Model_Encoding

Features:

  • Wide input range 180 ~ 528VAC
  • Constant Current mode output
  • Metal housing with Class I design
  • Built-in active PFC function
  • IP67 / IP65 design for indoor or outdoor installations
  • Function options: output adjustable via potentiometer;3 in 1 dimming (dim-to-off) ; Timer dimming
  • Typical lifetime>50000 hours
  • 5 years warranty
  • Applications:
    • LED street lighting
    • LED high-bay lighting
    • Parking space lighting
    • LED fishing lamp

Technical Data for HVGC-65-xxx mA:

Model (Type A)-350A-500A-700A-1050A
Model (Type B)-350B-500B-700B-1050B
Rated current
350 mA 500 mA 700 mA 1050 mA
DesignFor LED lighting applications (DIN EN61347)
Nominal voltage230 VAC
Min. input voltage180 VAC
Max. input voltage528 VAC
Constant current region 18-186 VDC13-130 VDC9-93 VDC6-62 VDC
Rated power (output)65,1 W65,0 W65,1 W65,1 W
Frequency range47-63 Hz
Efficiency90,0 % 90,5 % 90,5 % 90,0 %
Working temperature -40°C to +80°C
Storage temperature-40°C to +80°C
Type of constructionClosed
Material (housing)Primary aluminium
Protection levelType A: IP65 / Type B: IP67
Service life>50.000 h

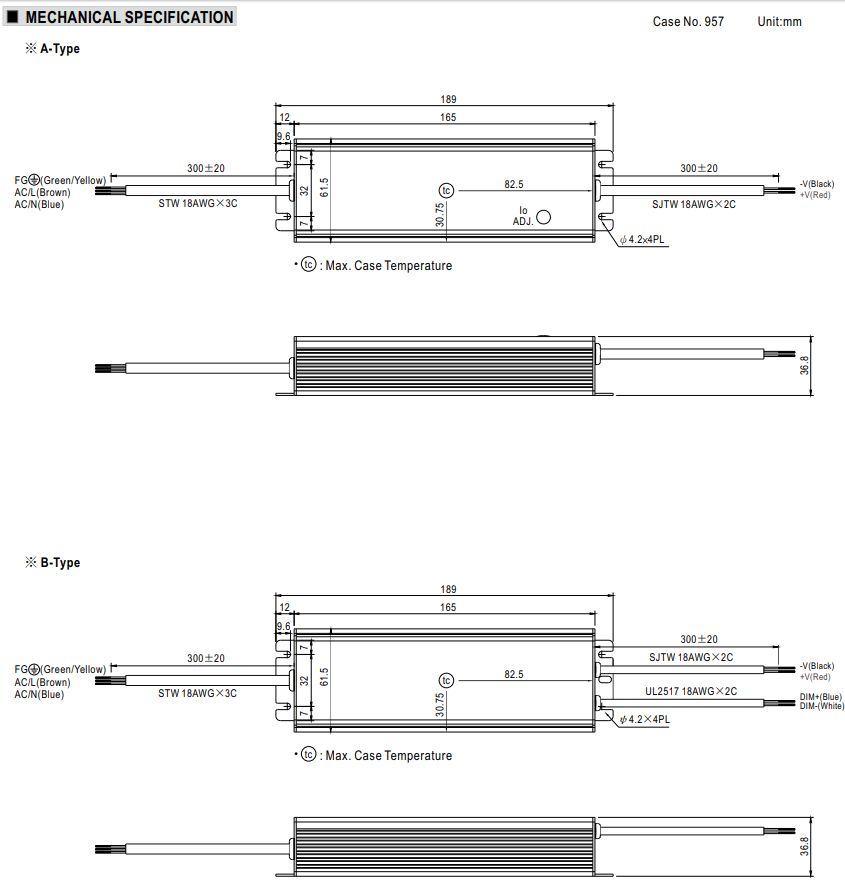

Dimensions189*61,5*36,8 mm (L*W*H)

The data sheet in the download tab provides further information.

Properties "HVGC-65 watt LED Driver "
·Application/IP-Code: IP20 - IP44 (Indoor), IP65/67 (Outdoor)
·Constant Current: 0,35A, 0,5A, 0,7A, 1,05A
·Dimmable/Control: 1..10V, PWM
·Meanwell Series: HVGC
·Power range: 50 - 100 W
Manufacturer "MEAN WELL"

Mean Well is a proven manufacturer of powerful and reliable switching power supplies and LED transformers. Mean Well power supplies have been tried and tested in many different ways. The name guarantees quality. The Meanwell HLG series and Meanwell ELG series in particular have become very popular in the LED industry

Related links of the manufacturer

Data sheet MW HVGC-65
Installation Manual LED power supply
