HLG-100H power supply from Mean Well

Product information "HLG-100H power supply from Mean Well"

Meanwell HLG100H-24

The HLG100H-24 is a high performance dust - and waterproof AC-to-DC LED power supply up to 100W. The Meanwell HLG100H - the LED switching power supply is suitable in execution, for example -12A, perfect for for performance among others with 12V lamps, such as low-voltage LED spotlight MR16 / GU5.3 or MR11 and LED Stripes. The high power (up to 100W), many LED lamps can be switched to a single transformer.
Saving of costs! Even in outdoor applications is the HLG100 very suitable due to high protection.

It is also possible to dim via an additional input (Typ B)

Model encoding HLG-75


HLG100H features (depends on type):

  • 7 Years manufacturers warranty
  • IP65 for indoor or outdoor installations
  • Cooling by free air convection
  • Built-in active PFC function
  • Protections: over -/laod, -/voltage, -/temperature
  • IP65/IP67 for outdoor installations

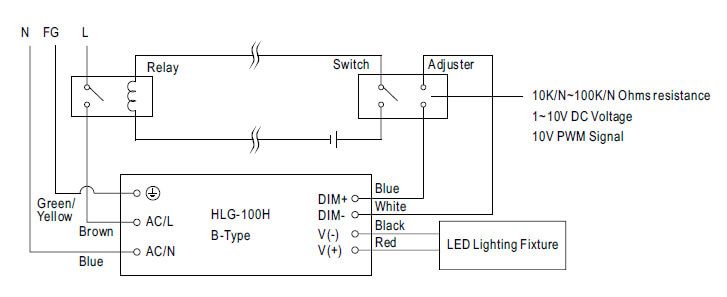

  • Three possibilities of dimming via 1-10 V, PWM or resistance
  • OCP point adjustable through output cable or internal potentiometer
  • Universal alternate current up to 305VAC
  • Type H for use Class I Zone 2 (gases and vapors)
  • Compliance to worldwide safety regulations for lighting
  • LED lighting especially street lighting applications

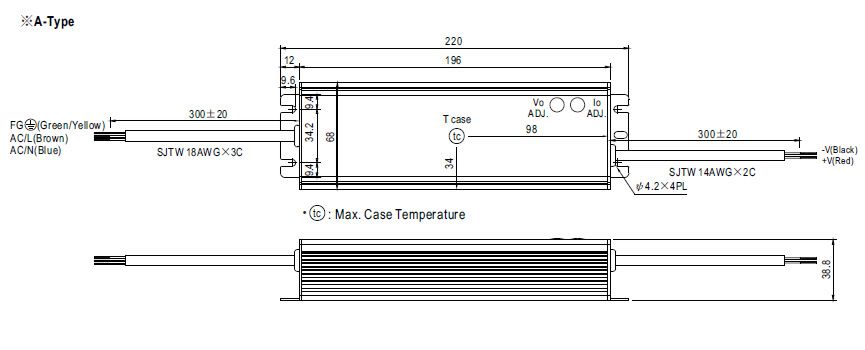

Performance HLG100H Typ -24 A:

  • IP65 design for indoor or outdoor installations
  • IP65 rated. Output voltage and and constant current level can
  • be adjusted through internal potential meter.

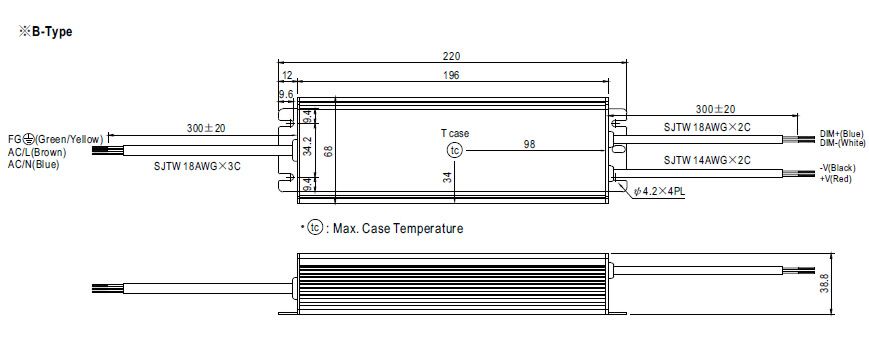

Performance HLG100H Typ -24 B:

  • Constant current control regulation about 1-10V or PWM entrance, as well as external potentiometer
  • IP67 protection. For indoor -and outdoor applications
  • High performance via DALI dimming in connection with DAP-04 DALI PWM converter

Technical data to Meanwell power supply HLG:

ExecutionFor LED and lighting applications
ModelSwitching power supply, Performance H
Input 90 - 305 VAC / 127 - 431 VDC 47 -63 Hz
Rated Power95,58 - 96W (voltage depending, see datasheet)
Surge solidity4 kV
Output operating parameters See data sheet
Design HLG
Approbation UL / EN Class C
Dimension220mm x 68mm x 38,8mm (H x W x D)

 On request, we also offer the type D or other voltage ranges.

Properties "HLG-100H power supply from Mean Well"
·Application/IP-Code: IP65/67 (Outdoor)
·Constant Voltage: 24V
·Dimmable/Control: 1..10V, PWM
·Meanwell Series: HLG
·Power range: 50 - 100 W
Manufacturer "MEAN WELL"

Mean Well is a proven manufacturer of powerful and reliable switching power supplies and LED transformers. Mean Well power supplies have been tried and tested in many different ways. The name guarantees quality. The Meanwell HLG series and Meanwell ELG series in particular have become very popular in the LED industry
