Meanwell HLG-120H power supply

Variants from 55.81€ *
Net price: 46.90€

Prices incl. VAT plus shipping costs

Please select a variant first

Voltage:

Type:


piece

  • HLG-120H-24-A
  • HLG-120H-24A
  • 0.73 kg
  • MEAN WELL
HLG120H-12/24 The HLG120H-12/24 is a high performance dust - and waterproof AC-to-DC LED... more

HLG120H-12/24

The HLG120H-12/24 is a high performance dust - and waterproof AC-to-DC LED power supply up to 120W. The Meanwell HLG120H - the LED switching power supply is suitable in execution, for example -12A, perfect for for performance among others with 12V lamps, such as low-voltage LED spotlight MR16 / GU5.3 or MR11 and LED Stripes. The high power (up to 120W), many LED lamps can be switched to a single transformer.
Saving of costs! Even in outdoor applications is the HLG120 very suitable due to high protection.

It is also possible to dim via an additional input (Typ B)

HLG120H features (depends on type):

  • 7 Years manufacturers warranty
  • IP65 for indoor or outdoor installations
  • Cooling by free air convection
  • Built-in active PFC function
  • Protections: over -/laod, -/voltage, -/temperature
  • IP65/IP67 for outdoor installations

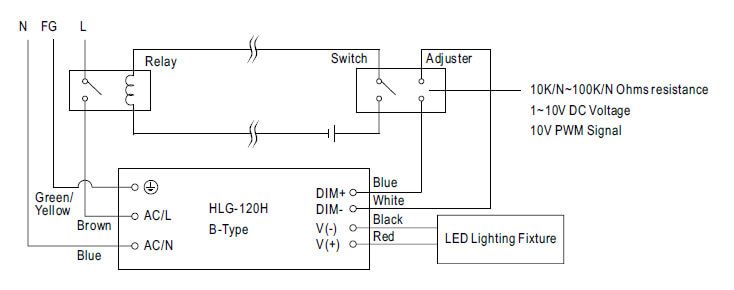

  • Three possibilities of dimming via 1-10 V, PWM or resistance
  • OCP point adjustable through output cable or internal potentiometer
  • Universal alternate current up to 305VAC
  • Type H for use Class I Zone 2 (gases and vapors)
  • Compliance to worldwide safety regulations for lighting
  • LED lighting especially street lighting applications


Performance HLG120H Typ - 12/24 A:

  • IP65 design for indoor or outdoor installations
  • IP65 rated. Output voltage and and constant current level can
  • be adjusted through internal potential meter.

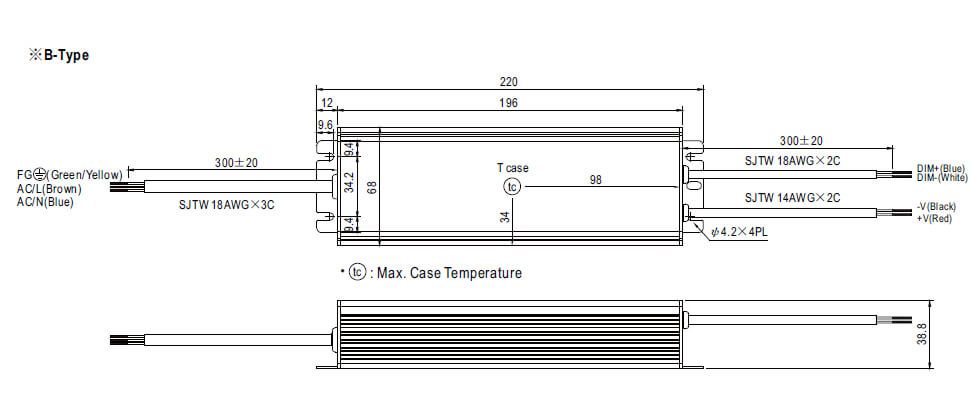

Performance HLG120H Typ - 12/24 B:

  • Constant current control regulation about 1-10V or PWM entrance, as well as external potentiometer
  • IP67 protection. For indoor -and outdoor applications



Technical data to Meanwell power supply HLG 120W:

Execution For LED and lighting applications
Model Switching power supply, Performance H
Input  90 - 305 VAC / 127 - 431 VDC 47 -63 Hz
Rated Power 120 - 124,2 W (voltage depending, see datasheet)
Surge solidity 4 kV
Output operating parameters  See data sheet
Design  HLG
Approbation  UL / EN Class C

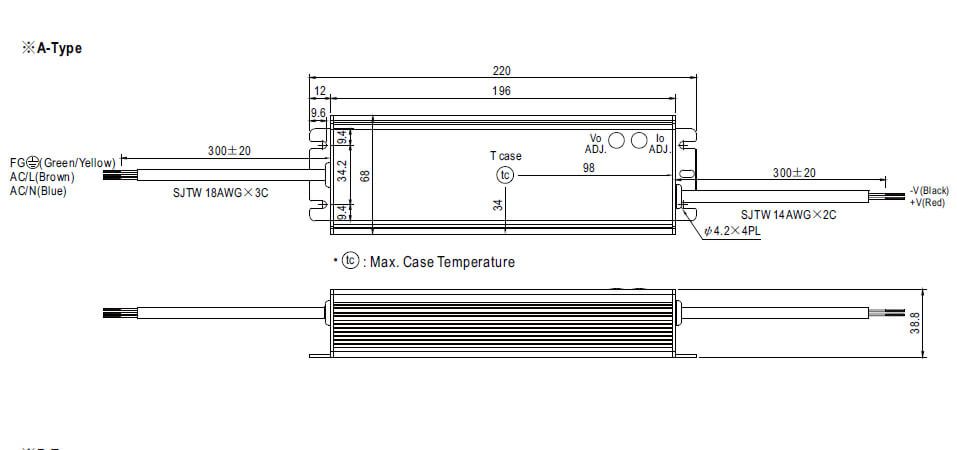

Dimension 220mm x 68mm x 38,8mm (H x W x D)

On request, we also offer the type D or other voltage ranges.
