Meanwell ELG-150 Power Supply

Product information "Meanwell ELG-150 Power Supply"

Meanwell ELG-150-xx"Type"

The Meanwell power supply ELG-150 Series includes a constant voltage source as well as a constant current source.
It has an output power of 150 watts and output voltages from 12V to 54V so that various LED applications such as road-, indoor-, and architectural- lighting can be realized.
With its metal housing and IP65 / IP67 the use for indoor and outdoor applications in the temperature ranges from -40 ° C to 85 ° C is possible.
Depending on the type the connected LED illumination can be dimmed via 0-10V, PWM signal, potentiometer or DALI interface.

ELG150 features (depends on type):

  • 5 Years warranty
  • Universal input voltage from 100V up to 305V AC
  • High efficiency up to 90%
  • Built-in active PFC function
  • Protections: over -/load, -/voltage, -/temperature
  • Type "?HL?" for use in Class I, Division 2hazardous (Classified) location
  • IP65/IP67 for indoor or outdoor installations
  • Standby power consumption < 0.5W
  • Compliance to worldwide safety regulations for lighting

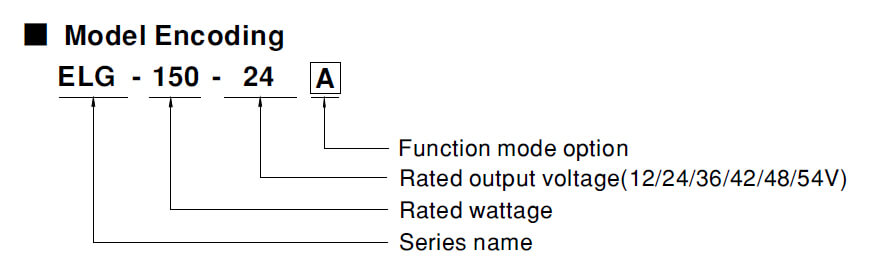

Type designation ELG 150 series

Performance ELG-150 Typ -xx"-"(Blank):

  • Current and voltage output fixed
  • IP67 protection. For indoor -and outdoor applications

Performance ELG-150 Typ -xx"A":

  • Output voltage and current level adjustable through built-in-potentiometer
  • IP65 design for indoor or outdoor installations
  • be adjusted through internal potential meter

Performance ELG-150 Typ -xx"B":

  • Constant current control regulation about 1-10V or PWM entrance, as well as external potentiometer
  • IP67 protection. For indoor -and outdoor applications

Performance ELG-150 Typ -xx"DA":

  • Lightning control via DALI interface
  • IP67 protection. For indoor -and outdoor applications

Technical data Meanwell ELG-150 Power Supply:

Input100 - 305 VAC  / 142 - 431 VDC 47 - 63 Hz
OutputDepending on type, see data sheet
Rated Power84 - 151,2 W (voltage depending, see datasheet)
SeriesELG
Typical lifetime> 50.000 h

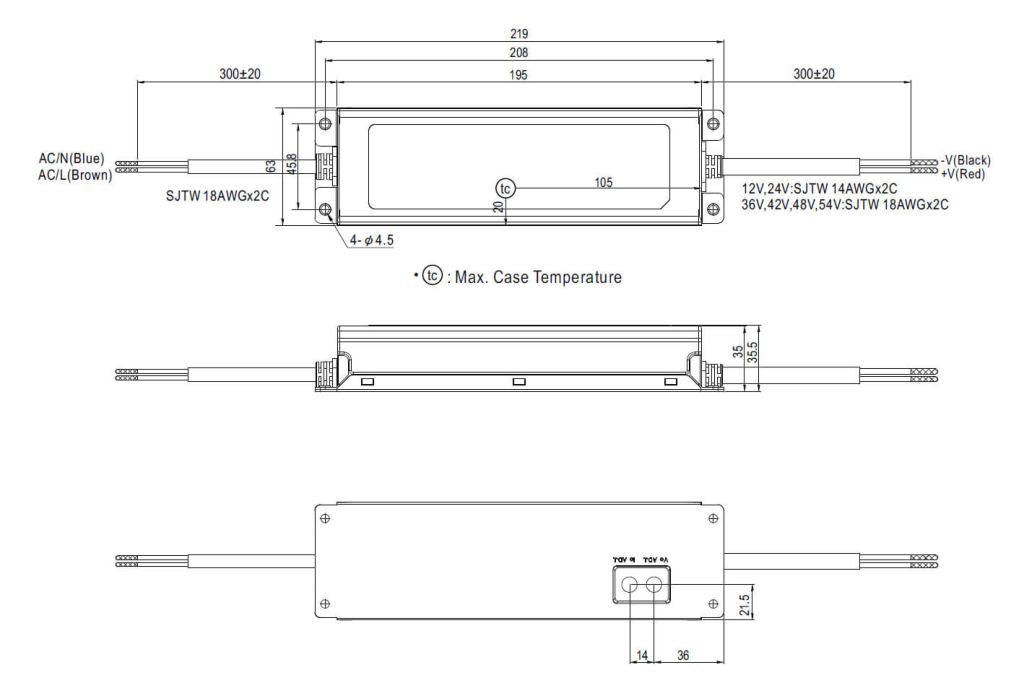

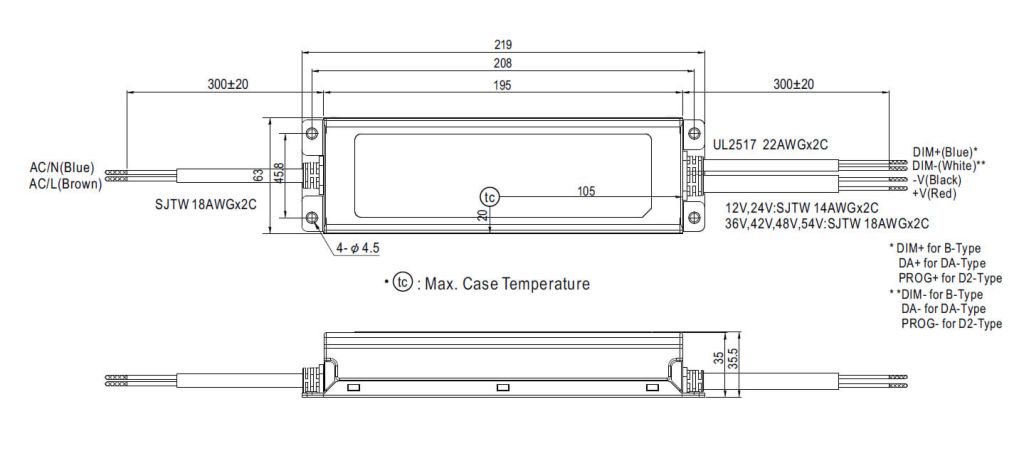

Dimensions (LxWxH)219mm x 63mm x 35,5mm

For further technical data, please refer to the data sheet (in tab "DOWNLOADS").
On request, we also offer type and voltage ranges.

Properties "Meanwell ELG-150 Power Supply"
#Kategoriefilter: LED-Trafos- alles mit CV, LED-Treiber-alles mit CC
·Application/IP-Code: IP65/67 (Outdoor)
·Constant Current: 1,4A, 1,6A, 1,75A, 2,1A, 2,4A, 4,0A
·Dimmable/Control: 1..10V, DALI, PWM
·Meanwell Series: ELG
·Power range: 100 - 250 W
·Constant Voltage: 12V, 24V, 48V
Manufacturer "MEAN WELL"

Mean Well is a proven manufacturer of powerful and reliable switching power supplies and LED transformers. Mean Well power supplies have been tried and tested in many different ways. The name guarantees quality. The Meanwell HLG series and Meanwell ELG series in particular have become very popular in the LED industry

Related links of the manufacturer

Datasheet Meanwell ELG-150
Meanwell Installation Manual
